2012 Yamaha YZ450F Shift Cam Fork OEM Parts Diagram

Submodel YZ450FB - YZ450FBW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

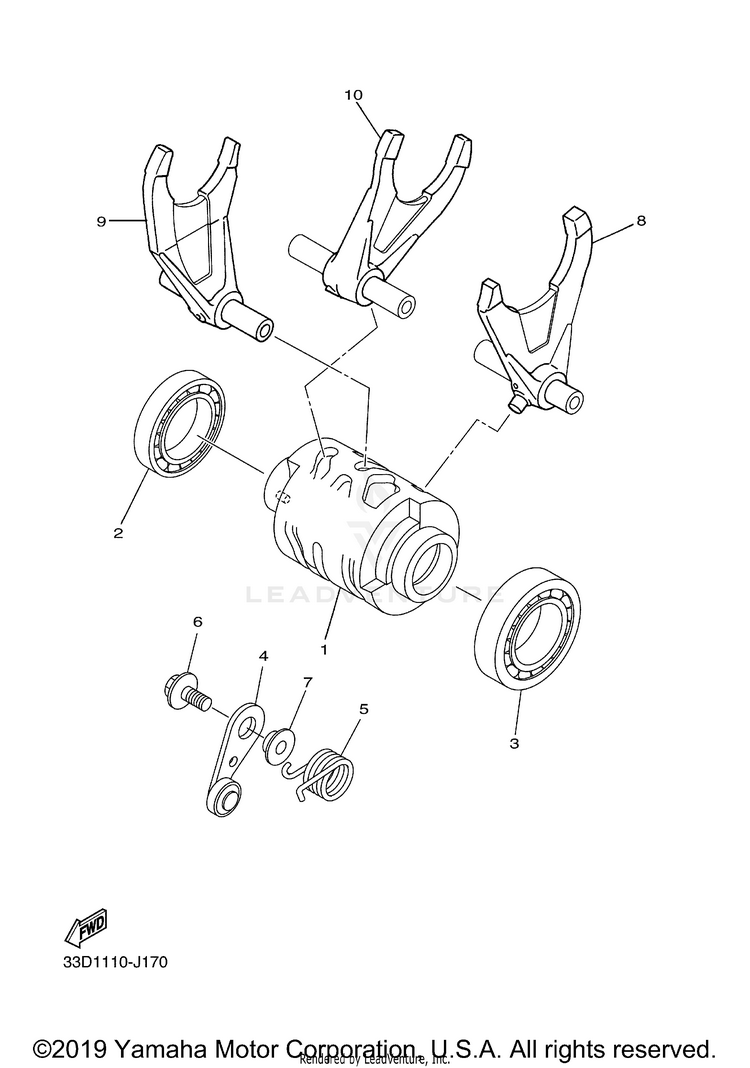

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
133D-18541-10-00CAM, SHIFT$110.99$86.57Usually ships in 7-10 business days
293306-90409-00BEARING$39.99$31.1910+ In-Stock
393306-80502-00BEARING$42.99$33.5310+ In-Stock
433D-18140-00-00STOPPER LEVER ASSY$18.99$15.57Usually ships in 7-10 business days
590508-26021-00SPRING, TORSION$6.49$5.063 In-Stock
690159-06028-00

(replaces part #
90159-06027-00)

SCREW, WITH WASHER$8.49$6.623 In-Stock
733D-18175-00-00SPACER$16.49$12.863 In-Stock
833D-18501-10-00FORK, SHIFT 1$129.99$101.39Usually ships in 7-10 business days
933D-18502-10-00FORK, SHIFT 2$151.99$118.55Usually ships in 7-10 business days
105TG-18503-00-00FORK, SHIFT 3$112.99$88.134 In-Stock
