2013 Yamaha YFZ 450 Clutch OEM Parts Diagram

Submodel YFZ450 - YFZ45DB - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

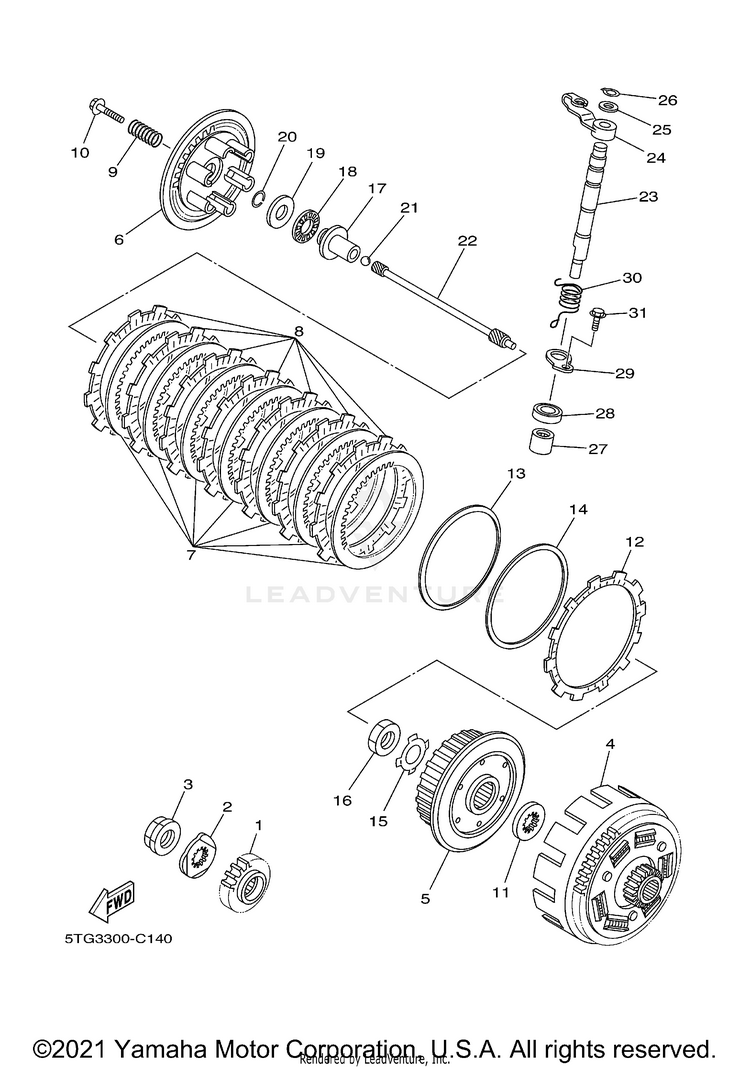

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TG-16111-00-00GEAR, PRIMARY DRIVE$91.99$71.75Usually ships in 7-10 business days
290215-21003-00WASHER, LOCK$7.49$6.4310+ In-Stock
390179-20001-00NUT$19.49$15.2010+ In-Stock
45D3-16150-00-00PRIMARY DRIVEN GEAR COMP.$395.99$311.634 In-Stock
55TA-16371-20-00

(replaces part #
5TA-16371-10-00)

BOSS, CLUTCH$151.99$118.5510+ In-Stock
65TG-16351-00-00PLATE, PRESSURE 1$93.99$73.315 In-Stock
74X7-16325-10-00

(replaces part #
4X7-16325-00-00)

PLATE, CLUTCH 2$17.99$16.0310+ In-Stock
85TA-16321-00-00PLATE, FRICTION$28.99$22.6110+ In-Stock
990501-237L0-00SPRING, COMPRESSION$8.49$6.6210+ In-Stock
1090159-06029-00SCREW, WITH WASHER$9.49$7.4010+ In-Stock
112JN-16154-00-00PLATE, THRUST 1$22.99$17.932 In-Stock
125TG-16331-00-00PLATE, FRICTION 2$17.99$14.034 In-Stock
135JG-16383-00-00SPRING, CLUTCH BOSS$47.99$37.439 In-Stock
145JG-16384-00-00PLATE, SEAT$46.99$36.655 In-Stock
1590215-20005-00WASHER, LOCK$8.49$6.6210+ In-Stock
1690170-20327-00NUT$20.99$16.3710+ In-Stock
175TG-16356-00-00ROD, PUSH 1$47.99$37.437 In-Stock
1893340-21505-00BEARING$20.99$16.3710+ In-Stock
1990201-125L6-00WASHER, PLATE$10.49$8.184 In-Stock
2093440-10085-00CIRCLIP$9.49$7.4010+ In-Stock
2193515-32029-00BALL$4.55$3.9110+ In-Stock
225TG-16357-00-00ROD, PUSH 2$47.99$37.432 In-Stock
235TG-16382-10-00AXLE, PUSH LEVER$119.99$93.59Usually ships in 7-10 business days
245TG-16342-00-00LEVER, PUSH$35.99$28.078 In-Stock
2590201-10032-00WASHER, PLATE$1.25$1.0810+ In-Stock
2699009-10400-00CIRCLIP$5.49$4.2810+ In-Stock
2793317-11287-00BEARING$25.99$20.2710+ In-Stock
2893102-12224-00OIL SEAL$11.49$8.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$3.99$2.9910+ In-Stock
295D3-16384-00-00PLATE, SEAT$8.49$6.62
3090508-16054-00SPRING, TORSION$4.80$4.131 In-Stock
3195022-06012-00BOLT, FLANGE$3.55$3.0510+ In-Stock
