2013 Yamaha YFZ 450 Crankshaft Piston OEM Parts Diagram

Submodel YFZ450 - YFZ45DB - 2013

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

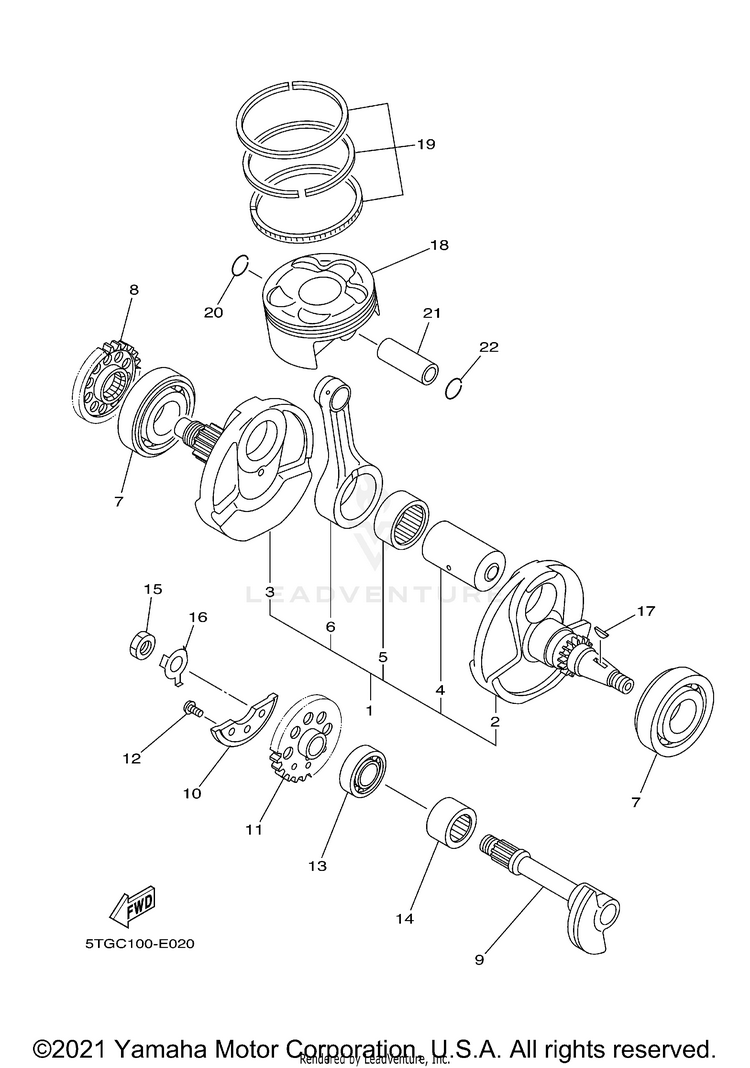

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TG-11400-31-00CRANKSHAFT ASSY$539.99$482.275 In-Stock
25TG-11412-30-00CRANK 1$246.99$192.65Usually ships in 7-10 business days
35TG-11422-30-00CRANK 2$207.99$164.95Usually ships in 7-10 business days
45TG-11681-01-00PIN, CRANK 1$51.99$40.55Usually ships in 7-10 business days
593310-63458-00BEARING$125.99$98.273 In-Stock
65D3-11651-00-00ROD, CONNECTING$128.99$100.61Usually ships in 7-10 business days
793306-30633-00BEARING$110.99$86.5710+ In-Stock
85TA-11536-00-00GEAR, DRIVE$126.99$99.05Usually ships in 7-10 business days
95TA-11455-11-00SHAFT 1$433.99$338.512 In-Stock
105BE-11454-00-00WEIGHT 1$58.99$46.01Usually ships in 7-10 business days
115TA-11531-01-00GEAR, BALANCE WEIGHT$151.99$118.55Not Shipping
1290149-06084-00SCREW$9.49$7.404 In-Stock
1393306-20335-00BEARING$38.99$30.4110+ In-Stock
1493311-62574-00BEARING$68.99$53.8110+ In-Stock
1590170-14171-00NUT$10.49$8.183 In-Stock
1690215-14287-00WASHER, LOCK$6.49$5.0610+ In-Stock
1790280-03006-00KEY, WOODRUFF$9.49$7.4010+ In-Stock
185TG-11631-12-00

(replaces part #
5TG-11631-11-00)

PISTON (STD)$195.99$152.8710+ In-Stock
195TG-11603-00-00PISTON RING SET (STD)$63.99$49.9110+ In-Stock
2093450-22027-00CIRCLIP$8.49$6.6210+ In-Stock
215TG-11633-10-00PIN, PISTON$34.99$27.2910+ In-Stock
2293450-22027-00CIRCLIP$8.49$6.6210+ In-Stock
