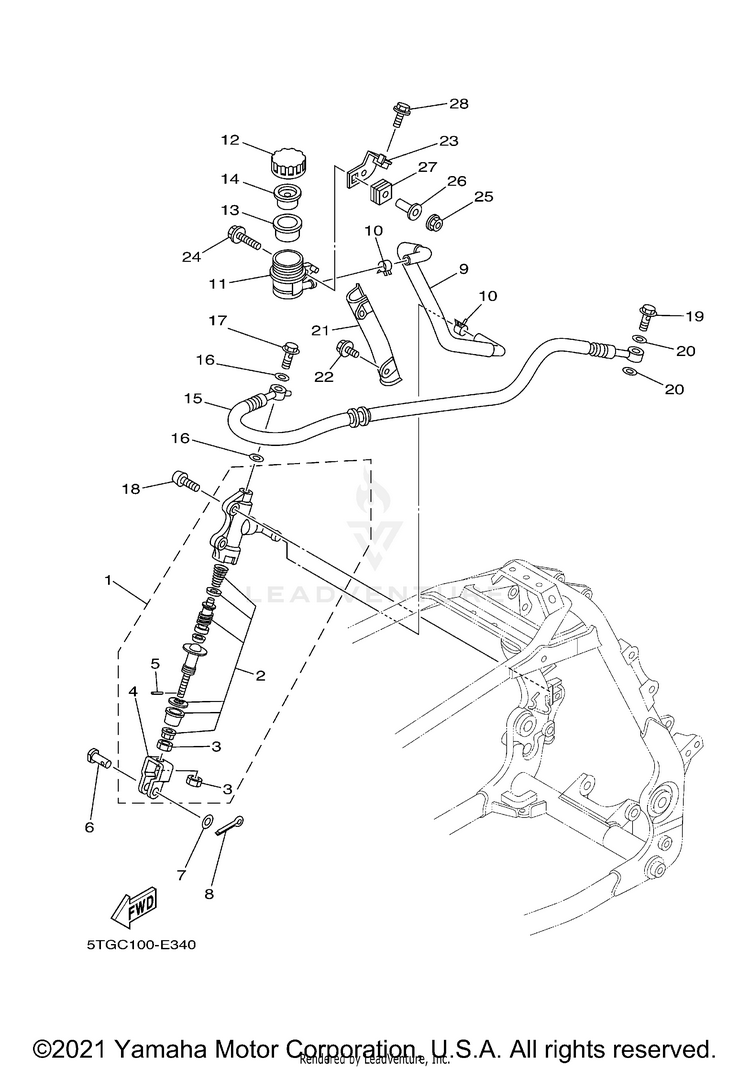

REAR MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TG-2580E-20-00REAR MASTER CYLINDER ASSY$172.99$134.934 In-Stock
25TG-W0042-50-00CYLINDER KIT, MASTER$78.99$61.613 In-Stock
395317-08700-00

(replaces part #
4SS-27218-00-00)

NUT$10.49$8.185 In-Stock
42YK-27222-00-00JOINT$23.99$18.717 In-Stock
53KW-27234-00-00PIN, BRAKE ROD$8.49$6.622 In-Stock
690240-08005-00PIN, CLEVIS$9.49$7.407 In-Stock
790201-08083-00WASHER, PLATE$10.49$8.1810+ In-Stock
891490-16020-00

(replaces part #
91401-16012-00)

PIN, COTTER$6.99$5.456 In-Stock
95TG-25895-10-00HOSE, RESERVOIR$44.99$36.891 In-Stock
1090467-11044-00CLIP$9.49$7.4010+ In-Stock
115TG-25894-00-00TANK, RESERVOIR$24.99$19.492 In-Stock
123XP-25852-50-00CAP, RESERVOIR$24.99$19.494 In-Stock
132VN-25854-00-00DIAPHRAGM, RESERVOIR$26.99$21.054 In-Stock
142VN-25855-00-00BUSH, DIAPHRAGM$11.99$9.3510+ In-Stock
155TG-25874-30-00HOSE, BRAKE$65.99$51.47Usually ships in 7-10 business days
1690201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1790401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
1892012-08025-00BOLT, BUTTON HEAD$8.49$6.629 In-Stock
1990401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
2090201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
215TG-2587A-00-00HOLDER, BRAKE HOSE$49.99$40.99Usually ships in 7-10 business days
2295022-06010-00BOLT, FLANGE$6.49$5.066 In-Stock
235TG-21228-10-00BRACKET, RESERVE TANK$8.49$6.621 In-Stock
2490105-05331-00BOLT, WASHER BASED$6.49$5.84Usually ships in 7-10 business days
2595607-05200-00

(replaces part #
95602-05200-00)

NUT, U FLANGE$10.49$8.183 In-Stock
2690387-05016-00COLLAR$8.49$6.62Not Shipping
2790480-10011-00GROMMET$6.49$5.06Not Shipping
2895817-06012-00

(replaces part #
95802-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
