STEERING HANDLE CABLE

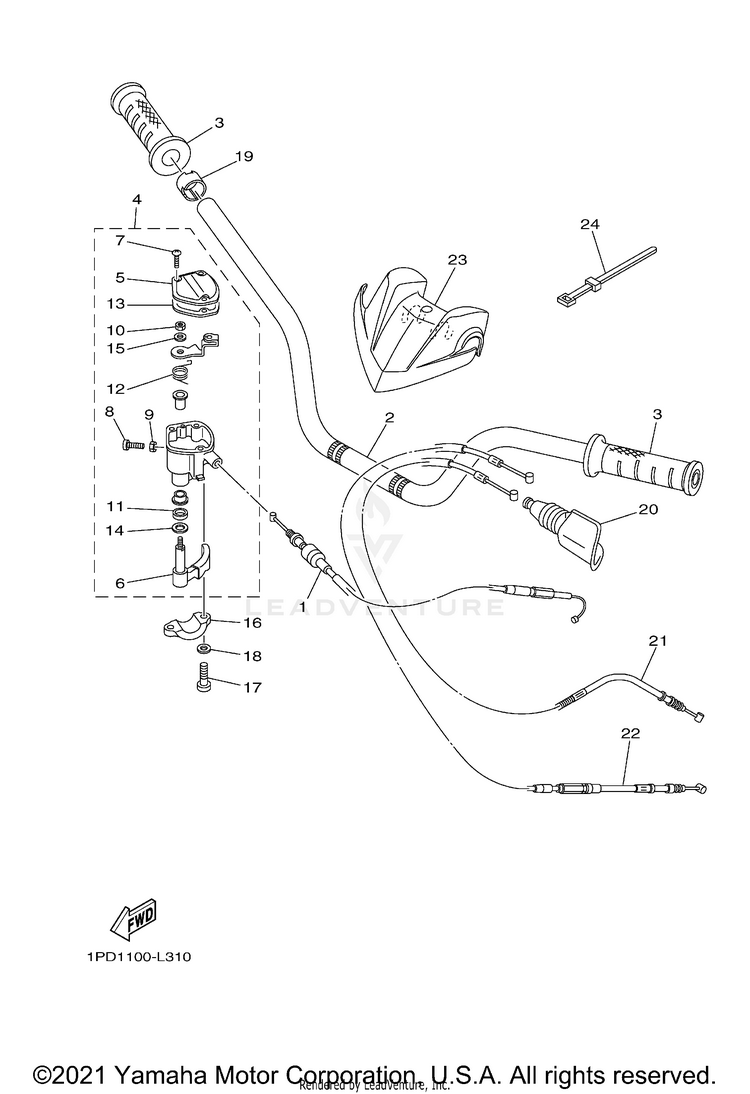

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11PD-26311-00-00CABLE, THROTTLE 1$34.99$27.292 In-Stock
25TG-26111-30-00HANDLEBAR$78.99$61.61Usually ships in 7-10 business days
35LP-26241-00-00GRIP$26.99$21.0510+ In-Stock
44KB-26250-22-00

(replaces part #
4KB-26250-21-00)

THROTTLE LEVER ASSY$176.99$138.0510+ In-Stock
54KB-2628F-20-00CAP, GEAR$39.99$32.79Usually ships in 7-10 business days
61NV-2625G-02-00

(replaces part #
1NV-2625G-01-00)

LEVER, THROTTLE$65.99$51.474 In-Stock
74KB-2632G-00-00SCREW$3.85$3.314 In-Stock
84KB-26256-00-00SCREW, GRIP END$3.20$2.88Usually ships in 7-10 business days
995617-05100-00

(replaces part #
95602-05100-00)

NUT, U$10.49$8.1810+ In-Stock
104KB-26258-00-00NUT, LOCK$3.05$2.74Usually ships in 7-10 business days
1193104-09025-00OIL SEAL$8.49$6.623 In-Stock
121NV-26304-00-00SPRING$12.99$10.133 In-Stock
134KB-2628G-00-00GASKET$14.49$11.301 In-Stock
141NV-26129-00-00WASHER$7.49$5.842 In-Stock
1553L-83909-00-00

(replaces part #
1NV-26398-00-00)

WASHER, SPECIAL$4.55$3.91Not Shipping
161S3-82913-00-00HOLDER, LEVER LOWER 1$15.49$12.085 In-Stock
1798517-05020-00

(replaces part #
98502-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
1892990-05100-00

(replaces part #
92902-05100-00)

WASHER, SPRING-$0.8310+ In-Stock
191UY-26259-00-00COLLAR$21.99$17.152 In-Stock
2031A-26372-00-00COVER, HANDLE LEVER 1$33.99$27.87Usually ships in 7-10 business days
211PD-26335-00-00CABLE, CLUTCH$47.99$37.434 In-Stock
225TG-26341-20-00WIRE, BRAKE 1$71.99$56.15Usually ships in 7-10 business days
234D3-26124-00-00PROTECTOR, HANDLEBAR$31.99$24.952 In-Stock
24437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
