ELECTRICAL 3

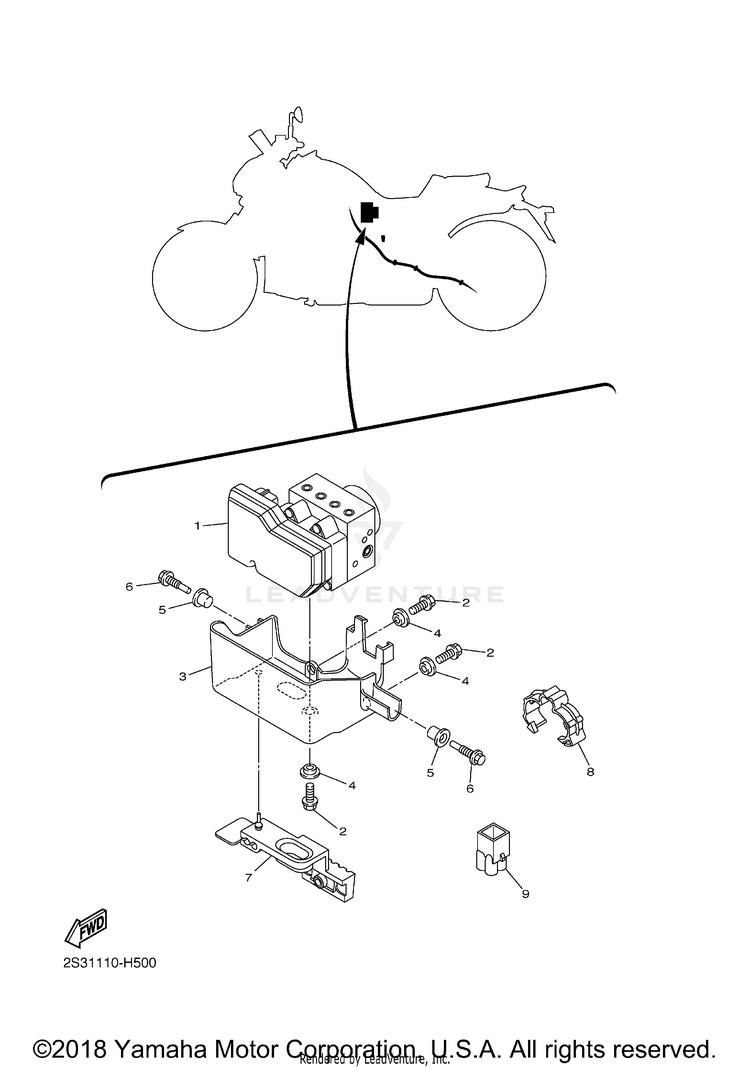

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-85930-18-00

(replaces part #
2S3-85930-19-00)

HYDRAULIC UNIT ASSY$1,106.99$965.39Usually ships in 7-10 business days
295817-06012-00

(replaces part #
95802-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
32S3-2160E-00-00BOX$33.99$27.87Usually ships in 7-10 business days
490387-06130-00COLLAR$10.49$8.186 In-Stock
52S3-82176-00-00DAMPER$4.60$4.14Usually ships in 7-10 business days
690109-08197-00BOLT$7.49$6.74Usually ships in 7-10 business days
72S3-85823-00-00DAMPER$24.99$20.49Usually ships in 7-10 business days
890464-12013-00CLAMP$9.49$8.54Usually ships in 7-10 business days
93YA-82378-00-00CONNECTOR$11.49$9.42Usually ships in 7-10 business days
