2015 Yamaha V-Max Front Brake Caliper OEM Parts Diagram

Submodel VMAX - VMX17FCR - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

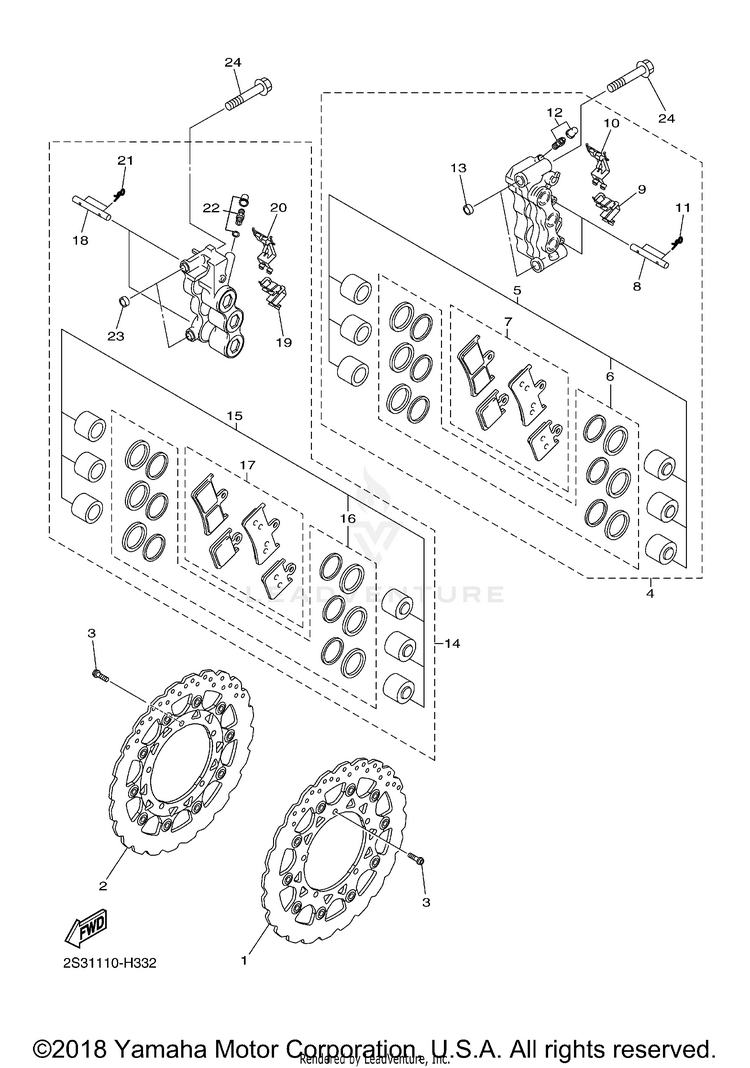

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-2581T-00-00DISC BRAKE ASSY$395.99$308.87Usually ships in 7-10 business days
22S3-2581U-00-00DISC BRAKE ASSY (RIGHT)$411.99$321.35Usually ships in 7-10 business days
390149-06133-00

(replaces part #
90149-06132-00)

SCREW$8.49$7.64Usually ships in 7-10 business days
44C8-2580T-10-00CALIPER ASSY (LEFT)$669.99$560.61Usually ships in 7-10 business days
54C8-25802-00-00PISTON ASSY, CALIPER$221.99$173.15Usually ships in 7-10 business days
64C8-25803-00-00CALIPER SEAL KIT$53.99$42.11Usually ships in 7-10 business days
74C8-25805-00-00BRAKE PAD KIT$59.99$50.48Usually ships in 7-10 business days
84SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
94C8-25919-00-00SUPPORT, PAD$8.49$7.64Usually ships in 7-10 business days
102S3-25919-10-00SUPPORT, PAD$30.99$25.41Usually ships in 7-10 business days
113GM-25925-00-00CLIP$12.99$10.136 In-Stock
121J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
135VY-2583B-00-00PIN, KNOCK$18.99$15.57Usually ships in 7-10 business days
142S3-2580U-00-00CALIPER ASSY (RIGHT)$525.99$458.50Usually ships in 7-10 business days
154C8-25802-00-00

(replaces part #
4C8-W0057-00-00)

PISTON ASSY, CALIPER$221.99$173.15Usually ships in 7-10 business days
164C8-25803-00-00

(replaces part #
4C8-W0047-00-00)

CALIPER SEAL KIT$53.99$42.11Usually ships in 7-10 business days
174C8-25805-00-00

(replaces part #
4C8-W0045-00-00)

BRAKE PAD KIT$59.99$50.48Usually ships in 7-10 business days
184SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
194C8-25919-00-00SUPPORT, PAD$8.49$7.64Usually ships in 7-10 business days
202S3-25919-10-00SUPPORT, PAD$30.99$25.41Usually ships in 7-10 business days
213GM-25925-00-00CLIP$12.99$10.136 In-Stock
225VS-W0048-00-00BLEED SCREW KIT$51.99$40.55Usually ships in 7-10 business days
235VY-2583B-00-00PIN, KNOCK$18.99$15.57Usually ships in 7-10 business days
2490105-10397-00BOLT, FLANGE$13.49$11.06Usually ships in 7-10 business days
