2015 Yamaha V-Max Side Cover 2 OEM Parts Diagram

Submodel VMAX - VMX17FCR - 2015

Shop Aftermarket Parts

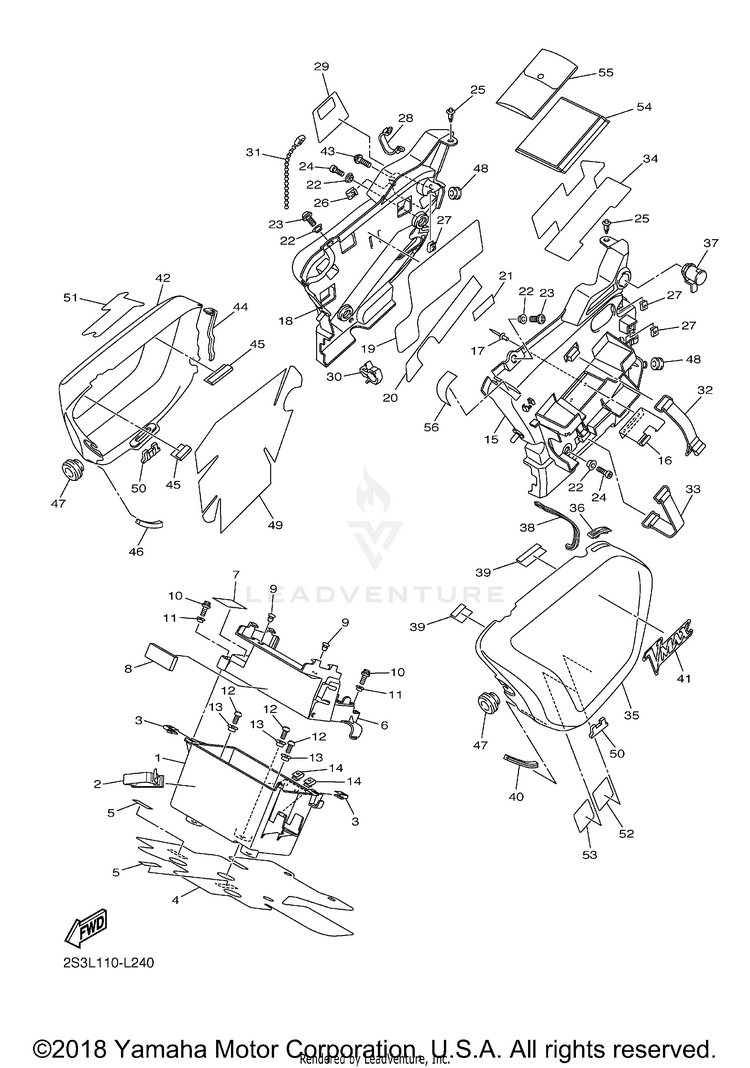

SIDE COVER 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-2177G-00-00BOX, BATTERY$52.99$41.33Usually ships in 7-10 business days
290464-13012-00CLAMP$5.49$4.94Usually ships in 7-10 business days
390183-050A6-00

(replaces part #
90183-05076-00)

NUT, SPRING$2.95$2.547 In-Stock
42S3-2117G-01-00PROTECTOR$61.99$48.35Usually ships in 7-10 business days
52S3-21732-00-00SEAL 1$2.60$2.34Usually ships in 7-10 business days
62S3-8212B-00-00BOX, BATTERY 1$31.99$26.23Usually ships in 7-10 business days
75JW-2164K-00-00PATCH 5$2.30$2.07Usually ships in 7-10 business days
82S3-21638-00-00DAMPER 1$13.49$11.06Usually ships in 7-10 business days
990338-07180-00

(replaces part #
90338-06018-00)

PLUG$8.49$6.628 In-Stock
1090110-05028-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
1190387-05035-00COLLAR$8.49$6.62
1292012-06012-00

(replaces part #
90111-06065-00)

BOLT, BUTTON HEAD$4.70$4.0410+ In-Stock
1390387-06130-00COLLAR$10.49$8.186 In-Stock
1490183-04039-00NUT, spring$8.49$7.64Usually ships in 7-10 business days
152S3-2172A-00-00PANEL 1$33.99$27.87Usually ships in 7-10 business days
162S3-2175R-00-00HOOK, BAND$16.99$13.93Usually ships in 7-10 business days
1790267-40076-00RIVET, BLIND$9.49$7.4010+ In-Stock
182S3-2172F-00-00PANEL 2$31.99$26.23Usually ships in 7-10 business days
192S3-2414H-00-00DAMPER, PLATE 1$6.49$5.84Usually ships in 7-10 business days
202S3-24737-00-00DAMPER, SEAT$2.75$2.48Usually ships in 7-10 business days
217TD-14747-10-00DAMPER, MUFFLER$0.85$0.76Usually ships in 7-10 business days
2290387-06040-00COLLAR$12.49$10.24Usually ships in 7-10 business days
2390111-06119-00BOLT, HEX. SOCKET BUTTON$9.49$8.54Usually ships in 7-10 business days
2491314-06020-00

(replaces part #
90110-06189-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
2590269-06008-00RIVET$9.49$7.4010+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$4.9910+ In-Stock
2690183-06069-00NUT, SPRING$7.49$5.8410+ In-Stock
2790183-050A6-00

(replaces part #
90183-05076-00)

NUT, SPRING$2.95$2.547 In-Stock
2890464-24230-00CLAMP$8.49$7.64Usually ships in 7-10 business days
292S3-21652-00-00PROTECTOR$3.85$3.46Usually ships in 7-10 business days
3090464-15157-00CLAMP$9.49$7.407 In-Stock
3180L-26397-00-00BAND$8.49$7.64Usually ships in 7-10 business days
323TJ-82131-00-00BAND, BATTERY$24.99$20.491 In-Stock
3326L-82131-00-00

(replaces part #
122-82131-00-00)

BAND, BATTERY | FOR CALIFORNIA$8.49$6.627 In-Stock
342S3-21746-00-00DAMPER$4.85$4.36Usually ships in 7-10 business days
352S3-21731-10-00COVER, SIDE 3$413.99$342.62Usually ships in 7-10 business days
362S3-2171P-00-00CAP, SLIDER$17.49$14.34Usually ships in 7-10 business days
372S3-21708-01-00

(replaces part #
2S3-21708-00-00)

LOCK ASSY 2$92.99$72.53Usually ships in 7-10 business days
382S3-24785-00-00MOLD, SEAT$44.99$36.89Usually ships in 7-10 business days
392AL-84553-00-00DAMPER$12.99$10.65Usually ships in 7-10 business days
402S3-28348-00-00MOLE 4$7.49$6.74Usually ships in 7-10 business days
412S3-2173D-01-00EMBLEM 3D$107.99$84.23Usually ships in 7-10 business days
422S3-21741-10-00COVER, SIDE 4$312.99$259.70Usually ships in 7-10 business days
4390111-06038-00BOLT, HEX. SOCKET BUTTON$4.65$4.0010+ In-Stock
442S3-2478K-00-00MOLD 2$28.99$23.77Usually ships in 7-10 business days
452AL-84553-00-00DAMPER$12.99$10.65Usually ships in 7-10 business days
462S3-28348-00-00MOLE 4$7.49$6.74Usually ships in 7-10 business days
472S3-21717-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
4890480-12320-00GROMMET$9.49$7.4010+ In-Stock
492S3-24724-00-00DAMPER, SEAT$11.49$9.42Usually ships in 7-10 business days
502S3-24665-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
512S3-2174D-01-00EMBLEM 3D$107.99$84.23Usually ships in 7-10 business days
525VX-21684-00-00PLATE, ROUTING | FOR CALIFORNIA$10.49$8.60Usually ships in 7-10 business days
534B5-21686-01-00

(replaces part #
4B5-21686-00-00)

PLATE, ROUTING 2 | FOR CALIFORNIA$6.49$5.84Usually ships in 7-10 business days
542S3-28100-00-00TOOL KIT$60.99$47.57Usually ships in 7-10 business days
552S3-28110-00-00TOOL KIT, 2$68.99$53.81Usually ships in 7-10 business days
562C0-21567-00-00TAPE, 2$3.55$3.20Usually ships in 7-10 business days
