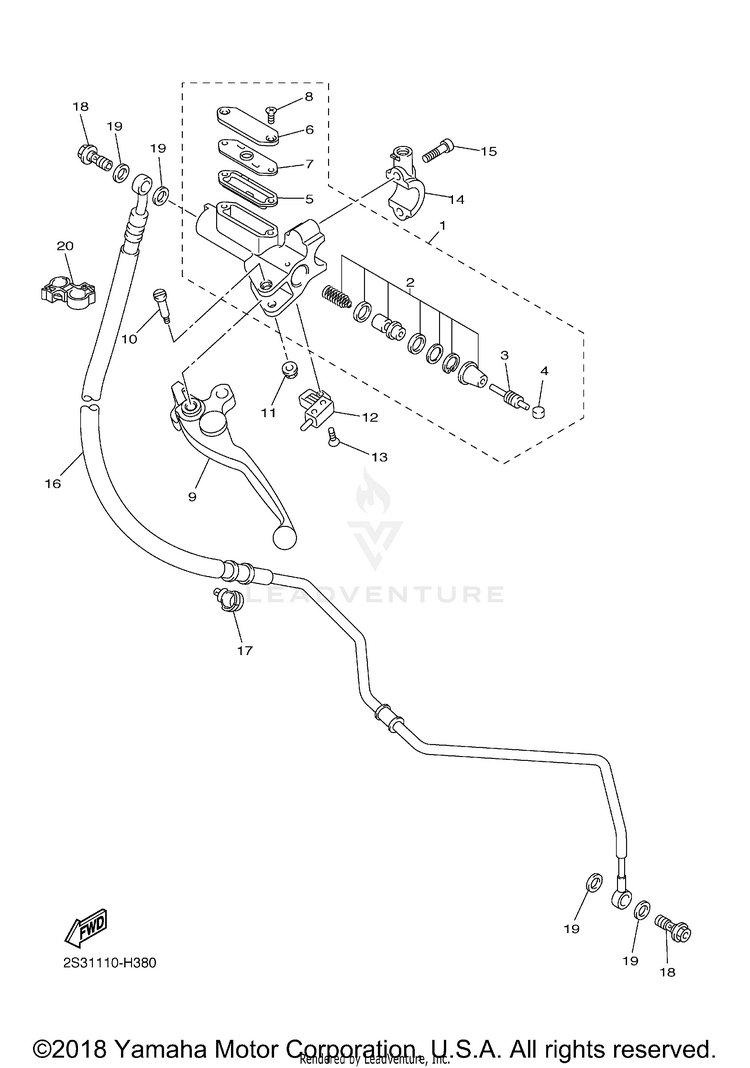

2015 Yamaha V-Max Front Master Cylinder 2 OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2S3-W2645-00-00	MASTER CYLINDER SUB ASSY	$261.99	$204.35	Usually ships in 7-10 business days
2	5JW-W0099-00-00	CYLINDER KIT, MASTER (CLUTCH)	$55.99	$43.67	Usually ships in 7-10 business days
3	3GM-26464-00-00	ROD, PUSH	$19.99	$16.39	Usually ships in 7-10 business days
4	3GM-26455-00-00	BUSH	$27.99	$21.83	2 In-Stock
5	5YU-25854-50-00	DIAPHRAGM, RESERVOIR	$14.49	$11.30	2 In-Stock
6	5YU-25852-50-00	CAP, RESERVOIR	$36.99	$30.33	Usually ships in 7-10 business days
7	5YU-25855-50-00	BUSH, DIAPHRAGM	$11.99	$9.83	Usually ships in 7-10 business days
8	98707-04012-00	SCREW, FLAT HEAD	-	$1.94	10+ In-Stock
9	5YU-83912-11-00	LEVER 1	$112.99	$88.13	Usually ships in 7-10 business days
10	3FV-2589F-00-00	BOLT, LEVER	$17.99	$14.75	1 In-Stock
11	95707-06500-00	NUT, FLANGE	$1.00	$0.99	10+ In-Stock
12	3GM-83980-00-00	FRONT STOP SWITCH ASSY	$53.99	$42.11	Usually ships in 7-10 business days
13	98707-04016-00	SCREW, FLAT HEAD	$9.49	$7.40	4 In-Stock
14	2S3-26393-00-00	HOLDER	$43.99	$36.07	Usually ships in 7-10 business days
15	5VS-26332-00-00	BOLT	$4.95	$4.26	4 In-Stock
16	2S3-26470-00-00	HOSE, CLUTCH	$136.99	$106.85	Usually ships in 7-10 business days
17	90464-18002-00	CLAMP	$9.49	$7.40	9 In-Stock
18	90401-10172-00	BOLT, UNION	$6.49	$5.06	10+ In-Stock
19	90430-10005-00	GASKET	$9.49	$7.40	10+ In-Stock
20	90464-16015-00	CLAMP	$4.80	$4.32	Usually ships in 7-10 business days
