2015 Yamaha Viking 700 FI 4x4 Guard OEM Parts Diagram

Submodel VIKING EPS HUNTER - YXM700PHFH - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

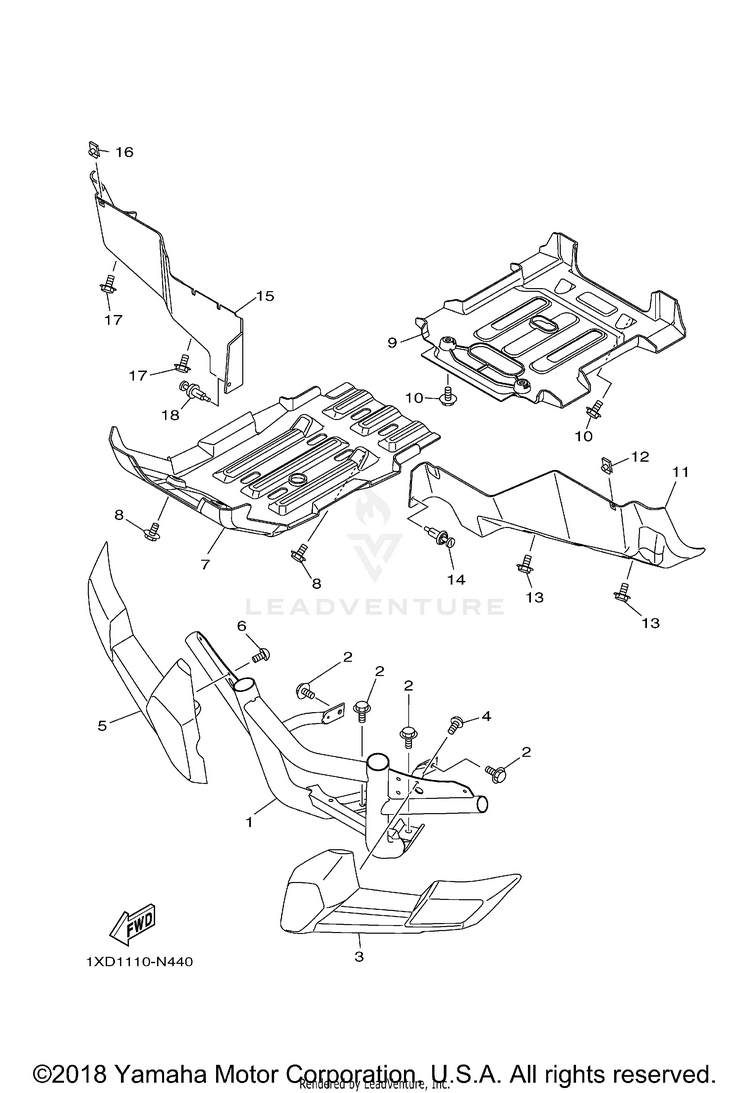

GUARD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11XD-F845N-01-00

(replaces part #
1XD-F845N-00-00)

BAR, CARRY FRONT$289.99$226.19Usually ships in 7-10 business days
295812-10016-00BOLT, FLANGE$10.49$8.1810+ In-Stock
31XD-F842M-02-00

(replaces part #
1XD-F842M-00-00)

COVER 1$58.99$46.01Usually ships in 7-10 business days
490167-06800-00SCREW, TAPPING-$1.0410+ In-Stock
51XD-F842N-01-00

(replaces part #
1XD-F842N-00-00)

COVER 2-$50.99Usually ships in 7-10 business days
690167-06800-00SCREW, TAPPING-$1.0410+ In-Stock
71XD-F8385-02-00

(replaces part #
1XD-F8385-00-00)

COVER, LOWER$64.99$60.69Usually ships in 7-10 business days
890109-06202-00BOLT$3.10$2.6710+ In-Stock
91XD-F8395-00-00COVER, UNDER 2$141.99$110.75Usually ships in 7-10 business days
1090109-06202-00BOLT$3.10$2.6710+ In-Stock
111XD-F2361-00-00GUARD 1$32.99$27.05Usually ships in 7-10 business days
1290183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
1390109-06202-00BOLT$3.10$2.6710+ In-Stock
1490269-06800-00RIVET$1.70$1.4610+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
151XD-F2362-00-00GUARD 2$64.99$50.691 In-Stock
1690183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
1790109-06202-00BOLT$3.10$2.6710+ In-Stock
1890269-06800-00RIVET$1.70$1.4610+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
