2015 Yamaha Viking 700 FI 4x4 Side Cover OEM Parts Diagram

Submodel VIKING EPS HUNTER - YXM700PHFH - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

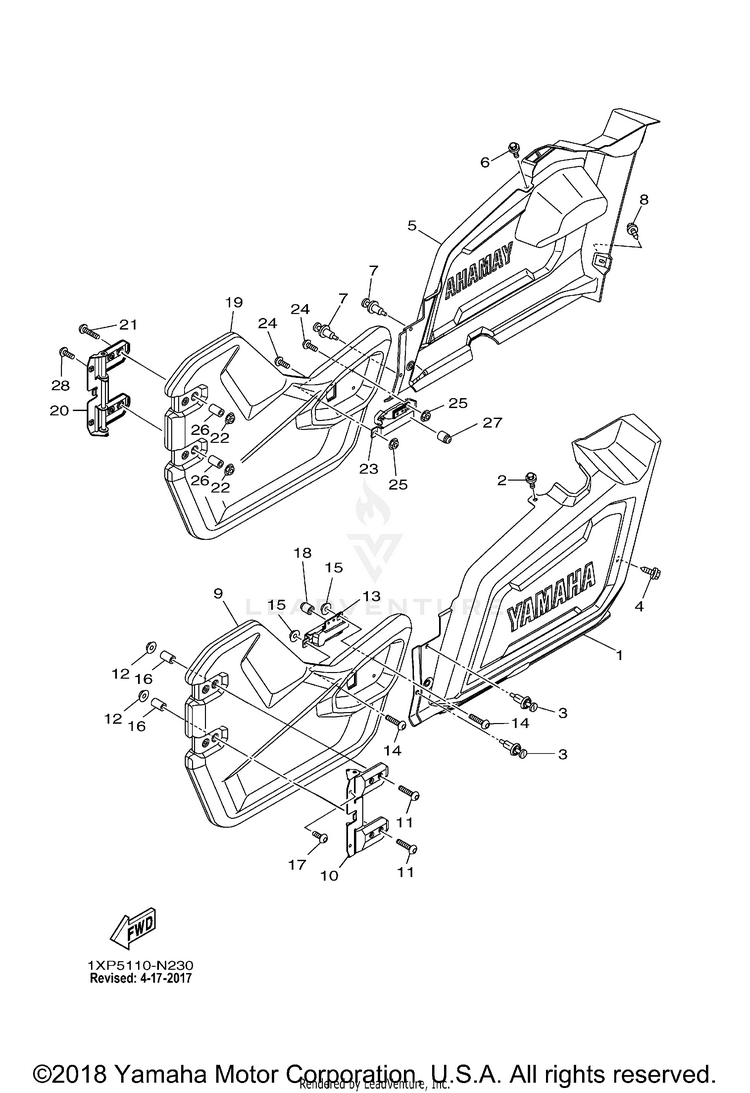

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11XD-F1721-00-00COVER, SIDE 2$33.99$28.23Usually ships in 7-10 business days
290119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
390269-07805-00

(replaces part #
90269-07803-00)

RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
490119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
51XD-F1731-00-00COVER, SIDE 3-$33.231 In-Stock
690119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
790269-07805-00

(replaces part #
90269-07803-00)

RIVET$1.75$1.5010+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$4.9910+ In-Stock
890119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
91XD-K8557-11-00

(replaces part #
1XD-K8557-10-00)

PNL., DOOR FR. LH$80.99$63.17Usually ships in 7-10 business days
101XD-F4772-00-00HINGE ASSY$49.99$40.99Usually ships in 7-10 business days
1190109-06897-00BOLT$0.95$0.86Usually ships in 7-10 business days
1295604-06200-00

(replaces part #
95602-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
131XD-K7171-10-00BODY, LATCH 1$77.99$60.834 In-Stock
1490111-06086-00BOLT, HEX. SOCKET BUTTON$6.49$5.064 In-Stock
1595604-06200-00

(replaces part #
95602-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
1690387-06304-00COLLAR$3.20$2.88Usually ships in 7-10 business days
175B4-F1722-00-00BOLT 2$1.50$1.357 In-Stock
181XD-F8378-00-00PAD$3.60$3.105 In-Stock
191XD-K8557-11-00

(replaces part #
1XD-K8557-10-00)

PNL., DOOR FR. LH$80.99$63.17Usually ships in 7-10 business days
2190109-06897-00BOLT$0.95$0.86Usually ships in 7-10 business days
2295604-06200-00

(replaces part #
95602-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
231XD-K7171-10-00BODY, LATCH 1$77.99$60.834 In-Stock
2490111-06086-00BOLT, HEX. SOCKET BUTTON$6.49$5.064 In-Stock
2595604-06200-00

(replaces part #
95602-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
2690387-06304-00COLLAR$3.20$2.88Usually ships in 7-10 business days
271XD-F8378-00-00PAD$3.60$3.105 In-Stock
285B4-F1722-00-00BOLT 2$1.50$1.357 In-Stock
