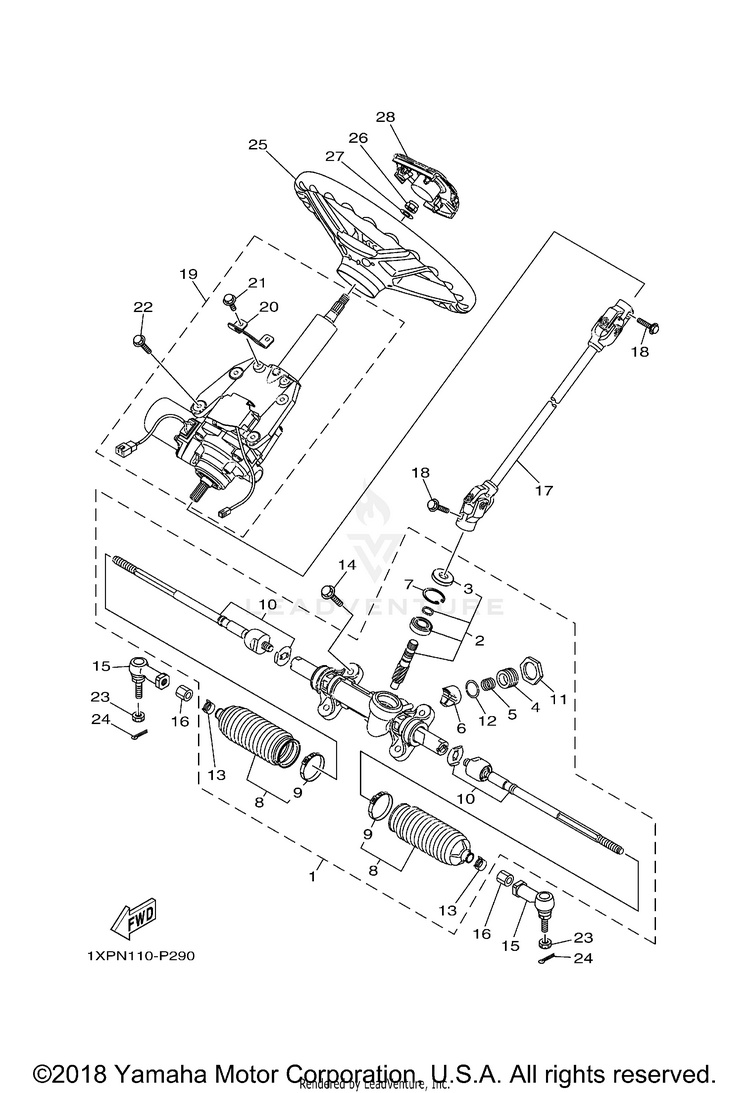

2015 Yamaha Viking 700 FI 4x4 Steering OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1XD-F3400-02-00 (replaces part # 1XD-F3400-00-00)	STEERING ASSY	-	$167.64	2 In-Stock
2	1XD-F38G0-00-00	STEERING PINION SET	$44.99	$36.89	Usually ships in 7-10 business days
3	1XD-F3844-00-00	SEAL	$5.49	$4.94	1 In-Stock
4	1XD-F387G-00-00	COVER, ADJUST	$3.15	$2.84	Usually ships in 7-10 business days
5	1XD-F387K-00-00	SPRING, PRESSURE	$1.90	$1.77	Usually ships in 7-10 business days
6	1XD-F387F-00-00	PAD, PRESSURE	$15.49	$12.70	Usually ships in 7-10 business days
7	1XD-F387J-00-00	RING, STOPPER \| INCL LH AND RH SEALS	$1.05	$0.96	Usually ships in 7-10 business days
8	1XD-F1208-00-00	SEAL SET, 1	$22.99	$17.93	6 In-Stock
9	1XD-F3489-00-00	BAND	$3.05	$2.62	10+ In-Stock
10	1XD-F38H0-00-00	RACK END SET	$93.99	$73.31	4 In-Stock
11	1XD-F178K-00-00	LOCK ASSY	$2.60	$2.34	Usually ships in 7-10 business days
12	1XD-F3165-00-00	WASHER, FELT	$2.10	$1.89	Usually ships in 7-10 business days
13	1XD-F3447-00-00	CLIP	$2.10	$1.81	8 In-Stock
14	95022-10030-00	BOLT, FLANGE	$8.49	$7.64	Usually ships in 7-10 business days
15	5B4-23841-00-00	JOINT, UNIVERSAL 1	$75.99	$59.27	5 In-Stock
	AFTERMARKET ALTERNATIVE	$69.99	$59.99	10+ In-Stock
16	2PG-F3833-00-00	NUT 1	$3.00	$2.58	2 In-Stock
17	1XD-F3840-01-00 (replaces part # 1XD-F3840-00-00)	STEERING SHAFT ASS	$72.99	$56.93	Usually ships in 7-10 business days
18	95022-08025-00	BOLT, FLANGE	$9.49	$7.40	3 In-Stock
19	1XP-238D0-03-00 (replaces part # 1XP-238D0-00-00)	STEERING COLUMN SET	$2,221.99	$1,944.21	Usually ships in 7-10 business days
20	1XP-23881-00-00	BRACKET 1	$6.99	$6.29	Usually ships in 7-10 business days
21	95817-06016-00 (replaces part # 95822-06016-00)	BOLT, FLANGE	$1.95	$1.68	10+ In-Stock
22	95812-08020-00	BOLT, FLANGE	$2.80	$2.41	10+ In-Stock
23	90171-12001-00	NUT, CASTLE	$3.55	$3.05	10+ In-Stock
24	91490-20025-00 (replaces part # 91402-20020-00)	PIN, COTTER	$1.99	$1.71	10+ In-Stock
25	2HC-F3838-09-00 (replaces part # 16B-F3838-00-00)	STEERING WHEEL KIT	$182.99	$142.73	Usually ships in 7-10 business days
26	90185-12008-00	NUT, SELF-LOCKING	$10.49	$8.18	2 In-Stock
27	92990-12200-00 (replaces part # 92902-12200-00)	WASHER, PLAIN	$9.49	$7.40	6 In-Stock
28	1XD-F3818-00-00	COVER, STEERING	$7.49	$6.74	Usually ships in 7-10 business days
