2015 Yamaha Viking 700 FI 4x4 Valve OEM Parts Diagram

Submodel VIKING EPS HUNTER - YXM700PHFH - 2015

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

VALVE

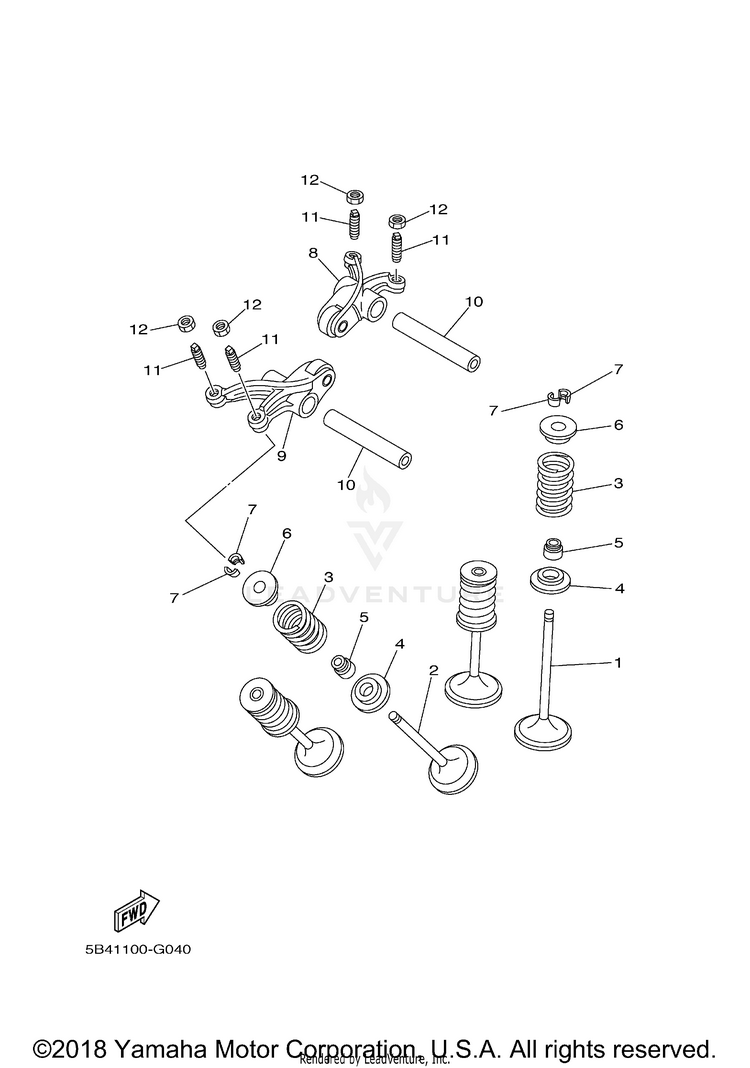

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VK-12111-00-00VALVE, INTAKE$45.99$35.8710+ In-Stock
25VK-12121-00-00VALVE, EXHAUST$92.99$72.5310+ In-Stock
35VK-12113-00-00SPRING, VALVE INNER$21.99$17.158 In-Stock
41PE-12116-00-00SEAT, VALVE SPRING$8.49$7.644 In-Stock
55H0-12119-00-00SEAL, VALVE STEM$17.49$13.6410+ In-Stock
63YF-12117-01-00RETAINER, VALVE SPRING$16.49$12.868 In-Stock
74G0-12118-00-00LOCK, VALVE SPRING RETAINER$8.49$6.6210+ In-Stock
85VK-12151-01-00

(replaces part #
5VK-12151-00-00)

ARM, VALVE ROCKER$150.99$117.771 In-Stock
95VK-12161-11-00

(replaces part #
5VK-12161-00-00)

ARM, VALVE ROCKER$88.99$69.622 In-Stock
105VK-12146-00-00SHAFT, ROCKER$24.99$19.498 In-Stock
115XT-12159-00-00SCREW, VALVE ADJUSTING$10.99$9.576 In-Stock
1290170-06128-00NUT$9.49$7.404 In-Stock
