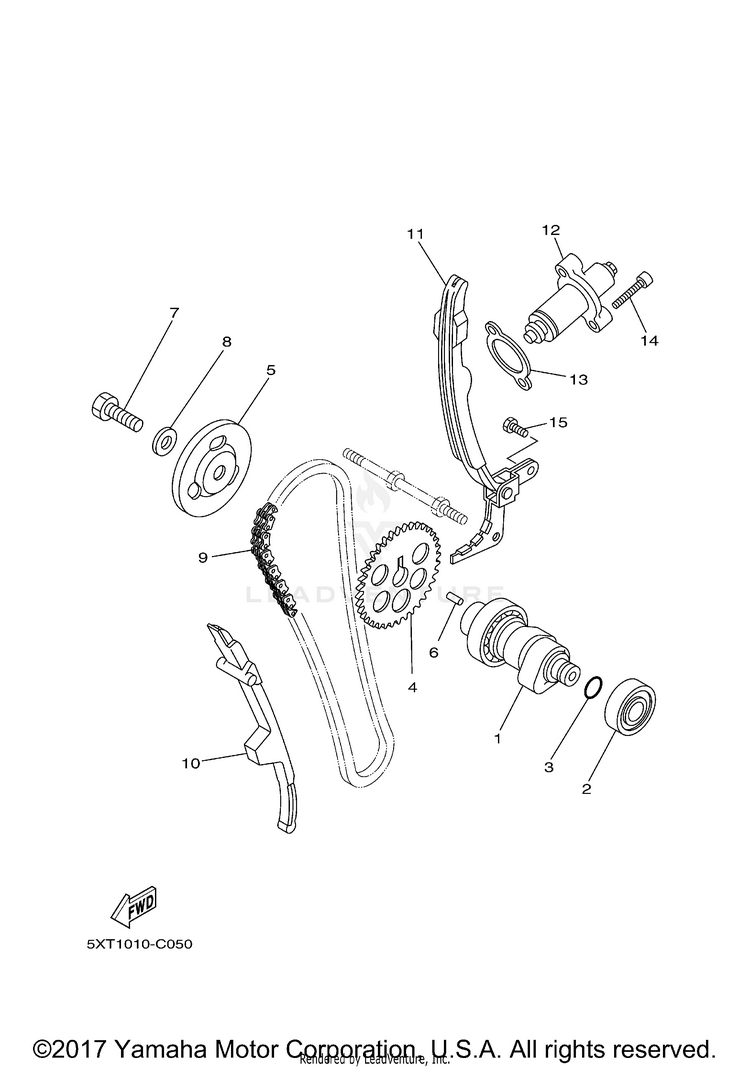

CAMSHAFT CHAIN

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XT-12170-00-00CAMSHAFT ASSY 1$184.99$144.29Usually ships in 7-10 business days
293306-20204-00BEARING (B6202Z) | KOYO$24.99$19.4910+ In-Stock
393210-11453-00O-RING$8.49$6.623 In-Stock
45XT-12176-00-00SPROCKET, CAM CHAIN$51.99$40.55
54KB-11145-00-00PLATE, BREATHER 2$12.99$10.131 In-Stock
693604-10011-00PIN, DOWEL$8.49$6.6210+ In-Stock
790101-10016-00BOLT$4.45$3.832 In-Stock
890201-10774-00

(replaces part #
90201-10591-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
994582-19104-00CHAIN (DID SCR-0404 SV 104LE) | DAIDO-$19.428 In-Stock
105BP-12231-01-00

(replaces part #
5BP-12231-00-00)

GUIDE, STOPPER 1$69.99$54.592 In-Stock
115XT-12241-02-00

(replaces part #
5XT-12241-01-00)

GUIDE, STOPPER 2$45.99$35.875 In-Stock
125XT-12210-00-00TENSIONER ASSY, CAM CHAIN$90.99$70.973 In-Stock
135XT-12213-00-00GASKET, TENSIONER CASE$9.49$7.402 In-Stock
1491314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
1597012-06014-00

(replaces part #
90101-06043-00)

BOLT$8.49$7.644 In-Stock
