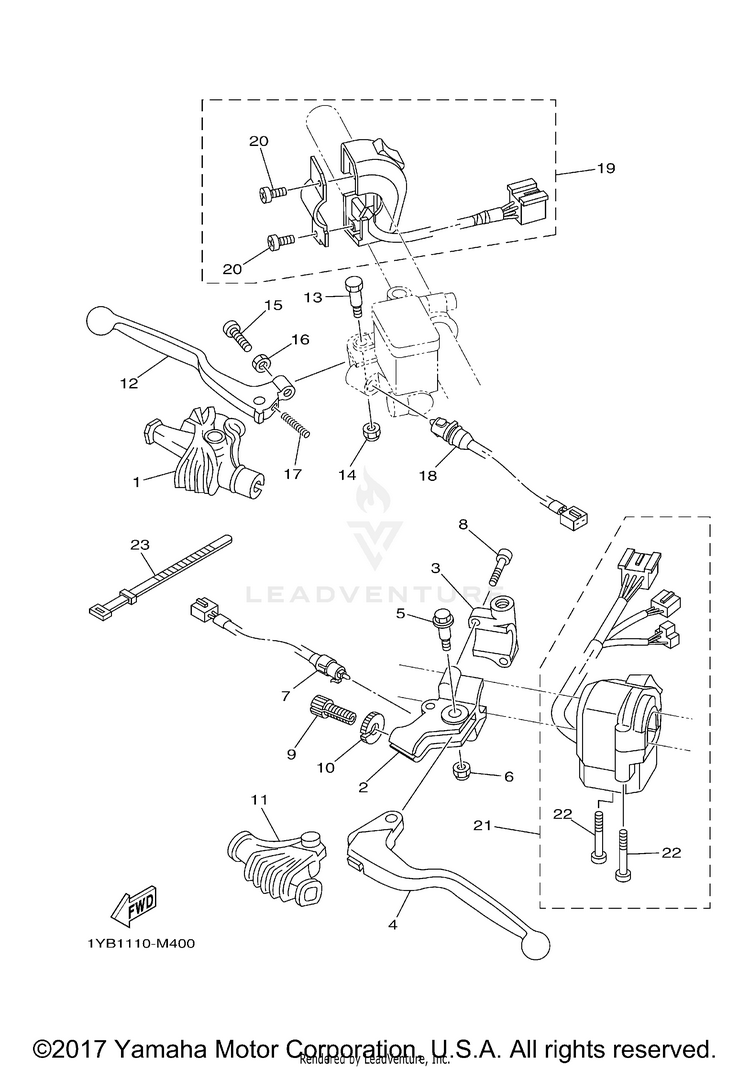

2016 Yamaha XT250 Handle Switch Lever OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1T5-26372-00-00	COVER, HANDLE LEVER 1	$22.99	$17.93	4 In-Stock
2	5XT-82911-00-00	HOLDER, LEVER 1	$36.99	$28.85	5 In-Stock
3	33G-82913-01-00	HOLDER, LEVER LOWER 1	$21.99	$17.15	9 In-Stock
4	23X-83912-02-00	LEVER 1	$30.99	$24.17	10+ In-Stock
5	90109-06798-00	BOLT	$9.49	$7.40	4 In-Stock
6	95617-06100-00 (replaces part # 95602-06100-00)	NUT, U	$2.90	$2.49	10+ In-Stock
7	3C5-82917-00-00	SWITCH	$45.99	$35.87	1 In-Stock
8	91317-05020-00	BOLT	$3.55	$3.05	10+ In-Stock
9	90123-08002-00	BOLT	$10.49	$8.18	10+ In-Stock
10	90179-08030-00	NUT	$10.49	$8.18	10+ In-Stock
11	1E6-26372-00-00	COVER, HANDLE LEVER 1	$25.99	$20.27	2 In-Stock
12	55Y-83922-02-00	LEVER 2	$41.99	$32.75	6 In-Stock
13	90109-06255-00	BOLT	$2.55	$2.19	3 In-Stock
14	95617-06100-00 (replaces part # 95602-06100-00)	NUT, U	$2.90	$2.49	10+ In-Stock
15	90154-06028-00	SCREW, BINDING	$8.49	$7.64	Usually ships in 7-10 business days
16	90170-06020-00	NUT	$8.49	$7.64	Usually ships in 7-10 business days
17	90501-10312-00	SPRING, COMPRESSION	$9.49	$7.40	5 In-Stock
18	3C5-83980-00-00	FRONT STOP SWITCH ASSY	$46.99	$38.53	Usually ships in 7-10 business days
19	3C5-83975-11-00 (replaces part # 3C5-83975-10-00)	SWITCH, HANDLE 2	$61.99	$48.35	Usually ships in 7-10 business days
20	98507-05018-00	SCREW, PAN HEAD	$3.55	$3.05	10+ In-Stock
21	3C5-83973-00-00	SWITCH, HANDLE 3	$251.99	$196.55	Usually ships in 7-10 business days
22	98517-05030-00 (replaces part # 98507-05030-00)	SCREW, PAN HEAD	$11.49	$8.96	2 In-Stock
23	437-83936-01-00	BAND, SWITCH CORD	$8.49	$6.62	10+ In-Stock
