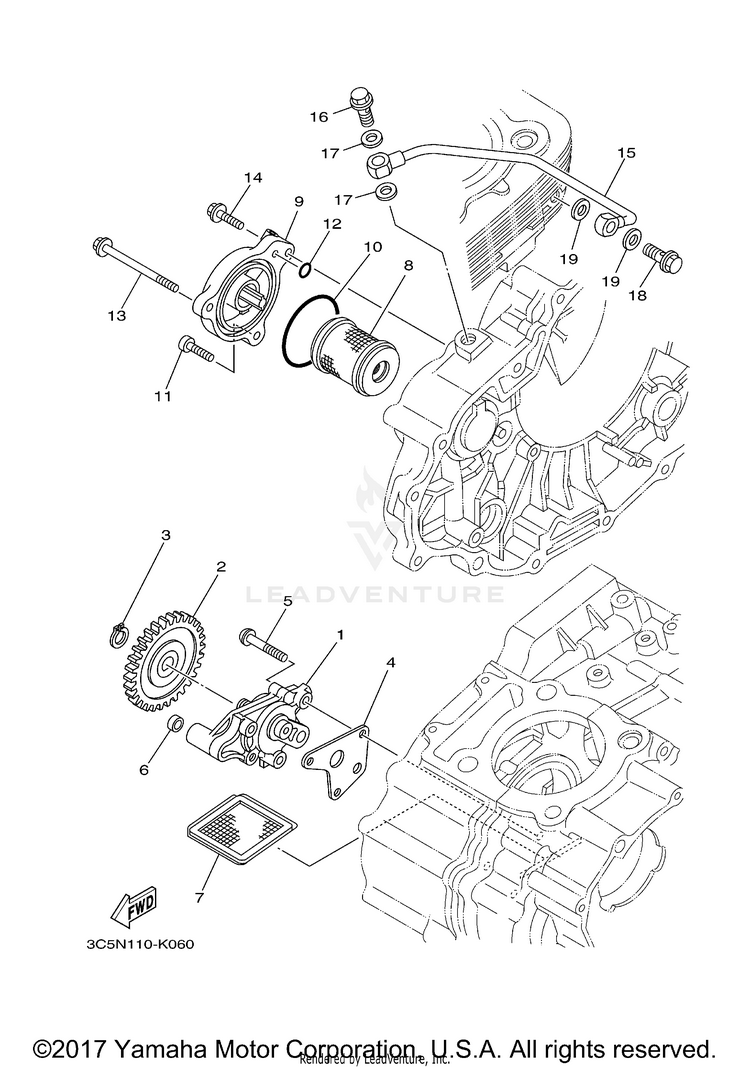

OIL PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14D3-13300-00-00OIL PUMP ASSY$172.99$134.934 In-Stock
25BP-13326-01-00GEAR, PUMP DRIVEN 2 (38T)$37.99$31.15Usually ships in 7-10 business days
399009-11400-00CIRCLIP$9.49$7.406 In-Stock
44D3-13329-00-00GASKET, PUMP COVER$7.49$5.848 In-Stock
590149-06122-00

(replaces part #
90149-06093-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
690430-06156-00GASKET$4.40$3.7810+ In-Stock
722F-13411-01-00STRAINER, OIL$32.99$25.734 In-Stock
85D3-13440-09-00

(replaces part #
5D3-13440-02-00)

ELEMENT ASSY, OIL CL$14.49$12.0810+ In-Stock
AFTERMARKET ALTERNATIVE
$5.99$3.9910+ In-Stock
95XT-13447-00-00COVER, OIL ELEMENT$72.99$56.93Usually ships in 7-10 business days
1093210-54175-00O-RING$13.99$10.9110+ In-Stock
1191314-06020-00BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
1293210-07135-00O-RING$6.99$5.4510+ In-Stock
AFTERMARKET ALTERNATIVE
$10.45$4.9910+ In-Stock
1391314-06070-00BOLT, HEXAGON SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
1491314-06020-00BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
155XT-13161-01-00PIPE, DELIVERY 1$72.99$56.935 In-Stock
1690401-10003-00BOLT, UNION$9.49$8.54Usually ships in 7-10 business days
1790430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
1890401-08007-00BOLT, UNION$9.49$8.54Usually ships in 7-10 business days
1990430-08119-00GASKET$7.49$5.849 In-Stock
