2017 Yamaha SR400 Crankcase OEM Parts Diagram

Submodel SR400 - SR400HCB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

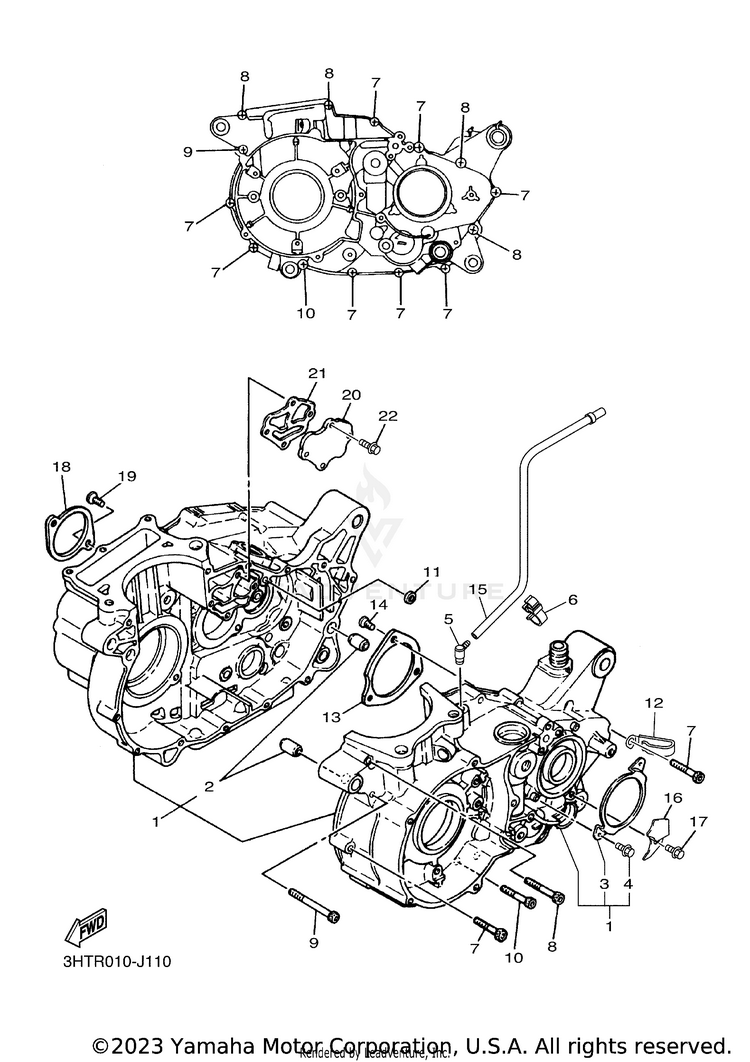

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13HT-15100-R9-00CRANKCASE ASSY$757.99$634.50Usually ships in 7-10 business days
299530-12016-00PIN, DOWEL$4.89$4.2110+ In-Stock
3583-17471-01-00PLATE, COVER$14.49$11.88Usually ships in 7-10 business days
495022-06012-00

(replaces part #
90105-06081-00)

BOLT, FLANGE$3.55$3.0510+ In-Stock
55UG-15371-00-00BREATHER$44.99$35.092 In-Stock
690464-18013-00CLAMP$3.40$3.06Usually ships in 7-10 business days
791314-06035-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
891314-06045-00BOLT, HEXAGON SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
991314-06065-00BOLT, HEXAGON SOCKET HEAD$9.49$7.402 In-Stock
1091314-06055-00BOLT, HEXAGON SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
1190430-09121-00GASKET$8.49$6.623 In-Stock
1290465-08277-00CLAMP$12.49$9.742 In-Stock
13363-15381-00-00PLATE, BEARING COVER$5.64$5.08Not Shipping
1490149-05021-00SCREW$3.40$3.06Usually ships in 7-10 business days
153HT-1531A-R0-00HOSE, BREATHER 1$4.00$3.60Usually ships in 7-10 business days
1690465-10021-00CLAMP$4.60$4.14Usually ships in 7-10 business days
1795022-06012-00BOLT, FLANGE$3.55$3.0510+ In-Stock
18583-15383-00-00PLATE, BEARING COVER$4.90$4.41Usually ships in 7-10 business days
1990151-06023-00

(replaces part #
90151-06024-00)

SCREW, COUNTERSUNK$9.49$7.4010+ In-Stock
20583-15426-10-00COVER, OIL PUMP 2$9.99$8.99Usually ships in 7-10 business days
213HT-15466-00-00GASKET 2$8.49$7.64Usually ships in 7-10 business days
2295022-06016-00

(replaces part #
90105-06187-00)

BOLT, FLANGE$3.90$3.3510+ In-Stock
