2017 Yamaha SR400 Cylinder OEM Parts Diagram

Submodel SR400 - SR400HCB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

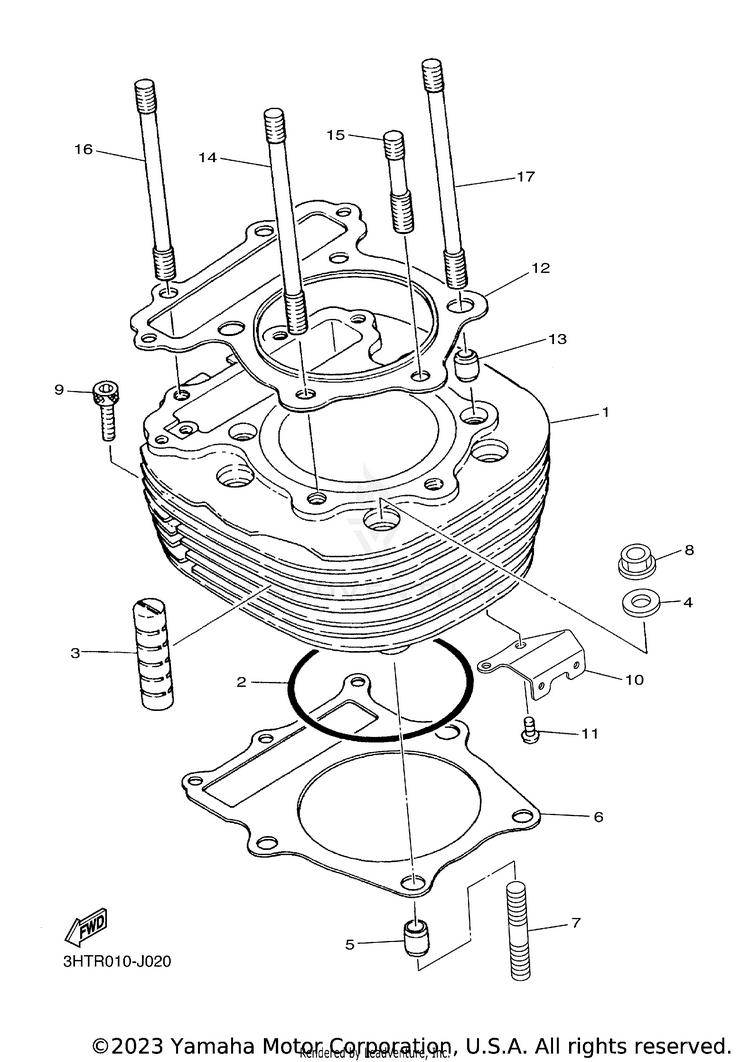

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13HT-11310-20-00CYLINDER$509.99$426.56Usually ships in 7-10 business days
293210-92295-00O-RING$13.49$10.522 In-Stock
3583-11127-00-00ABSORBER 3$8.49$6.6210+ In-Stock
490201-10590-00WASHER, PLATE$6.49$5.065 In-Stock
599530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
63HT-11351-R0-00GASKET, CYLINDER$35.99$29.51Usually ships in 7-10 business days
790116-10087-00BOLT, STUD$19.49$15.981 In-Stock
890179-10030-00NUT$2.55$2.30Usually ships in 7-10 business days
990110-06138-00

(replaces part #
91312-06030-00)

BOLT$6.49$5.0610+ In-Stock
103HT-11395-00-00HOLDER$7.49$6.74Usually ships in 7-10 business days
1192014-06014-00BOLT, BUTTON HEAD$4.05$3.486 In-Stock
123HT-11181-00-00GASKET, CYLINDER HEAD 1$39.99$32.79Usually ships in 7-10 business days
1399530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
1490116-10222-00BOLT, STUD$18.49$15.16Usually ships in 7-10 business days
1590116-10223-00BOLT, STUD$11.49$9.42Usually ships in 7-10 business days
1690116-08190-00BOLT, STUD$6.49$5.842 In-Stock
1790116-10225-00BOLT, STUD$20.99$17.21Usually ships in 7-10 business days
