2017 Yamaha SR400 Front Wheel OEM Parts Diagram

Submodel SR400 - SR400HCB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

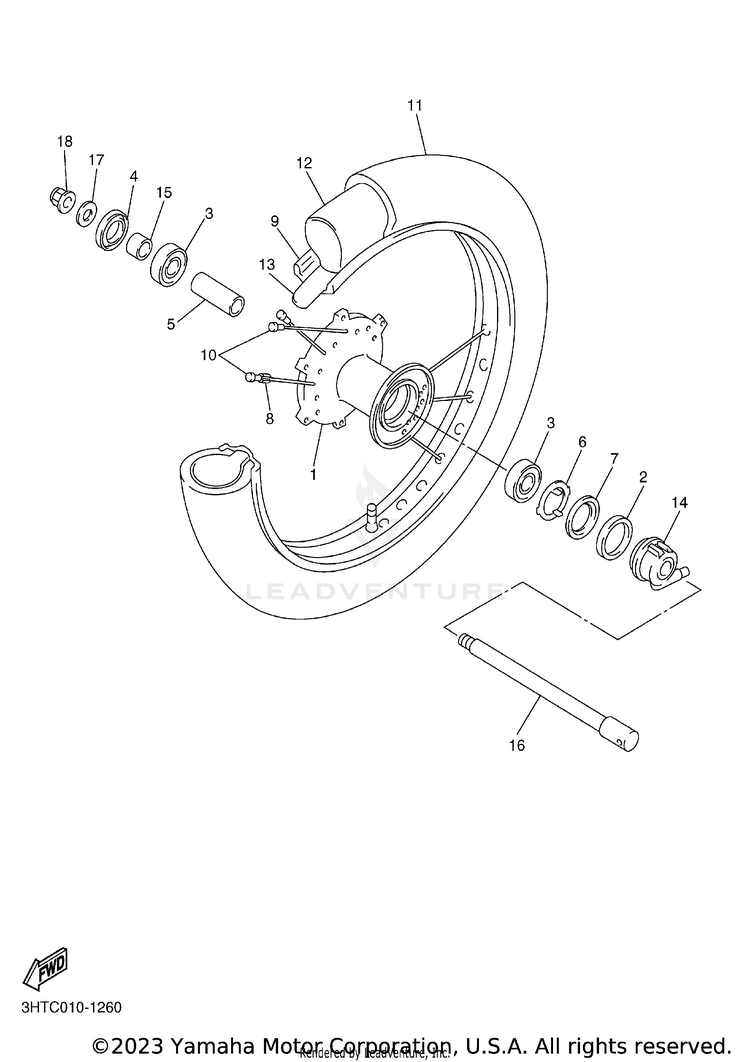

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13JB-25111-00-00HUB, FRONT$234.99$186.29Usually ships in 7-10 business days
293105-45017-00OIL SEAL$16.49$12.862 In-Stock
393306-30317-00BEARING$43.99$34.3110+ In-Stock
493106-28023-00OIL SEAL$13.49$10.526 In-Stock
590560-17126-00SPACER$18.49$15.16Usually ships in 7-10 business days
6341-25149-00-00CLUTCH, METER$8.49$7.642 In-Stock
7341-25846-00-00RETAINER, CLUTCH$9.49$8.542 In-Stock
83HT-25398-00-00BALANCER, WHEEL (15G) | UN$8.49$7.64Usually ships in 7-10 business days
994418-18003-00RIM (1.85-18)$243.99$193.11Usually ships in 7-10 business days
105JX-25104-00-00SPOKE SET, FRONT$115.99$90.47Usually ships in 7-10 business days
1194109-18015-00TIRE (90/100-18M/C 54S BT45F) | BRIDGESTONE$261.99$204.35Usually ships in 7-10 business days
1294209-18003-00TUBE (90/100-18 MC) | BRIDGESTONE$44.99$36.89Usually ships in 7-10 business days
1394340-18086-00

(replaces part #
94330-18087-00)

BAND, RIM (2.50-18) | BRIDGESTONE$19.49$15.208 In-Stock
141FK-25190-02-00GEAR UNIT ASSY$106.99$83.45Usually ships in 7-10 business days
1590387-177R1-00COLLAR$12.49$10.24Usually ships in 7-10 business days
1699999-04072-00

(replaces part #
341-25181-02-00)

AXLE, WHEEL$51.99$40.55Usually ships in 7-10 business days
1792990-14200-00

(replaces part #
92903-14200-00)

WASHER, PLAIN$2.60$2.241 In-Stock
1895604-14200-00NUT, SELF-LOCKING$12.49$10.24Usually ships in 7-10 business days
