2017 Yamaha SR400 Front Brake Caliper OEM Parts Diagram

Submodel SR400 - SR400HCB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT BRAKE CALIPER

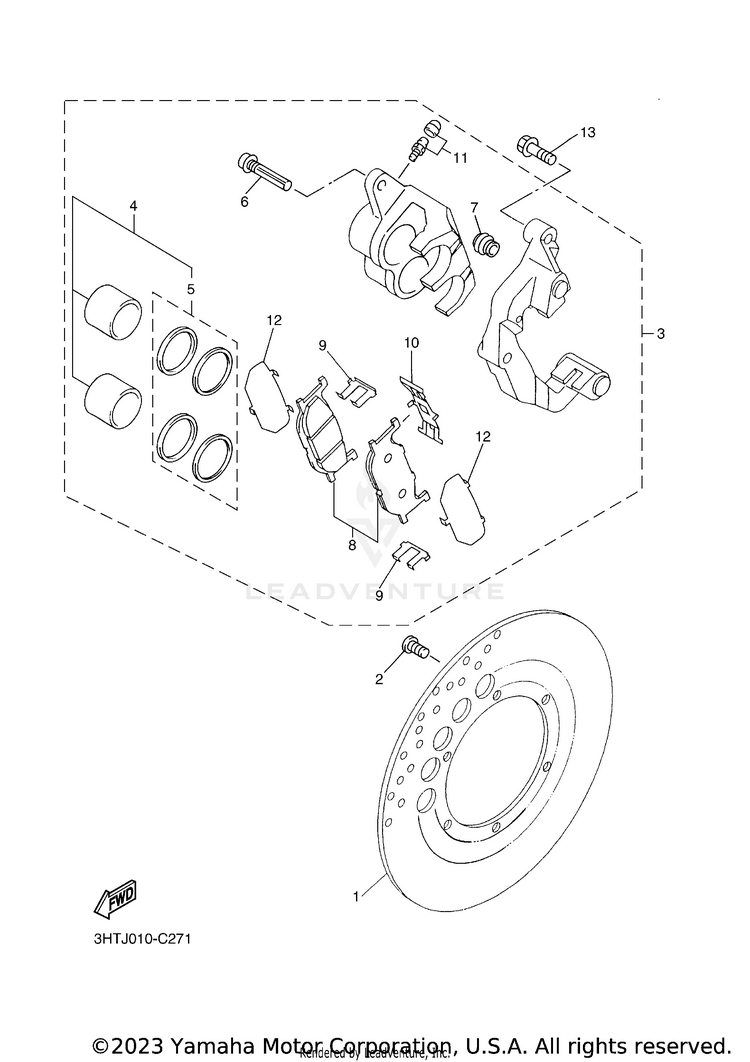

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13JB-2582U-10-00DISC, BRAKE (RIGHT)$299.99$248.83Usually ships in 7-10 business days
290111-08080-00

(replaces part #
90111-08003-00)

BOLT,HEX. SOCKET BUT$2.35$2.126 In-Stock
33HT-2580U-21-00

(replaces part #
3HT-2580U-20-00)

CALIPER ASSY (RIGHT)$322.99$268.22Usually ships in 7-10 business days
43YX-W0057-00-00PISTON ASSY, CALIPER$66.99$52.25Usually ships in 7-10 business days
53JB-25803-00-00

(replaces part #
3JB-W0047-00-00)

CALIPER SEAL KIT$49.99$40.99Usually ships in 7-10 business days
65JW-25914-10-00

(replaces part #
5JW-25914-00-00)

PIN, SLIDE$24.99$19.495 In-Stock
74TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
83LP-25805-00-00BRAKE PAD KIT$46.99$38.53Usually ships in 7-10 business days
94BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
103YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
1115B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
124DN-25827-00-00SHIM, CALIPER$28.99$23.77Usually ships in 7-10 business days
1390105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
