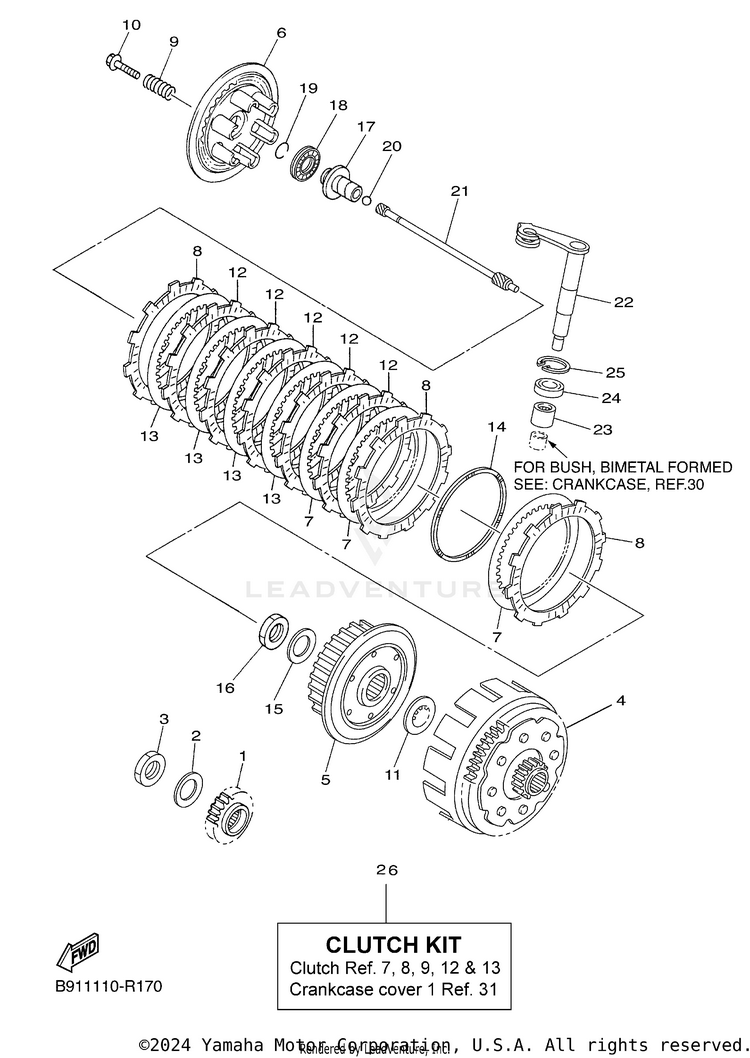

2018 Yamaha WR450F Clutch OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2S2-16111-60-00	GEAR, PRIMARY DRIVE	$159.99	$124.79	3 In-Stock
2	90208-20007-00	WASHER, CONICAL SPRING	$6.99	$5.45	6 In-Stock
3	90170-20211-00	NUT	$5.49	$4.28	4 In-Stock
4	B11-16150-00-00	PRIMARY DRIVEN GEAR COMP.	$508.99	$412.88	Usually ships in 7-10 business days
5	5TA-16371-20-00	BOSS, CLUTCH	$151.99	$118.55	10+ In-Stock
6	5JG-16351-00-00	PLATE, PRESSURE 1	$98.99	$77.21	10+ In-Stock
7	4X7-16325-10-00 (replaces part # 4X7-16325-00-00)	PLATE, CLUTCH 2 \| INC. IN CLUTCH KIT	$17.99	$16.03	10+ In-Stock
8	5TA-16321-00-00	PLATE, FRICTION \| INC. IN CLUTCH KIT	$28.99	$22.61	10+ In-Stock
9	90501-230E4-00	SPRING, COMPRESSION \| INC. IN CLUTCH KIT	$10.49	$8.18	10+ In-Stock
10	90159-06010-00	SCREW, WITH WASHER	$8.49	$6.62	10+ In-Stock
11	5XD-16154-00-00	PLATE, THRUST 1	$16.49	$12.86	10+ In-Stock
12	5VY-16321-00-00	PLATE, FRICTION	$34.99	$27.29	10+ In-Stock
13	1TA-16325-10-00 (replaces part # 1TA-16325-00-00)	PLATE, CLUTCH 2 \| INC. IN CLUTCH KIT	$12.49	$9.74	10+ In-Stock
14	2GC-16383-00-00	SPRING, CUSHION \| INC. IN CLUTCH KIT	$16.49	$12.86	2 In-Stock
15	90208-20008-00	WASHER, CONICAL SPRING	$7.99	$6.23	6 In-Stock
16	90170-20255-00	NUT	$11.49	$8.96	10+ In-Stock
17	33D-16356-00-00	ROD, PUSH 1	$71.99	$56.15	Usually ships in 7-10 business days
18	93340-21209-00	BEARING	$18.99	$14.81	9 In-Stock
19	93440-10085-00	CIRCLIP	$9.49	$7.40	10+ In-Stock
20	93511-32027-00	BALL	$9.49	$7.40	10+ In-Stock
21	1SL-16357-10-00	ROD, PUSH 2	$50.99	$39.77	3 In-Stock
22	2GC-16381-10-00	PUSH LEVER COMP.	$56.99	$44.45	Usually ships in 7-10 business days
23	93317-11096-00	BEARING	$25.99	$20.27	10+ In-Stock
24	93102-10008-00	OIL SEAL	$6.49	$5.06	10+ In-Stock
25	99009-18500-00	CIRCLIP	-	$1.06	3 In-Stock
26	2GC-W001G-00-00	CLUTCH PLATE KIT	$205.99	$160.67	7 In-Stock
