2018 Yamaha WR450F Water Pump OEM Parts Diagram

Submodel WR450F - WR450FJ - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

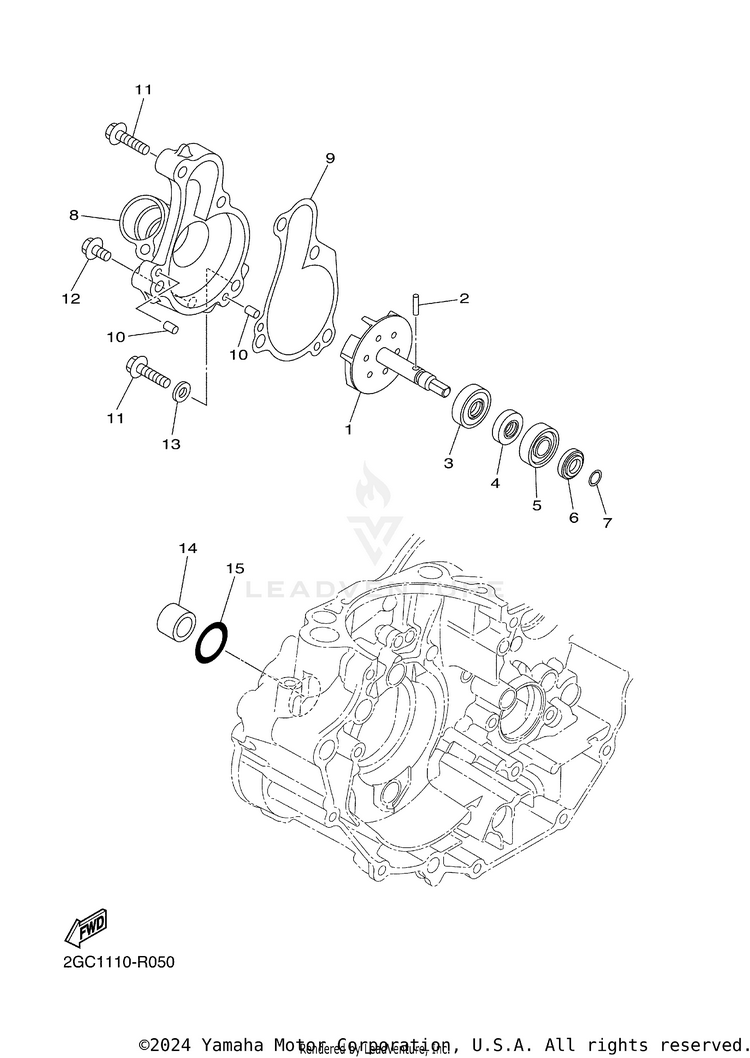

WATER PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BR9-12450-00-00IMPELLER SHAFT ASSY$46.99$36.658 In-Stock
293603-12030-00PIN, PLUNGER$2.80$2.4110+ In-Stock
393102-08004-00OIL SEAL$10.49$8.1810+ In-Stock
493102-08307-00OIL SEAL$8.49$6.6210+ In-Stock
593300-60814-00

(replaces part #
93300-60801-00)

BEARING | KOYO$23.99$18.7110+ In-Stock
61SL-11917-00-00COLLAR$17.99$14.037 In-Stock
793440-07182-00CIRCLIP$4.10$3.5310+ In-Stock
833D-12422-00-00COVER, HOUSING$109.99$85.797 In-Stock
933D-12427-00-00GASKET, HOUSING COVER 1$8.49$6.6210+ In-Stock
1093604-10011-00PIN, DOWEL$8.49$6.6210+ In-Stock
1195022-06025-00BOLT, FLANGE$1.90$1.6310+ In-Stock
1295022-06010-00BOLT, FLANGE$6.49$5.067 In-Stock
1390430-06014-00GASKET$8.99$7.0110+ In-Stock
145BE-12564-00-00PIPE, WATER$12.99$10.1310+ In-Stock
1593210-19758-00O-RING$8.49$6.6210+ In-Stock
