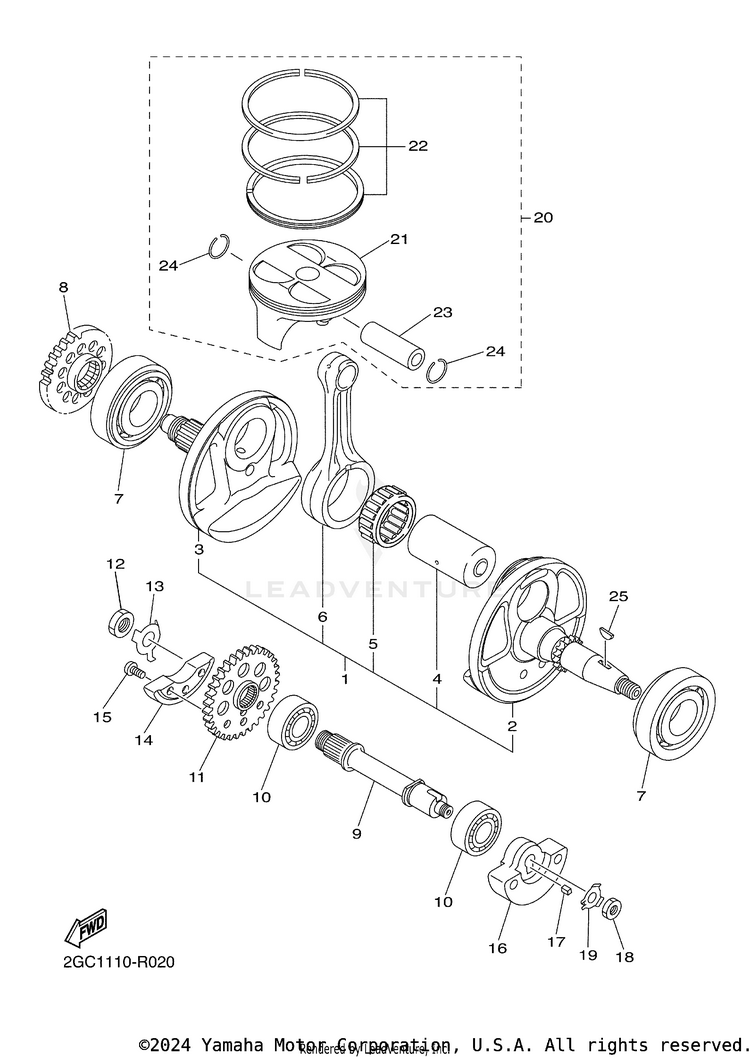

2018 Yamaha WR450F Crankshaft Piston OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2GC-11400-00-00	CRANKSHAFT ASSY	$555.99	$433.67	2 In-Stock
2	2GC-11412-00-00	CRANK 1	$235.99	$186.98	Usually ships in 7-10 business days
3	2GC-11422-00-00	CRANK 2	$246.99	$195.49	Usually ships in 7-10 business days
4	5TG-11681-01-00	PIN, CRANK 1	$51.99	$40.55	Usually ships in 7-10 business days
5	93310-63458-00	BEARING	$125.99	$98.27	3 In-Stock
6	33D-11651-03-00	ROD, CONNECTING	$140.99	$109.97	Usually ships in 7-10 business days
7	93306-30633-00	BEARING	$110.99	$86.57	10+ In-Stock
8	1SL-11536-00-00	GEAR, DRIVE	$104.99	$81.89	Usually ships in 7-10 business days
9	33D-11455-00-00	SHAFT 1	$190.99	$148.97	Usually ships in 7-10 business days
10	93304-20310-00	BEARING	$120.99	$94.37	10+ In-Stock
11	2S2-11531-00-00	GEAR, BALANCE WEIGHT	$124.99	$97.49	Usually ships in 7-10 business days
12	90170-14171-00	NUT	$10.49	$8.18	3 In-Stock
13	90215-14287-00	WASHER, LOCK	$6.49	$5.06	10+ In-Stock
14	2GC-11454-00-00	WEIGHT 1	$58.99	$46.01	Usually ships in 7-10 business days
15	91312-06014-00 (replaces part # 90110-06168-00)	BOLT	$5.49	$4.28	10+ In-Stock
16	2S2-11464-00-00	WEIGHT 2	$79.99	$62.39	Usually ships in 7-10 business days
17	90282-05034-00	KEY, STRAIGHT	$10.49	$8.18	7 In-Stock
18	90170-10013-00	NUT	$13.49	$11.06	Usually ships in 7-10 business days
19	90215-10009-00	WASHER, LOCK	$16.49	$12.86	10+ In-Stock
20	1SL-116A0-00-00	PISTON ASSY	$220.99	$172.37	10+ In-Stock
21	1SL-11631-00-00	PISTON (STD)	$131.99	$102.95	Usually ships in 7-10 business days
22	33D-11603-00-00	PISTON RING SET (STD)	$69.99	$54.59	7 In-Stock
23	33D-11633-00-00	PIN, PISTON	$39.99	$31.19	1 In-Stock
24	93450-19052-00	CIRCLIP, INNER	$7.99	$6.23	10+ In-Stock
25	90280-03006-00	KEY, WOODRUFF	$9.49	$7.40	10+ In-Stock
