2018 Yamaha WR450F Exhaust OEM Parts Diagram

Submodel WR450F - WR450FJ - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

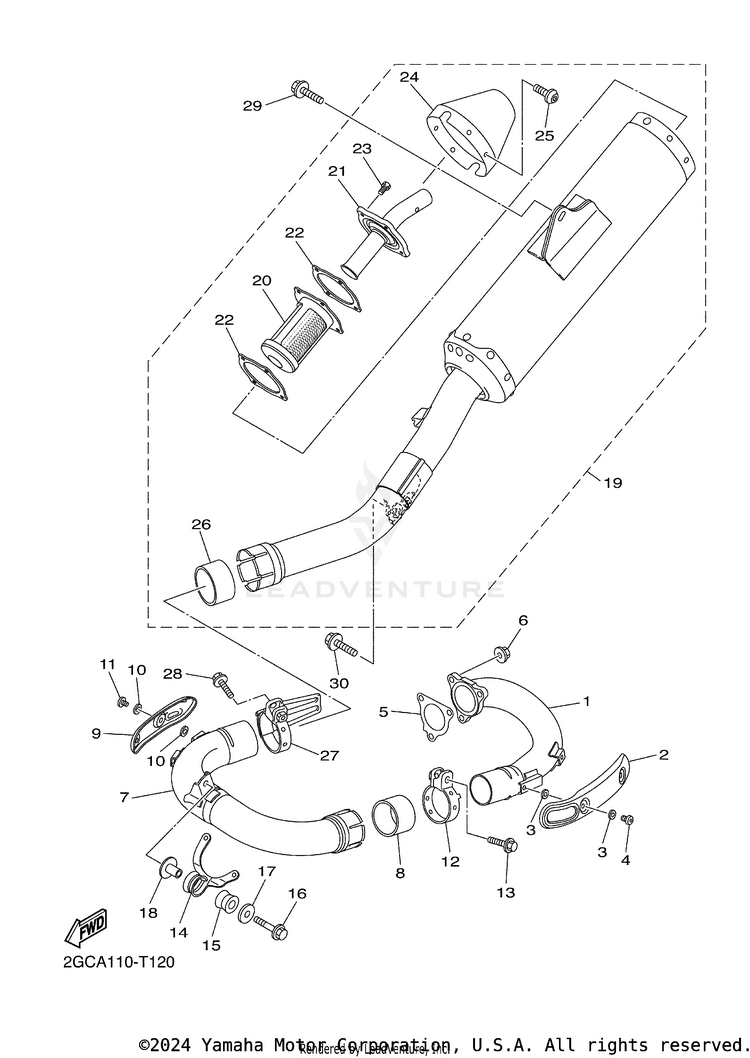

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SL-14611-00-00PIPE, EXHAUST 1$241.99$191.58Usually ships in 7-10 business days
21SL-14628-00-00PROTECTOR, EXHAUST PIPE$43.99$34.318 In-Stock
390201-05017-00WASHER, PLATE$9.49$7.4010+ In-Stock
498980-06008-00SCREW, BIND-$1.2210+ In-Stock
533D-14613-00-00GASKET, EXHAUST PIPE | INCL. IN TOP END GASKET KIT$8.49$6.6210+ In-Stock
695780-06500-00

(replaces part #
95704-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
71SL-14621-00-00PIPE, EXHAUST 2$269.99$214.09Usually ships in 7-10 business days
85XD-14714-00-00GASKET, MUFFLER$33.99$26.5110+ In-Stock
91SL-1463B-00-00PROTECTOR, EXHAUST PIPE 2$45.99$35.874 In-Stock
1090201-05017-00WASHER, PLATE$9.49$7.4010+ In-Stock
1198980-06008-00SCREW, BIND-$1.2210+ In-Stock
121SL-14788-00-00BAND, SILENCER$34.99$27.292 In-Stock
1395024-08040-00BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
141SL-14639-00-00STAY, EXHAUST PIPE 1$37.99$29.632 In-Stock
155VY-14747-00-00DAMPER, MUFFLER$15.49$12.0810+ In-Stock
1690105-08137-00BOLT, FLANGE$6.49$5.0610+ In-Stock
1790201-08061-00WASHER, PLATE$9.49$7.404 In-Stock
1890387-08081-00COLLAR$9.49$7.408 In-Stock
192GC-14701-00-00MUFFLER COMP.$887.99$743.69Usually ships in 7-10 business days
205TJ-14780-00-00SPARK ARRESTER ASSY$104.99$81.89Usually ships in 7-10 business days
215TJ-14784-00-00PIPE, TAIL$157.99$123.233 In-Stock
225TJ-14623-00-00GASKET, EXHAUST PIPE$14.49$11.306 In-Stock
2390110-05041-00BOLT, HEXAGON SOCKET HEAD$4.05$3.64Usually ships in 7-10 business days
245TJ-14799-00-00CAP$131.99$102.95Usually ships in 7-10 business days
2592012-05008-00BOLT, BUTTON HEAD$3.05$2.628 In-Stock
261SL-14714-00-00GASKET, MUFFLER$32.99$25.737 In-Stock
27B29-14715-00-00BAND, MUFFLER$60.99$47.57Usually ships in 7-10 business days
2895024-08040-00BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
2990105-08230-00BOLT, FLANGE$4.65$4.0010+ In-Stock
3090119-08170-00BOLT, WITH WASHER$5.49$4.283 In-Stock
