CAMSHAFT & CHAIN

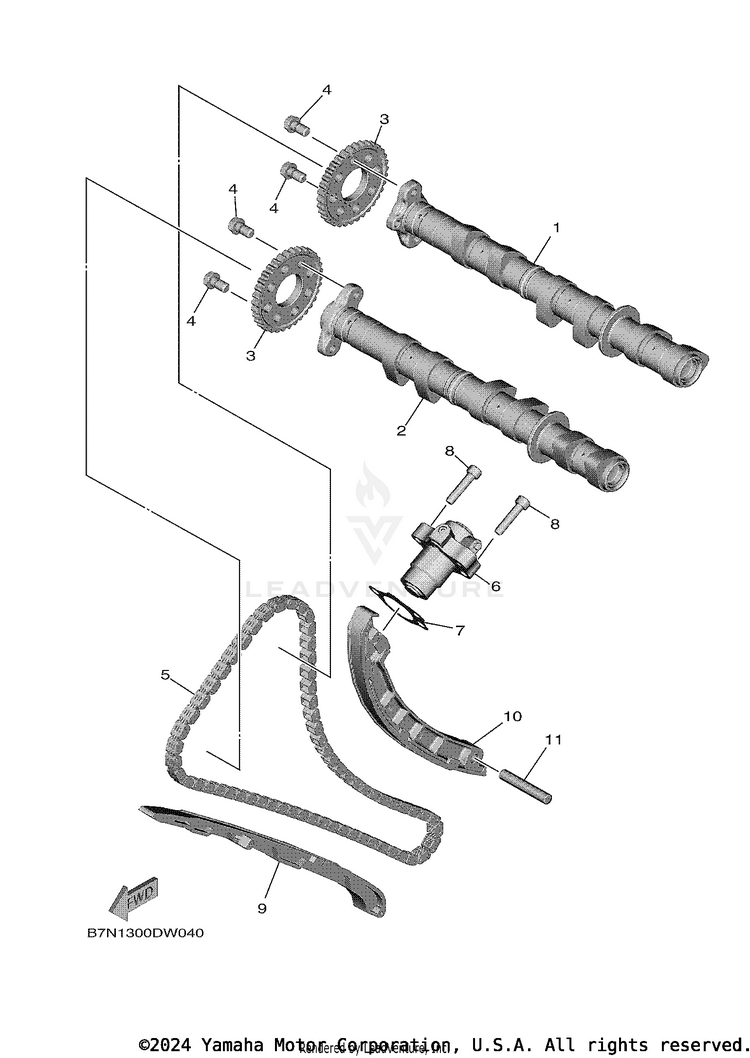

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B7N-12170-00-00CAMSHAFT ASSY 1$321.99$251.15Usually ships in 7-10 business days
2B7N-12180-00-00CAMSHAFT ASSY 2$322.99$251.93Usually ships in 7-10 business days
3B7N-12176-00-00SPROCKET, CAM CHAI$60.99$47.57Usually ships in 7-10 business days
490105-07006-00BOLT, FLANGE$9.49$7.4010+ In-Stock
594591-78128-00CHAIN$68.99$53.81Usually ships in 7-10 business days
6B7N-12210-01-00TENSIONER ASSY, CAM CHAIN$225.99$176.271 In-Stock
714B-12213-00-00GASKET, TENSIONER CASE$8.49$6.626 In-Stock
891317-06025-00

(replaces part #
91312-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
91RC-12251-00-00DAMPER, CHAIN 1$32.99$27.05Usually ships in 7-10 business days
10B7N-12250-00-00CHAIN DAMPER ASSY$50.99$39.77Usually ships in 7-10 business days
1193607-44002-00PIN, DOWEL$5.49$4.94Usually ships in 7-10 business days
