2024 Yamaha MT-09 SP Oil Pump OEM Parts Diagram

Submodel MT09 SP - MT09SPRCS - 2024

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

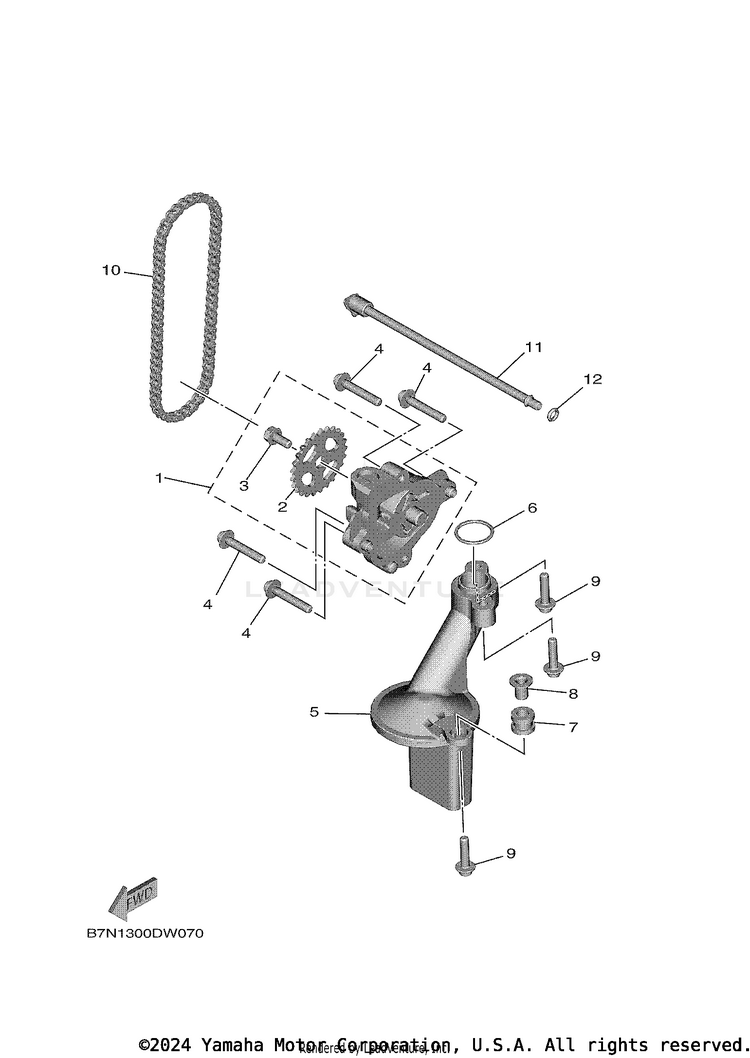

OIL PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B7N-13300-00-00OIL PUMP ASSY$210.99$164.57Usually ships in 7-10 business days
21RC-13355-00-00SPROCKET, DRIVEN$41.99$34.43Usually ships in 7-10 business days
390105-06066-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
490110-06433-00

(replaces part #
90110-06432-00)

BOLT, HEXAGON SOCKET HEAD$1.70$1.53Usually ships in 7-10 business days
5B7N-13410-00-00STRAINER HOUSING ASSY$34.99$28.69Usually ships in 7-10 business days
693210-22001-00O-RING$8.49$7.641 In-Stock
790480-13010-00GROMMET$8.49$7.643 In-Stock
85VY-13117-10-00COLLAR, DISTANCE$9.49$8.542 In-Stock
990110-06172-00

(replaces part #
90110-06173-00)

BOLT, HEXAGON SOCKET HEAD$10.49$8.184 In-Stock
1094581-79066-00CHAIN (DID 25H)$22.99$18.85Usually ships in 7-10 business days
11B7N-1316E-00-00PIPE DELIVERY 5$63.99$49.91Usually ships in 7-10 business days
1293210-06667-00O-RING$8.49$6.626 In-Stock
