2024 Yamaha MT-09 SP Side Cover OEM Parts Diagram

Submodel MT09 SP - MT09SPRCS - 2024

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

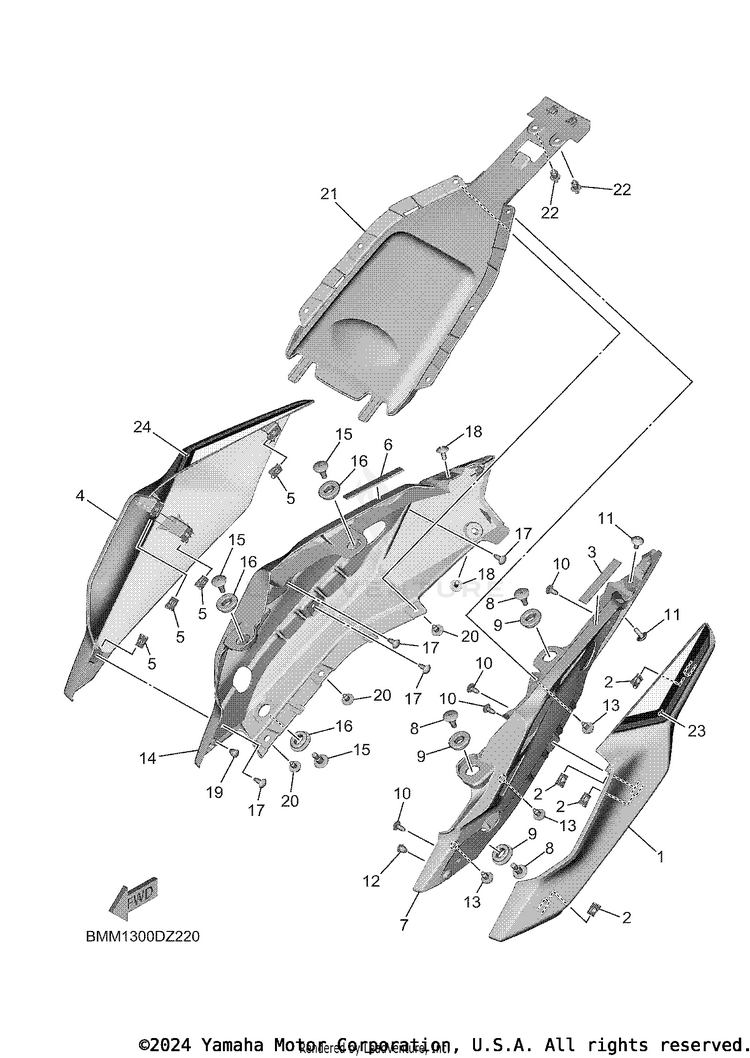

SIDE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BME-21711-00-P3COVER, SIDE 1 | SMX FOR BWM2$78.99$61.61Usually ships in 7-10 business days
290183-05042-00NUT, SPRING-$3.2010+ In-Stock
390520-02011-00DAMPER, PLATE$1.75$1.58Usually ships in 7-10 business days
4BME-21721-00-P3COVER, SIDE 2 | SMX FOR BWM2$78.99$61.61Usually ships in 7-10 business days
590183-05042-00NUT, SPRING-$3.2010+ In-Stock
690520-02011-00DAMPER, PLATE$1.75$1.58Usually ships in 7-10 business days
7BME-21731-00-00COVER, SIDE 3$34.99$28.69Usually ships in 7-10 business days
890109-06336-00BOLT$2.25$2.024 In-Stock
990480-01559-00GROMMET$6.49$5.0610+ In-Stock
1097707-50012-00

(replaces part #
97702-50012-00)

SCREW, TRUSS HEAD TAPPING$4.63$3.9810+ In-Stock
1190111-05002-00BOLT, HEX. SOCKET BUTTON$8.49$6.6210+ In-Stock
1290338-07180-00

(replaces part #
90338-06018-00)

PLUG$8.49$6.628 In-Stock
1390269-06081-00RIVET$8.49$6.6210+ In-Stock
14BME-21741-00-00COVER, SIDE 4$34.99$28.69Usually ships in 7-10 business days
1590109-06336-00BOLT$2.25$2.024 In-Stock
1690480-01559-00GROMMET$6.49$5.0610+ In-Stock
1797707-50012-00

(replaces part #
97702-50012-00)

SCREW, TRUSS HEAD TAPPING$4.63$3.9810+ In-Stock
1890111-05002-00BOLT, HEX. SOCKET BUTTON$8.49$6.6210+ In-Stock
1990338-07180-00

(replaces part #
90338-06018-00)

PLUG$8.49$6.628 In-Stock
2090269-06081-00RIVET$8.49$6.6210+ In-Stock
21BME-21651-00-00COVER, REAR FENDER$66.99$52.25Usually ships in 7-10 business days
2290269-06008-00RIVET$9.49$7.4010+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$4.9910+ In-Stock
23BMM-2173E-00-00GRAPHIC 1$25.99$21.31Usually ships in 7-10 business days
24BMM-2173F-00-00GRAPHIC 2$25.99$21.31Usually ships in 7-10 business days
