2024 Yamaha MT-09 SP Taillight OEM Parts Diagram

Submodel MT09 SP - MT09SPRCS - 2024

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

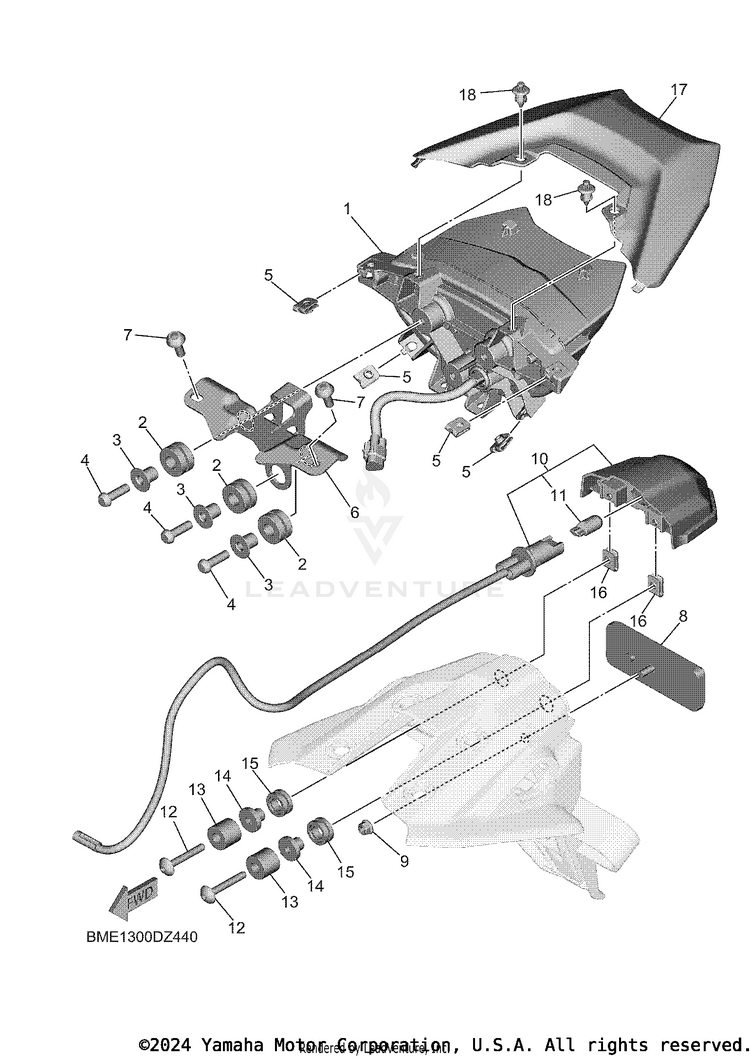

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BME-84700-00-00TAILLIGHT ASSY$319.99$263.68Usually ships in 7-10 business days
290480-14229-00GROMMET$9.49$7.4010+ In-Stock
390387-06289-00COLLAR$3.25$2.92Usually ships in 7-10 business days
492012-06020-00BOLT, BUTTON HEAD$9.49$7.403 In-Stock
590183-050A6-00

(replaces part #
90183-05076-00)

NUT, SPRING$2.95$2.547 In-Stock
6BME-2117E-00-00BRACKET, TAILLIGHT$50.99$39.77Usually ships in 7-10 business days
790111-06029-00BOLT, HEX. SOCKET BUTTON$6.49$5.0610+ In-Stock
83Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
995607-05200-00

(replaces part #
95602-05200-00)

NUT, U FLANGE$10.49$8.183 In-Stock
102PN-84745-02-00LICENCE LIGHT UNIT ASSY$45.99$37.71Usually ships in 7-10 business days
112DP-H4347-00-00BULB (12V-5W)$8.49$7.64Usually ships in 7-10 business days
1290111-05006-00BOLT, HEX. SOCKET BUTTON$8.49$7.64Usually ships in 7-10 business days
1390387-08125-00COLLAR$6.49$5.84Usually ships in 7-10 business days
1490387-05044-00COLLAR$15.49$12.70Usually ships in 7-10 business days
1590480-14017-00GROMMET$5.49$4.94Usually ships in 7-10 business days
1690183-050A6-00

(replaces part #
90183-05076-00)

NUT, SPRING$2.95$2.547 In-Stock
17BME-2172X-00-00COVER, TAILLIGHT$31.99$26.23Usually ships in 7-10 business days
1890269-06008-00RIVET$9.49$7.4010+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$4.9910+ In-Stock
