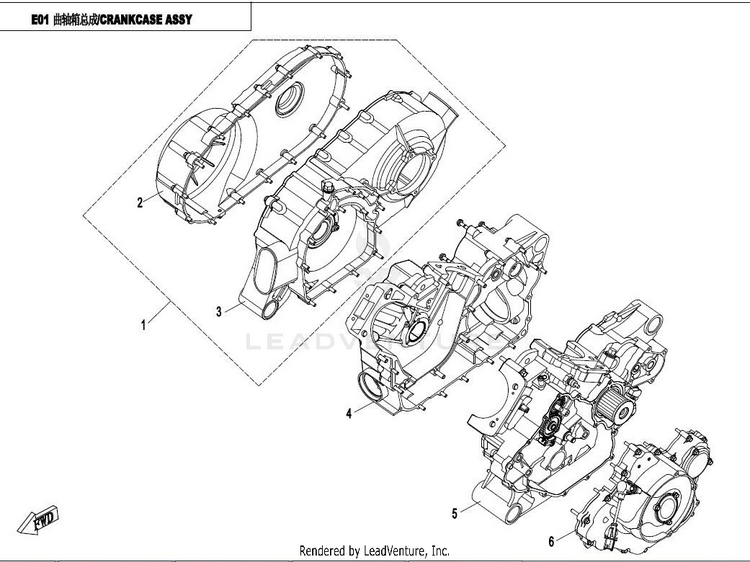

2017 CFMOTO CFORCE 800 Crankcase Assy OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0800-013000	CVT ASSY	Usually ships in 7-10 business days
2	0800-013200	CVT CASE COVER ASSY	Usually ships in 7-10 business days
3	0800-013100	CVT CASE ASSY	Usually ships in 7-10 business days
4	0800-012000-0002	RIGHT CRANKCASE ASSY., MARK B \| MARK "B"/FOR BLUE BEARING SLEEVE	Usually ships in 7-10 business days
5	0800-011000-0002	LEFT CRANKCASE ASSY \| MARK "B"/FOR BLUE BEARING SLEEVE	Usually ships in 7-10 business days
5	0800-011100-20010	LEFT CRANKCASE ASSY. (MAG. SIDE) \| MARK "A"/FOR RED BEARING SLEEVE	Usually ships in 7-10 business days
6	0800-014000	LEFT CRANKCASE COVER ASSY	Usually ships in 7-10 business days
7	0800-B2B000-0840	CFORCE 800 ENGINE. (TRUCK FREIGHT) \| NOT SHOWN	Usually ships in 7-10 business days
8	0JWA-BLB000-0840	LONG BLOCK, 800cc, 2V91W-A, XC \| NOT SHOWN	Usually ships in 7-10 business days
