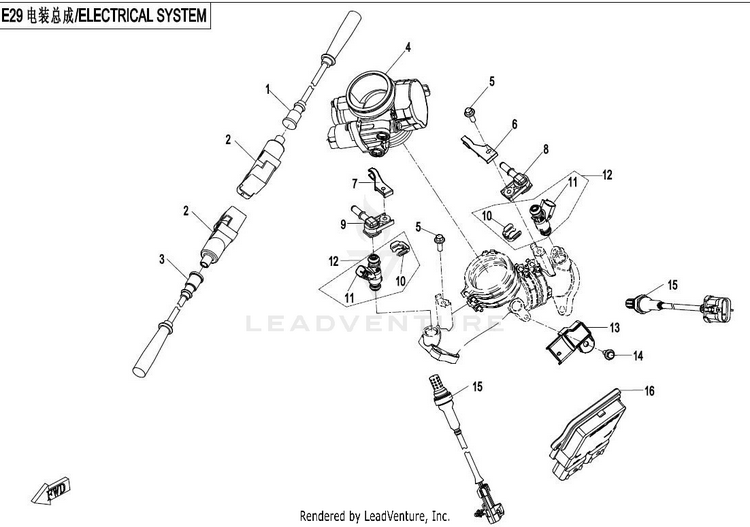

2017 CFMOTO CFORCE 800 Electric System (Efi) OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0800-179100-10000 (replaces part # 0800-179100)	HIGH-TENSION CABLE 1	Usually ships in 7-10 business days
2	0800-178000	IGNITION COIL	Usually ships in 7-10 business days
3	0800-179200-10000	HIGH-TENSION CABLE 2	Usually ships in 7-10 business days
4	0800-173000-6000	THROTTLE BODY	Usually ships in 7-10 business days
5	0010-080013-0010	BOLT M6Ã—22	10+ In-Stock
6	080V-170020-10000 (replaces part # 0800-170005-10000)	BRACKET 2, FUEL INJECTOR HOSE	Usually ships in 7-10 business days
7	0800-170004-10000 (replaces part # 0800-170004)	BRACKET 1, FUEL HOSE	Usually ships in 7-10 business days
8	0800-170003	INJECTOR CAP 2	Usually ships in 7-10 business days
9	0800-170002	INJECTOR CAP 1	Usually ships in 7-10 business days
10	0800-171000 (replaces part # 0800-171001)	INJECTOR ASSY	Usually ships in 7-10 business days
12	0800-171000	INJECTOR ASSY	Usually ships in 7-10 business days
13	0800-175000	SENSOR,AIR TEMP.&PRESSURE	Usually ships in 7-10 business days
14	0010-090005-0010	BOLT M6Ã—16	Usually ships in 7-10 business days
15	0800-176000	OXYGEN SENSOR	Usually ships in 7-10 business days
16	0800-174000-3000	ECU	Usually ships in 7-10 business days
17	0800-173003	SEAL COVER	Usually ships in 7-10 business days
