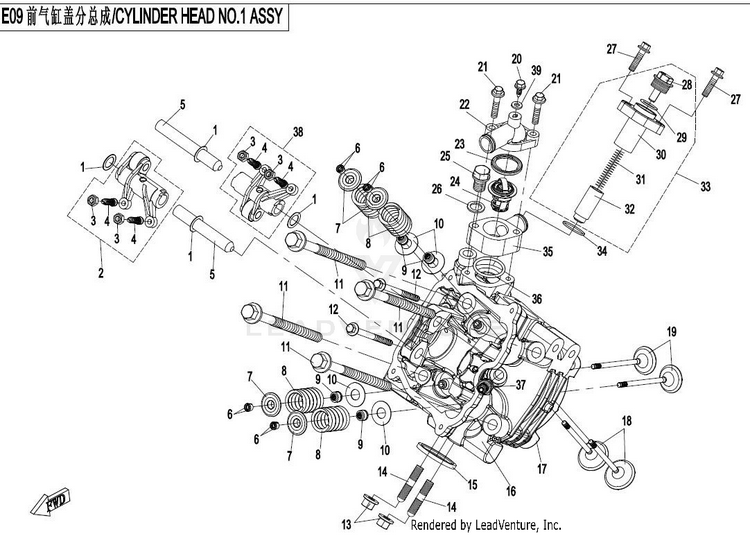

CYL HEAD NO.1 ASSY (STARTER END)

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10800-022002WASHER 12.3×18.5×0.5
8 In-Stock
20800-022600-1000ROCKER ARM ,EXHAUST
Usually ships in 7-10 business days
30800-022506ADJUST NUT
Usually ships in 7-10 business days
40800-022510ADJUST SCREW
Usually ships in 7-10 business days
50800-022001SHAFT, ROCKER ARM
Usually ships in 7-10 business days
60800-022016LOCK CLIP, VALVE
Usually ships in 7-10 business days
70800-022007UPPER SEAT, VALVE
Usually ships in 7-10 business days
80800-022006-10001

(replaces part #
0800-022006-10000)

SPRING, VALVE
Usually ships in 7-10 business days
90010-022500-10000SEAL RING, VALVE STEM
10+ In-Stock
100800-022008LOWER SEAT, VALVE
Usually ships in 7-10 business days
110800-022003-00001BOLT, CYLINDER
Usually ships in 7-10 business days
120800-022009-00001BOLT M6X80
Usually ships in 7-10 business days
138010-020001NUT
10+ In-Stock
140180-022003-00002

(replaces part #
0180-022003-0010)

STUD
Usually ships in 7-10 business days
150800-022300GASKET, EXHAUST PIPE
4 In-Stock
160800-022000-20000CYLINDER HEAD ASSY.
Usually ships in 7-10 business days
170800-022200-00002GASKET, CYLINDER HEAD
3 In-Stock
180800-022004VALVE, INTAKE
Usually ships in 7-10 business days
190800-022005VALVE, EXHAUST
Usually ships in 7-10 business days
2030132-480130030TAPPING SCREW ST4.8×13
10+ In-Stock
210180-013208-0010BOLT M6×45
Usually ships in 7-10 business days
220800-022013-10000THERMOSTAT CAP
Usually ships in 7-10 business days
230010-022802SEAL RING
4 In-Stock
240800-022700THERMOSTAT
2 In-Stock
250800-022015-00001SCREW PLUG M12x1.6
Usually ships in 7-10 business days
260800-022014WASHER 12.2×18×1.5
Usually ships in 7-10 business days
270010-021017-0010BOLT M6×25
10+ In-Stock
280800-022402SCREW PLUG, TENSIONER
Usually ships in 7-10 business days
290800-022407O-RING
Usually ships in 7-10 business days
30080V-022400-1200

(replaces part #
0800-022401)

TENSIONER
Usually ships in 7-10 business days
310800-022405SPRING, CHAIN TENSIONER
Usually ships in 7-10 business days
320800-022410PLUNGER, CHAIN TENSIONER
Usually ships in 7-10 business days
33080V-022400-1200

(replaces part #
0800-022400-10000)

TENSIONER
Usually ships in 7-10 business days
340800-022017SEAL RING, TENSIONER
Usually ships in 7-10 business days
350800-022012SEAT, THERMOSTAT
Usually ships in 7-10 business days
3630502-028000NO-RING 28×2.65
2 In-Stock
370800-022800SPARK PLUG
6 In-Stock
380800-022500-1000ROCKER ARM, INTAKE
Usually ships in 7-10 business days
390800-022011-00001

(replaces part #
0800-022011)

WASHER 5.3×11×15
6 In-Stock
