2017 CFMOTO CFORCE 800 Rear Plastics OEM Parts Diagram

Submodel CFORCE 800 CF800-2 2017 Crystal Orange

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

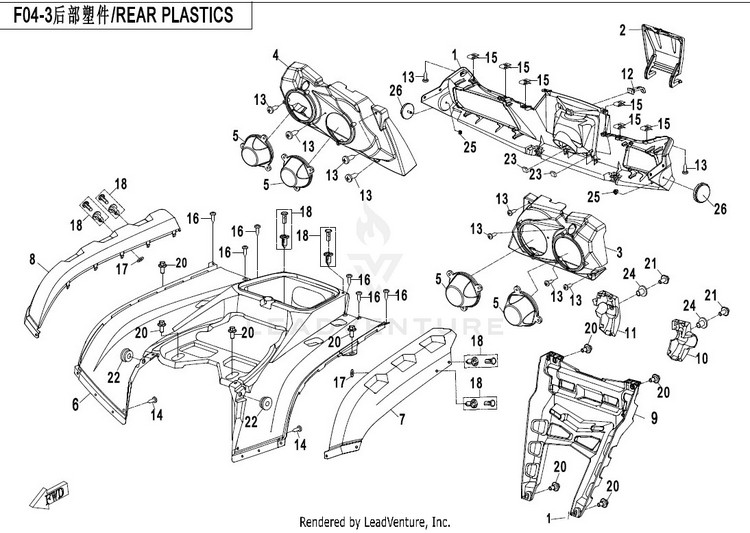

REAR PLASTICS

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17020-040311-10000TAIL LIGHT PANEL
Usually ships in 7-10 business days
27020-040312-0Y60COVER, FUEL TANK FILLER | CRYSTAL ORANGE
Usually ships in 7-10 business days
37020-040313-1000GUARD, LEFT TAIL LIGHT
Usually ships in 7-10 business days
47020-040314-1000GUARD, RIGHT TAIL LIGHT
Usually ships in 7-10 business days
57020-040316-1000CAP, TAIL LIGHT
Usually ships in 7-10 business days
67020-040301-0Y60REAR FENDER | CRYSTAL ORANGE
Usually ships in 7-10 business days
77020-040302DECORATION COVER, LH
Usually ships in 7-10 business days
87020-040303DECORATION COVER, RH
Usually ships in 7-10 business days
97020-040304REAR DECORATION COVER
Usually ships in 7-10 business days
107020-040305REAR RUBBER BLOCK ,LH
Usually ships in 7-10 business days
117020-040306REAR RUBBER BLOCK ,RH
Usually ships in 7-10 business days
127020-040315RUBBER STRAP
Usually ships in 7-10 business days
1330110-420160010TAPPING SCREW
5 In-Stock
1430110-480160010TAPPING SCREW ST4.8X16
10+ In-Stock
158010-000002CLAMP ST4.2
10+ In-Stock
1630110-421130010SELF TAPPING SCREW
10+ In-Stock
1730306-080112WASHER
6 In-Stock
189060-040310PUSH RIVET
10+ In-Stock
208010-000004BOLT M6×14
10+ In-Stock
2130006-060020870BOLT M6x20
Usually ships in 7-10 business days
220180-015003RUBBER COLLAR
Usually ships in 7-10 business days
238030-190004DAMPER, REAR FOOTREST
Usually ships in 7-10 business days
247020-040370T-COLLAR
Usually ships in 7-10 business days
2530204-060810NUT M6
10+ In-Stock
269DQV-160920-6001-M1

(replaces part #
5190-160220)

FRONT SIDE REFLECTOR | AMBER COLOR
Usually ships in 7-10 business days
453237020-040312-0RE00COVER, FUEL TANK FILLER | TRUE TIMBER CAMO
Usually ships in 7-10 business days
453247020-040312-0B50COVER, FUEL TANK FILLER | TITANIUM GREY
Usually ships in 7-10 business days
454447020-040301-0RE00REAR FENDER | TRUE TIMBER CAMO
Usually ships in 7-10 business days
454457020-040301-0B50REAR FENDER | TITANIUM GREY
Usually ships in 7-10 business days
