2017 CFMOTO CFORCE 800 Hydraulic Brake Assy OEM Parts Diagram

Submodel CFORCE 800 CF800-2 2017 Crystal Orange

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

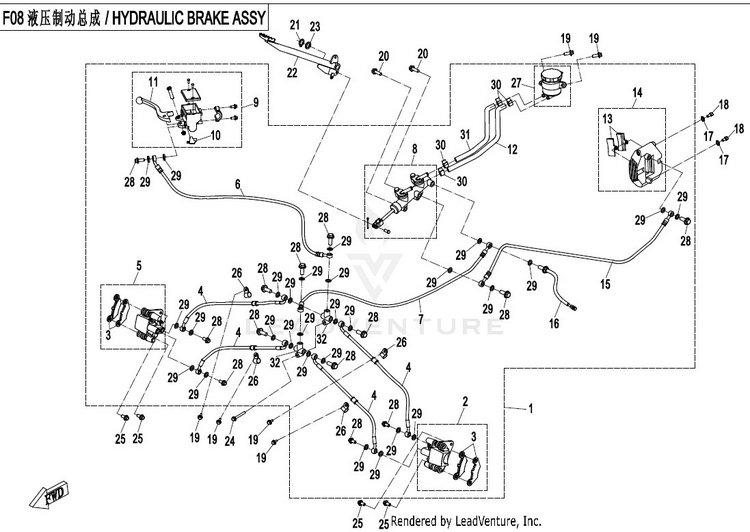

HYDRAULIC BRAKE ASSY

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
29010-080700LEFT CALIPER,FRONT BRAKE
Usually ships in 7-10 business days
39010-0808B0FRONT BRAKE PAD | SINTERED PAD
Usually ships in 7-10 business days
49010-080190FLUID HOSE, FRONT CALIPER
Usually ships in 7-10 business days
59010-080800RIGHT CALIPER,FRONT BRAKE
Usually ships in 7-10 business days
67020-080140FLUID HOSE, HAND BRAKE
Usually ships in 7-10 business days
77020-080130FLUID HOSE, FRONT BRAKE
Usually ships in 7-10 business days
87020-080110MASTER CYLINDER, PEDAL BRAKE
Usually ships in 7-10 business days
99010-080600FRONT BRAKE MASTER CYLINDER
Usually ships in 7-10 business days
109010-080609SWITCH, FRONT BRAKE
Usually ships in 7-10 business days
119010-080601FRONT BRAKE LEVER
Usually ships in 7-10 business days
127020-080103HOSE 1, FLUID RESERVOIR
Usually ships in 7-10 business days
139010-0805B0REAR BRAKE PAD,LH | SINTERED PAD
Usually ships in 7-10 business days
149010-080500REAR BRAKE CALIPER
Usually ships in 7-10 business days
157020-080120FLUID HOSE, REAR BRAKE
Usually ships in 7-10 business days
167020-080160-1000SWITCH,REAR BRAKE | SUMITOMO PLUG
Usually ships in 7-10 business days
1730300-100112WASHER
8 In-Stock
1830102-102020810SCREW M10×20
Usually ships in 7-10 business days
1930006-060012870BOLT M6x12
10+ In-Stock
2030006-080025810BOLT M8X25
Usually ships in 7-10 business days
2130801-01405RETAINER 14
Usually ships in 7-10 business days
227020-080210PEDAL, BRAKE
Usually ships in 7-10 business days
2330306-140112WASHER
Usually ships in 7-10 business days
2430006-060055810BOLT M6x55
Usually ships in 7-10 business days
2530006-080020810BOLT M8×20
10+ In-Stock
269010-080104CIRCLIP
Usually ships in 7-10 business days
277020-080150-1000RESERVOIR,BRAKE FLUID
Usually ships in 7-10 business days
289010-080101-B000BANJO BOLT
Usually ships in 7-10 business days
290010-060010WASHER 10
10+ In-Stock
309010-080405CLAMP
2 In-Stock
317020-080104HOSE 2, FLUID RESERVOIR
Usually ships in 7-10 business days
329010-080102T-JOINT
Usually ships in 7-10 business days
