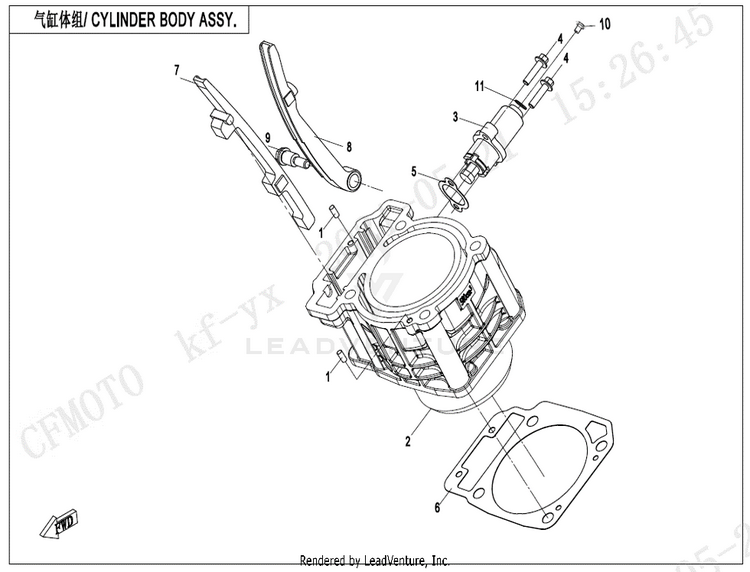

2022 CFMOTO CFORCE 600 Cylinder Body Assy. OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	30406-00500	ROLLER PIN P 5Ã—11.8 \| P5x11.8	Usually ships in 7-10 business days
2	0GS0-023100-10011	CYLINDER BODY ASSY , Mark 1 \| 1 GROUP	Usually ships in 7-10 business days
3	0GR0-023400-00001	TENSIONER	Usually ships in 7-10 business days
4	0010-021017-0010	BOLT M6Ã—25 \| M6x25	10+ In-Stock
5	0180-023003	GASKET, TENSIONER	4 In-Stock
6	0GR0-023001	GASKET,CYLINDER BODY	2 In-Stock
7	0GR0-023300	UPPER GUIDE, CHAIN	Usually ships in 7-10 business days
8	0GR0-023200	TENSIONER,CHAIN	Usually ships in 7-10 business days
9	0700-024008-00001	PIN SHAFT	Usually ships in 7-10 business days
10	0JYA-023001-00001	FLANGE BOLT M6x7	Usually ships in 7-10 business days
11	0700-011202	O-RING 8.2Ã—1.90 \| 8.2x1.90	Usually ships in 7-10 business days
45689	0GS0-023100-10021	CYLINDER BODY, Mark 2	Usually ships in 7-10 business days
