2022 CFMOTO CFORCE 600 Frame OEM Parts Diagram

Submodel CF600AU-3S CFORCE 600 2022 Pearl White

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

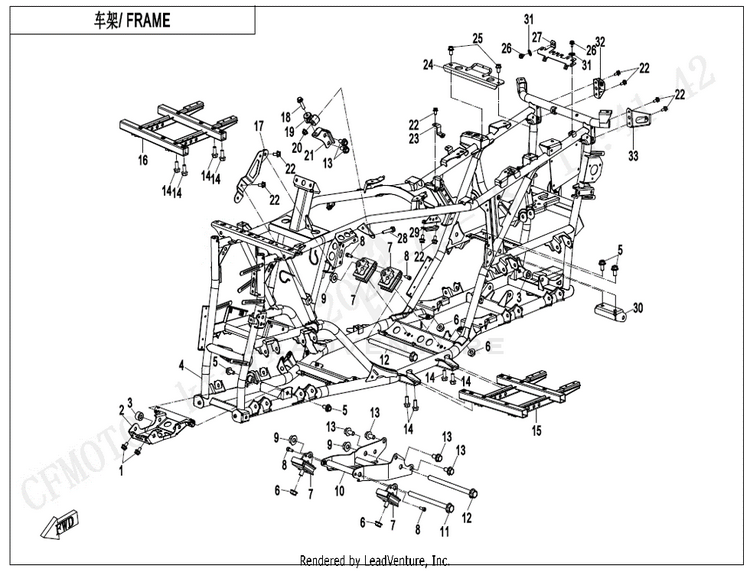

FRAME

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130006-080014810BOLT M8X14 | M8x14
10+ In-Stock
29DS#-030100-6001BRACKET, FRONT GEAR CASE
Usually ships in 7-10 business days
39AWA-030002BUSHING, FRONT AXLE
Usually ships in 7-10 business days
49DSV-031000-6K00-01FRAME ASSY
Usually ships in 7-10 business days
530006-102020810BOLT M10×1.25×20 | M10x1.25x20
10+ In-Stock
630204-102810NUT M10x1.25 | M10x1.25
10+ In-Stock
7401B-000200-10000ENGINE MOUNT
Usually ships in 7-10 business days
830102-060016810SCREW
10+ In-Stock
930204-122810NUT M12×1.25 | M12x1.25
10+ In-Stock
109CR6-001100-20000FRONT BRACKET, ENGINE
Usually ships in 7-10 business days
1130006-122170810BOLT | M12x1.25x170
Usually ships in 7-10 business days
1230006-122180810BOLT | M12x1.25x180
Usually ships in 7-10 business days
1330006-103020810BOLT | M10x20
Usually ships in 7-10 business days
1430006-080020810BOLT M8×20 | M8x20
10+ In-Stock
159DS#-030300-6001BRACKET, LH FOOTREST
Usually ships in 7-10 business days
169DS#-030400-6001BRACKET, RH FOOTREST
Usually ships in 7-10 business days
179DS#-030070-6000BRACKET, EPS CONTROLLER
Usually ships in 7-10 business days
1830006-080035810BOLT M8×35 | M8x35
6 In-Stock
197020-000160UPPER MOUNT,ENGINE
Usually ships in 7-10 business days
2030204-080810LOCK NUT | M8
10+ In-Stock
219DSV-030040-6002

(replaces part #
9DS#-030040-6001)

UPPER BRACKET, ENGINE
Usually ships in 7-10 business days
2230006-060012870BOLT M6x12 | M6x12
10+ In-Stock
239DR8-035070-20000CONNECTING BRACKET, AIR FILTER | ELECTROPHORESIS BLACK
Usually ships in 7-10 business days
249DS#-030020-6000BRACKET, FRONT SEAT
Usually ships in 7-10 business days
2530006-080016810BOLT M8X16 | M8x16
10+ In-Stock
2630006-060010810BOLT M6X10 | GB5789 M6x10 TRIVALENT CHROMIUM 8.8
Usually ships in 7-10 business days
279DSV-030081-6K00LOCKING PLATE 4, WIRE CONNECTOR
Usually ships in 7-10 business days
2830006-080040810BOLT | M8x40
Usually ships in 7-10 business days
299DS#-030091-6000PRESSING PLATE III, WIRE CONNNECTOR
Usually ships in 7-10 business days
309CRB-030010SUSPENSION BRACKET ASSY, REAR GEAR CASE
Usually ships in 7-10 business days
3130305-060112WASHER | 6
10+ In-Stock
329DS#-030504-6000RH BRACKET, REAR TRUNK
Usually ships in 7-10 business days
339DS#-030503-6000LH BRACKET, REAR TRUNK
Usually ships in 7-10 business days
