2022 CFMOTO CFORCE 600 Middle Plastics OEM Parts Diagram

Submodel CF600AU-3S CFORCE 600 2022 Pearl White

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

MIDDLE PLASTICS

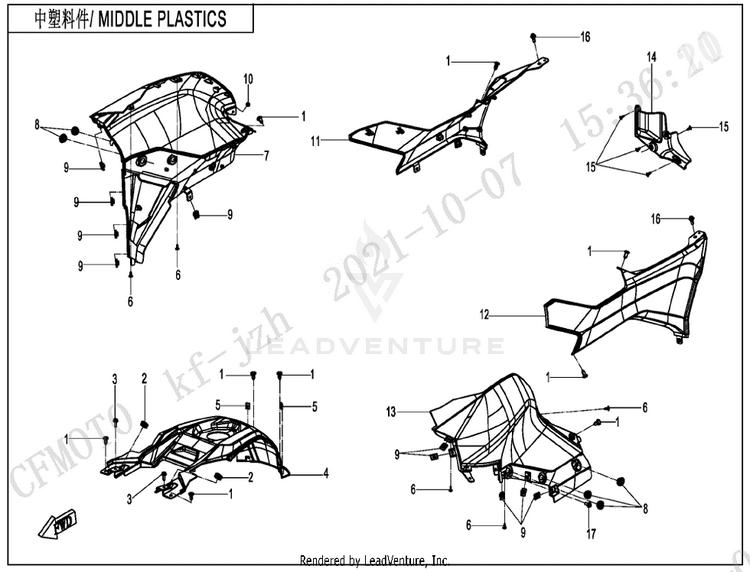

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
19060-040310PUSH RIVET
10+ In-Stock
2A000-040302RUBBER DAMPER
Usually ships in 7-10 business days
330006-060016870BOLT M6x16 | M6x16
10+ In-Stock
49DS#-042011-6002UPPER COVER, FUEL TANK
Usually ships in 7-10 business days
58010-000002CLAMP ST4.2 | ST4.2
10+ In-Stock
630110-421130010SELF TAPPING SCREW | ST4.2x13
10+ In-Stock
79DS#-042022-6001-0RH00RH SIDE COVER, Force Red | FROCE RED
Usually ships in 7-10 business days
79DS#-042022-6001-0HC00RH SIDE COVER, Velocity Grey | VELOCITY GREY
Usually ships in 7-10 business days
79DS#-042022-6001-0VE00RH SIDE COVER, Pearl White | NEBULA WHITE
Usually ships in 7-10 business days
79DS#-042022-6001-0RE00RH SIDE COVER, TT Camo | TRUE TIMBER CAMO
Usually ships in 7-10 business days
88080-040064DAMPER, FRONT FENDER
Usually ships in 7-10 business days
98030-040800-00001NUT CLIP M6 | M6
10+ In-Stock
1030110-421130010SELF TAPPING SCREW | ST4.2x13
10+ In-Stock
119DS#-042026-6001-0BU00DECO PLATE, RH SIDE COVER, Mist Silver Black | MIST SILVER BLACK
Usually ships in 7-10 business days
119DS#-042026-6001-0RE00DECO PLATE, RH SIDE COVER, TT Camo | TRUE TIMBER CAMO
Usually ships in 7-10 business days
129DS#-042025-6000-0BU00DECO PLATE, LH SIDE COVER, Mist Silver Black | MIST SILVER BLACK
Usually ships in 7-10 business days
129DS#-042025-6000-0RE00DECO PLATE, LH SIDE COVER, TT Camo | TRUE TIMBER CAMO
Usually ships in 7-10 business days
139DS#-042021-6000-0RH00LH SIDE COVER, Force Red | FROCE RED
Usually ships in 7-10 business days
139DS#-042021-6000-0VE00LH SIDE COVER, Pearl White | NEBULA WHITE
Usually ships in 7-10 business days
139DS#-042021-6000-0HC00LH SIDE COVER, VELOCITY GRAY | VELOCITY GREY
Usually ships in 7-10 business days
139DS#-042021-6000-0RE00LH SIDE COVER, TT CAMO | TRUE TIMBER CAMO
Usually ships in 7-10 business days
149DS#-042077-6001HEAT INSULATOR, TAIL LIGHT
Usually ships in 7-10 business days
1530110-421130010SELF TAPPING SCREW | ST4.2x13
10+ In-Stock
168010-000005-1000

(replaces part #
8010-000005)

BOLT M6X17 | M6x17
5 In-Stock
1730006-060012870BOLT M6x12 | M6x12
10+ In-Stock
