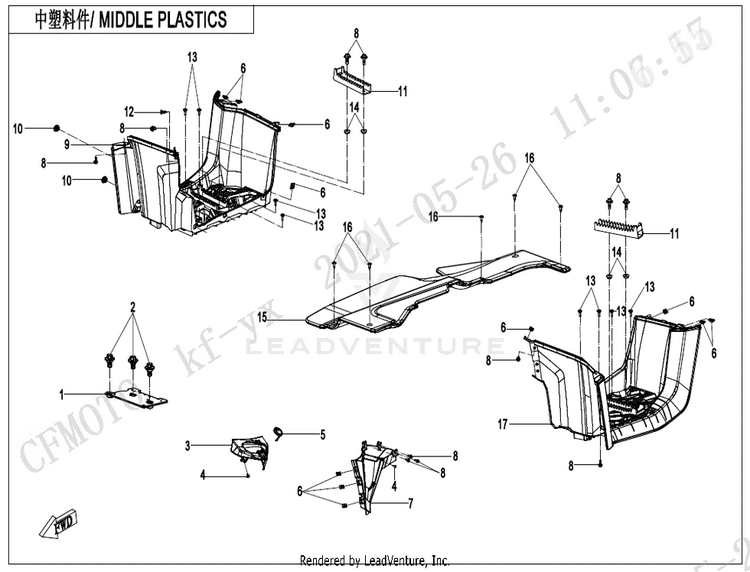

2022 CFMOTO CFORCE 600 Middle Plastics(With Gearshift Lock) OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	9DSV-042078-6K00	ECU BRACKET	Usually ships in 7-10 business days
2	8010-000004	BOLT M6Ã—14 \| M6x14	10+ In-Stock
3	9DSV-042023-6001	GEARSHIFT COVER	Usually ships in 7-10 business days
4	30110-421130010	SELF TAPPING SCREW \| ST4.2x13	10+ In-Stock
5	9DSV-042027-6000	LOCK COVER	Usually ships in 7-10 business days
6	8030-040800-00001	NUT CLIP M6 \| M6	10+ In-Stock
7	9DSV-042061-6002	LH LOWER SIDE COVER	Usually ships in 7-10 business days
8	30006-060016870	BOLT M6x16 \| M6x16	10+ In-Stock
9	9DS#-042032-6002	RH FOOTREST	Usually ships in 7-10 business days
10	8080-040064	DAMPER, FRONT FENDER	Usually ships in 7-10 business days
11	9CR6-042040-20000	ANTI SKID ASSY	Usually ships in 7-10 business days
12	9060-040310	PUSH RIVET	10+ In-Stock
13	5HY#-040001-1000	BOLT M6x14	10+ In-Stock
14	30204-060810	NUT M6 \| M6	10+ In-Stock
15	9DS#-042079-6001	HEAT INSULATOR, FUEL TANK LOWER PANEL	Usually ships in 7-10 business days
16	30110-420095010	TAPPING SCREW ST4.2x9.5 \| ST4.2x9.5	5 In-Stock
17	9DS#-042031-6002	LH FOOTREST	Usually ships in 7-10 business days
