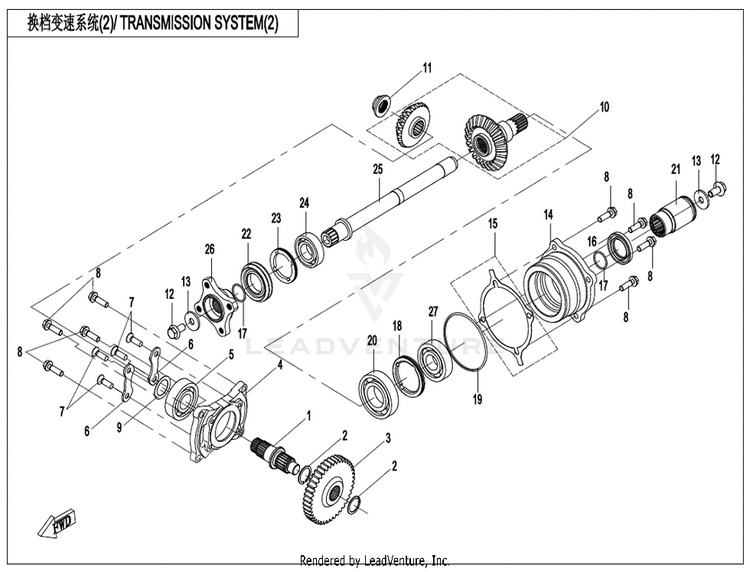

2022 CFMOTO CFORCE 600 Transmission System(2) OEM Parts Diagram

Submodel CF600AU-3S CFORCE 600 2022 Pearl White

Shop Aftermarket Parts

TRANSMISSION SYSTEM(2)

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0180-062101	DRIVE BEVEL GEAR SHAFT	Usually ships in 7-10 business days
2	0180-061007-0050	RETAINER 25 \| 25	Usually ships in 7-10 business days
3	0180-062102-00001	OUTPUT DRIVEN GEAR	Usually ships in 7-10 business days
4	0180-062103-10000	BEARING SEAT,DRIVE BEVEL GEAR	Usually ships in 7-10 business days
5	30499-02501	BALL BEARING 6305 \| 25	Usually ships in 7-10 business days
6	0180-062104-0010	LIMITATOR, BEARING	Usually ships in 7-10 business days
7	30124-080025810	SCREW M8Ã—25 \| M8x25	Usually ships in 7-10 business days
8	0JYA-062104	BOLT \| M8x28	Usually ships in 7-10 business days
9	0180-062105-0004	SHIM WASHER, DRIVE SHAFT GEAR \| t=0.35	Usually ships in 7-10 business days
9	0180-062105-0001	ADJUST SHIM \| T=0.2	Usually ships in 7-10 business days
9	0180-062105	ADJUST SHIM, DRIVE BEVEL GEAR \| T=0.15	Usually ships in 7-10 business days
9	0180-062105-0002	ADJUST SHIM \| T=0.25	Usually ships in 7-10 business days
9	0180-062105-0003	SHIM WASHER \| t=0.3	Usually ships in 7-10 business days
10	0GR0-0622A0-10001	BEVEL GEAR ASSY.	Usually ships in 7-10 business days
11	0180-062107-00001	LOCK NUT, BEVEL GEAR	Usually ships in 7-10 business days
12	0JWA-060002-00001	BOLT M10x1.25x30	Usually ships in 7-10 business days
13	0GR0-062204	WASHER10Ã—27.5Ã—4 \| 10x27.5x4	Usually ships in 7-10 business days
14	0800-062202-10002 (replaces part # 0800-062202-10001)	DRIVEN BEVEL GEAR BEARING HOUSING	Usually ships in 7-10 business days
15	0800-062203	ADJUST SHIM, DRIVEN BEVEL GEAR \| T=0.1	Usually ships in 7-10 business days
15	0800-062203-0003	SHIM, DRIVEN BEVEL GEAR \| T=0.4	Usually ships in 7-10 business days
15	0800-062203-0001	SHIM, DRIVEN BEVEL GEAR \| T=0.2	Usually ships in 7-10 business days
15	0800-062203-0004	SHIM, DRIVEN BEVEL GEAR \| T=0.5	Usually ships in 7-10 business days
15	0800-062203-0002	SHIM, DRIVEN BEVEL GEAR \| T=0.3	Usually ships in 7-10 business days
16	0800-062204	OIL SEAL 35Ã—50Ã—7 \| 35x50x7	6 In-Stock
17	0800-062205	O-RING 25Ã—2 \| 25x2	5 In-Stock
18	0800-062206	STOPPER NUT, BEARING	Usually ships in 7-10 business days
19	0180-062205	O-RING 88Ã—2.5 \| 88x2.5	Usually ships in 7-10 business days
20	30400-03500	BALL BEARING 6207c3 \| 35	Usually ships in 7-10 business days
21	9CR6-300201-10000	DRIVE SLEEVE, ENGINE	Usually ships in 7-10 business days
22	0JWA-062302-00001 (replaces part # 0JWA-062302)	OIL SEAL \| 35x61x9	4 In-Stock
23	0180-060008	RETAINER, BEARING	Usually ships in 7-10 business days
24	30400-02501	BALL BEARING 6025 \| 25	Usually ships in 7-10 business days
24	30400-02501?	BALL BEARING 6025 \| 25	Usually ships in 7-10 business days
25	0GR0-062301-10001	FRONT OUTPUT SHAFT ASSY	Usually ships in 7-10 business days
26	0GR0-060003	COUPLER	Usually ships in 7-10 business days
27	30400-02502	BEARING,BALL \| CHINA	Usually ships in 7-10 business days
