2022 CFMOTO CFORCE 600 Cylinder Head Assy. OEM Parts Diagram

Submodel CF600AU-3S CFORCE 600 2022 Force Red

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

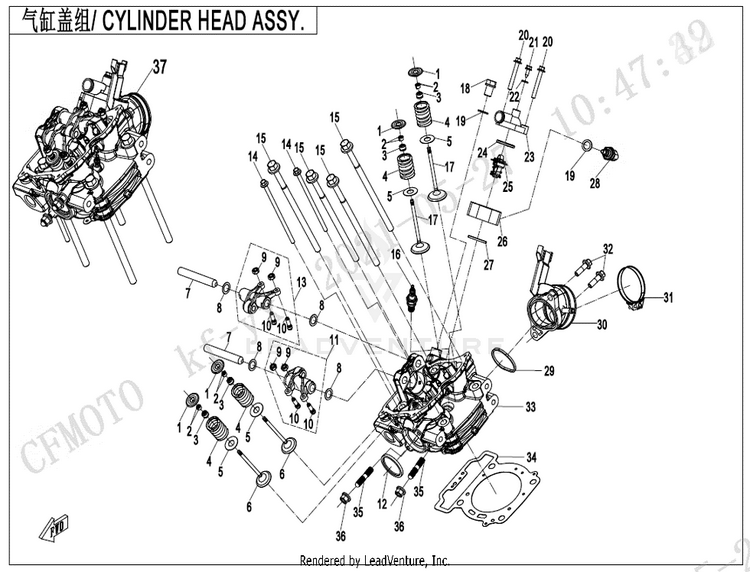

CYLINDER HEAD ASSY.

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10800-022007UPPER SEAT, VALVE
Usually ships in 7-10 business days
20800-022016LOCK CLIP, VALVE
Usually ships in 7-10 business days
30010-022500-10000SEAL RING, VALVE STEM
10+ In-Stock
40800-022006-10001

(replaces part #
0800-022006-10000)

SPRING, VALVE
Usually ships in 7-10 business days
50800-022008LOWER SEAT, VALVE
Usually ships in 7-10 business days
60800-022005VALVE, EXHAUST
Usually ships in 7-10 business days
70800-022001SHAFT, ROCKER ARM
Usually ships in 7-10 business days
80800-022002WASHER 12.3×18.5×0.5 | 12.3x18.5x0.5
8 In-Stock
90800-022506ADJUST NUT
Usually ships in 7-10 business days
100800-022510ADJUST SCREW
Usually ships in 7-10 business days
110800-022600-20000ROCKER ARM ASSY. EXHAUST
Usually ships in 7-10 business days
120800-022300GASKET, EXHAUST PIPE
4 In-Stock
130800-022500-20000ROCKER ARM ASSY. INTAKE
Usually ships in 7-10 business days
140GR0-022002-00001BOLT M6X132 | M6x132
Usually ships in 7-10 business days
150GR0-022001-10000BOLT,CYLINDER
Usually ships in 7-10 business days
160800-022800SPARK PLUG
6 In-Stock
170800-022004VALVE, INTAKE
Usually ships in 7-10 business days
180800-022015-00001SCREW PLUG M12x1.6
Usually ships in 7-10 business days
190800-022014WASHER 12.2×18×1.5 | 12.2x18x1.5
Usually ships in 7-10 business days
200180-013208-0010BOLT M6×45 | M6x45
Usually ships in 7-10 business days
210JWV-022102-2000

(replaces part #
30132-550160030)

SCREW ST5.5x16 | ST5.5x16
Usually ships in 7-10 business days
220800-022011-00001

(replaces part #
0800-022011)

WASHER 5.3×11×15 | 5.3x11x1.5
6 In-Stock
230800-022013-10000THERMOSTAT CAP
Usually ships in 7-10 business days
240010-022802SEAL RING
4 In-Stock
250800-022700THERMOSTAT
2 In-Stock
260GR0-022003SEAT, THERMOSTAT
Usually ships in 7-10 business days
2730502-028000NO-RING 28×2.65 | 28x2.65
2 In-Stock
28018B-022810WATER TEMPERATURE SENSOR
Usually ships in 7-10 business days
29080V-025002-1000SEAL RING, MANIFOLD
2 In-Stock
300GR0-022900INJECTOR SEAT | NO EVAP ONLY
Usually ships in 7-10 business days
300GR0-022900-10000FUEL INJECTOR SEAT | WITH EVAP ONLY
Usually ships in 7-10 business days
3101A0-110005CLAMP
Usually ships in 7-10 business days
320130-011114-00001BOLT | M8x25
Usually ships in 7-10 business days
340800-022200-00002GASKET, CYLINDER HEAD
3 In-Stock
350180-022003-00002

(replaces part #
0180-022003-00001)

STUD
Usually ships in 7-10 business days
368010-020001NUT | M8
10+ In-Stock
370GS0-022000-10001CYLINDER HEAD ASSY.(WITHOUT FUEL VAPORIZATION SYST
Usually ships in 7-10 business days
37.010GS0-0220A0-10001CYLINDER HEAD ASSY.(WITH FUEL VAPORIZATION SYSTEM)
Usually ships in 7-10 business days
