2022 CFMOTO CFORCE 600 Front Suspension OEM Parts Diagram

Submodel CF600AU-3S CFORCE 600 2022 Force Red

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT SUSPENSION

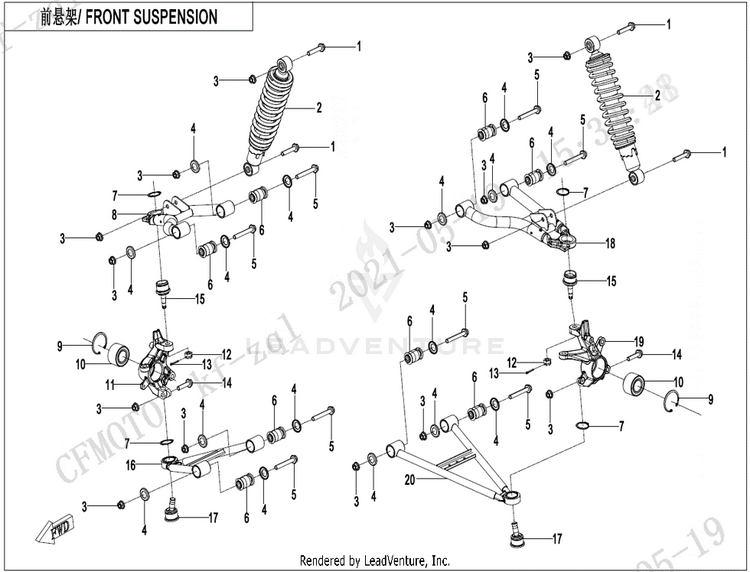

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130006-102055810BOLT M10X1.25X55 | M10x1.25x55
Usually ships in 7-10 business days
29DS#-050600-6000FRONT SHOCK ABSORBER ASSY.
Usually ships in 7-10 business days
330204-102810NUT M10x1.25 | M10x1.25
10+ In-Stock
49DSV-050900-6K00CAP, CUSHION SLEEVE
10+ In-Stock
530006-102070810BOLT | M10x1.25x70
10+ In-Stock
69010-050500BUFFERING COLLAR
Usually ships in 7-10 business days
730801-03405RETAINER 34 | 34
10+ In-Stock
89DSV-050310-6K01-0BP00

(replaces part #
9DSV-050310-6K01)

FRONT RH UPPER SWING
Usually ships in 7-10 business days
930800-05505RETAINER 55 | 55
10+ In-Stock
109GQ0-050710BEARING, HUB
4 In-Stock
119DSV-050801-6K00RH STEERING KNUCKLE
Usually ships in 7-10 business days
129010-100002NUT M10×1.25 | M10x1.25
10+ In-Stock
1330903-0201610COTTER PIN 2.0x16 | 2.0x16
10+ In-Stock
1430006-102045810BOLT | M10x1.25x45
Usually ships in 7-10 business days
159010-050700-1000TOP BALL PIN | CCVI
3 In-Stock
169DSV-050410-6K01-0BP00FRONT RH LOWER SWING ARM
Usually ships in 7-10 business days
179010-050800-20000BOTTOM BALL PIN
3 In-Stock
189DSV-050110-6K01-0BP00

(replaces part #
9DSV-050110-6K01)

FRONT LH UPPER SWING ARM
Usually ships in 7-10 business days
199DSV-050701-6K00LH STEERING KNUCKLE
Usually ships in 7-10 business days
209DSV-050210-6K01-0BP00

(replaces part #
9DSV-050210-6K01)

FRONT LH LOWER SWING ARM
Usually ships in 7-10 business days
