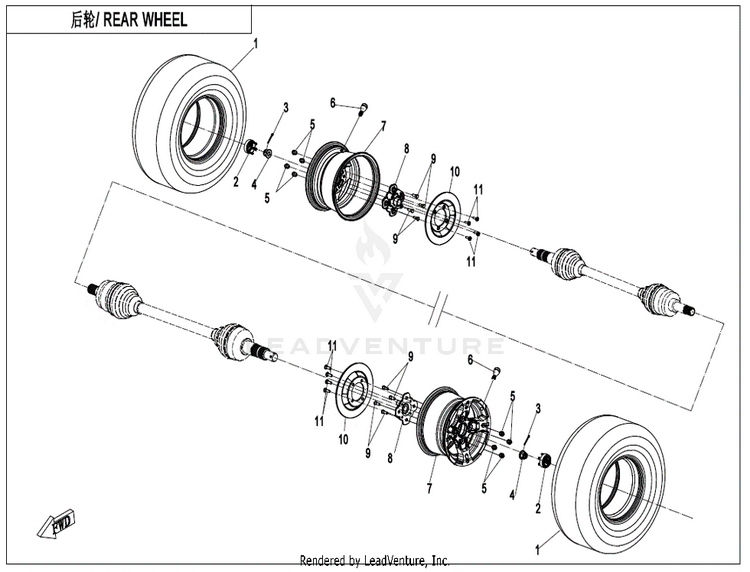

2022 CFMOTO CFORCE 600 Rear Wheel OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	30703-1213	REAR TIRE 25X10X12 INNOVA \| 25x10.0-12, INNOVA TIRE, OFF-ROAD, USA(DOT)	Usually ships in 7-10 business days
2	5ASV-070101-6001	DECO COVER, RIM	7 In-Stock
3	30903-0403610	COTTER PIN \| 40x36	10+ In-Stock
4	5HYV-110001-1F00 (replaces part # 5HY0-110001)	HEX FLANGE NUT	10+ In-Stock
5	9010-070002-A000	NUT, RIM \| CHROME PLATED	10+ In-Stock
6	5190-070030-1000	VALVE,INFLATION	Usually ships in 7-10 business days
7	9CSV-110100-6R00-11	REAR RIM, MATTE BLACK \| MATTE BLACK	Usually ships in 7-10 business days
7	5ASV-110100-5000	REAR RIM \| MATTE BLACK@REFLECTIVE	Usually ships in 7-10 business days
8	9AWV-110001-2B01	REAR WHEEL BRACKET	Usually ships in 7-10 business days
9	9010-070201	WHEEL STUD	10+ In-Stock
10	7020-080004-00001	REAR BRAKE DISC	Usually ships in 7-10 business days
11	A000-080001	SCREW	10+ In-Stock
