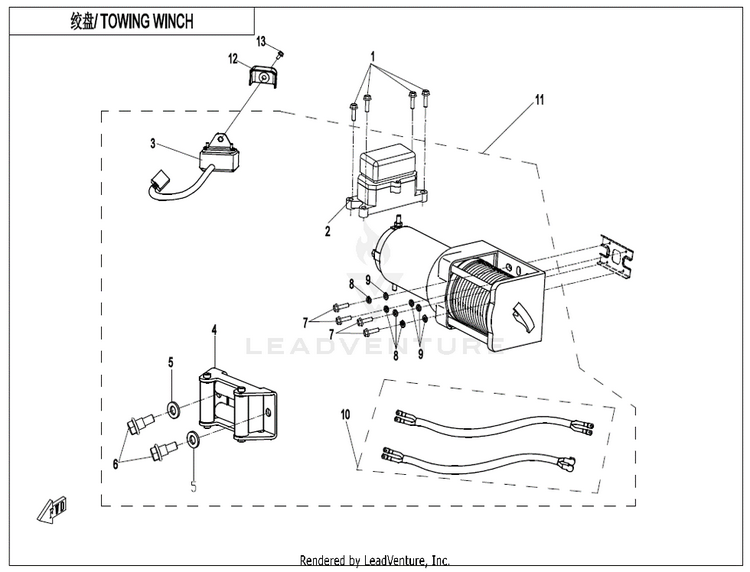

2022 CFMOTO CFORCE 600 Towing Winch OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	30006-060020870	BOLT M6x20 \| M6x20	Usually ships in 7-10 business days
2	9010-150720-4000	CONTROL RELAY \| LIANDA	Usually ships in 7-10 business days
3	7020-150710	SWITCH, WINCH	Usually ships in 7-10 business days
4	9030-150730	CABLE PULLEY	Usually ships in 7-10 business days
5	30303-100112	SPRING WASHER 10	Usually ships in 7-10 business days
6	30004-100025810	BOLT \| M10x25	Usually ships in 7-10 business days
7	30006-080020810	BOLT M8Ã—20 \| M8x20	10+ In-Stock
8	30304-080420	WASHER	Usually ships in 7-10 business days
9	30303-080112	WASHER \| 8	5 In-Stock
10	9DS#-150760-6001	WIRE HARNESS, WINCH	Usually ships in 7-10 business days
11	9DS#-150700-6001	WINCH ASSY \| 3000Lbs	Usually ships in 7-10 business days
12	9CR6-101002	DECO COVER, WINCH SWITCH	Usually ships in 7-10 business days
13	6KM#-040702-8000 (replaces part # A000-040702)	INNER HEX SCREW M6x12 \| M6x12	5 In-Stock
