2022 CFMOTO CFORCE 600 Left Crankcase Cover Assy. OEM Parts Diagram

Submodel CF600AU-3S CFORCE 600 2022 Force Red

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

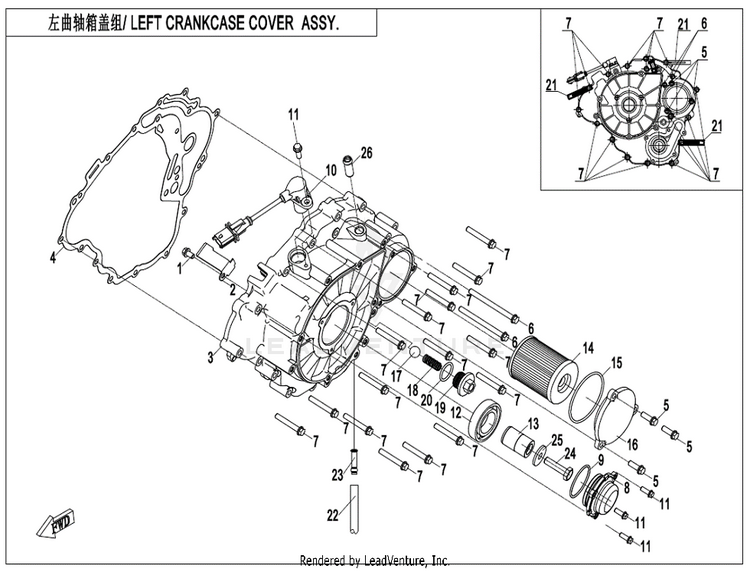

LEFT CRANKCASE COVER ASSY.

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10010-080010-00001BOLT | M6x10
Usually ships in 7-10 business days
20GR0-014005PLATE
Usually ships in 7-10 business days
30GR0-014001-10002

(replaces part #
0GR0-014001-10000)

COVER, LH CRANKCASE
Usually ships in 7-10 business days
40GR0-014002-10000STEEL GASKET, LH CRANKCASE COVER
Usually ships in 7-10 business days
50010-023008-00001

(replaces part #
0010-023008-0010)

BOLT | M6x18
10+ In-Stock
60A70-011005-00001BOLT M6x76
Usually ships in 7-10 business days
70010-013009-0010BOLT M6×40 | M6x40
Usually ships in 7-10 business days
80GRA-014001PLUG | SUZUKI RED
Usually ships in 7-10 business days
90GRA-014003O-RING 48X2.5
Usually ships in 7-10 business days
100800-014100CRANK POSITION SENSOR, WHITE CONNECTOR | ORDINARY
Usually ships in 7-10 business days
110010-090005-0010BOLT M6×16 | M6x16
Usually ships in 7-10 business days
1230400-02800BALL BEARING60/28
Usually ships in 7-10 business days
130GS#-014002-1002

(replaces part #
0GS#-014002-1001)

SHAFT BUSHING
Usually ships in 7-10 business days
140800-011300-0004FILTER, ENGINE OIL
10+ In-Stock
150800-014003O-RING 63×2.5 | 63x2.5
10+ In-Stock
160800-014002-00001FILTER CAP
2 In-Stock
173120015STEEL BALL
Usually ships in 7-10 business days
180700-012603-1000SPRING,RELIEF VALVE
Usually ships in 7-10 business days
190GR0-014003SCREW PLUG,DECOMPRESSOR
Usually ships in 7-10 business days
200180-332004O-RING 19×2.5 | 19x2.5
Usually ships in 7-10 business days
210180-014010WIRE CLAMP
Not Shipping
220800-014013OVERFLOW HOSE
Usually ships in 7-10 business days
2301A0-022102PIPE JOINT
Usually ships in 7-10 business days
240180-092001-00001BOLT M10x40
Usually ships in 7-10 business days
25018A-180004WASHER 10.2x28x3 | 10.2x28x3
Usually ships in 7-10 business days
260010-013006-0010JOINT, BREATHER HOSE
Usually ships in 7-10 business days
