2004 KTM 65 SX Brake Caliper Rear Formula OEM Parts Diagram

Submodel 65 SX Chassis & Engine - 2004

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

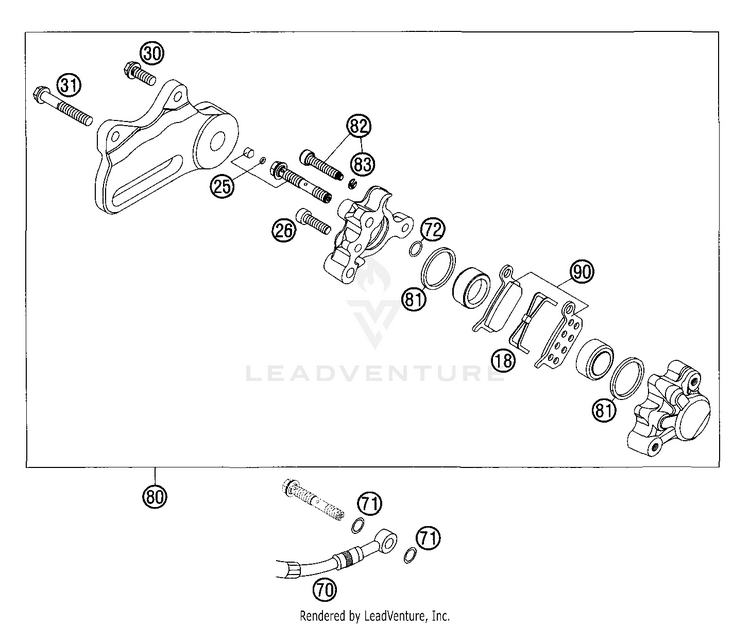

Brake Caliper Rear Formula

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1845113018000RETAINING SPRING 50 LC$18.58$15.7910+ In-Stock
2546113225000HOLLOW SCREW CPL.$29.47$25.0510+ In-Stock
260912050163AH SCREW DIN0912-M 5X16$1.99$1.6910+ In-Stock
300025060166

(replaces part #
0015060163)

HH collar screw M6x16 TX30$2.99$2.5410+ In-Stock
310025060406

(replaces part #
0015060403)

HH collar screw M6x40 TX30$3.99$3.3910+ In-Stock
7046113070000BRAKE HOSE REAR 65 SX 04$82.82$70.405 In-Stock
710770060019O-RING 6,00X1,00 FORMULA$2.99$2.5410+ In-Stock
720770080019O-RING 8,00X1,00 FORMULA$2.99$2.5410+ In-Stock
8046113080000BRAKE CALIPER REAR CPL.65SX 04$277.63$235.99Not Shipping
810770022020O-RING 22X2X2 EPDM$10.44$8.8710+ In-Stock
8245113125000AH SCREW+CIRCLIP LC 50 02$15.61$13.277 In-Stock
830799025000TAB WASHER DIN6799 RS2,5$1.99$1.6910+ In-Stock
9045113030000BRAKE PAD SET 50 LC 2002$42.78$36.3610+ In-Stock
