2004 KTM 65 SX Shifting Mechanism OEM Parts Diagram

Submodel 65 SX Chassis & Engine - 2004

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Shifting Mechanism

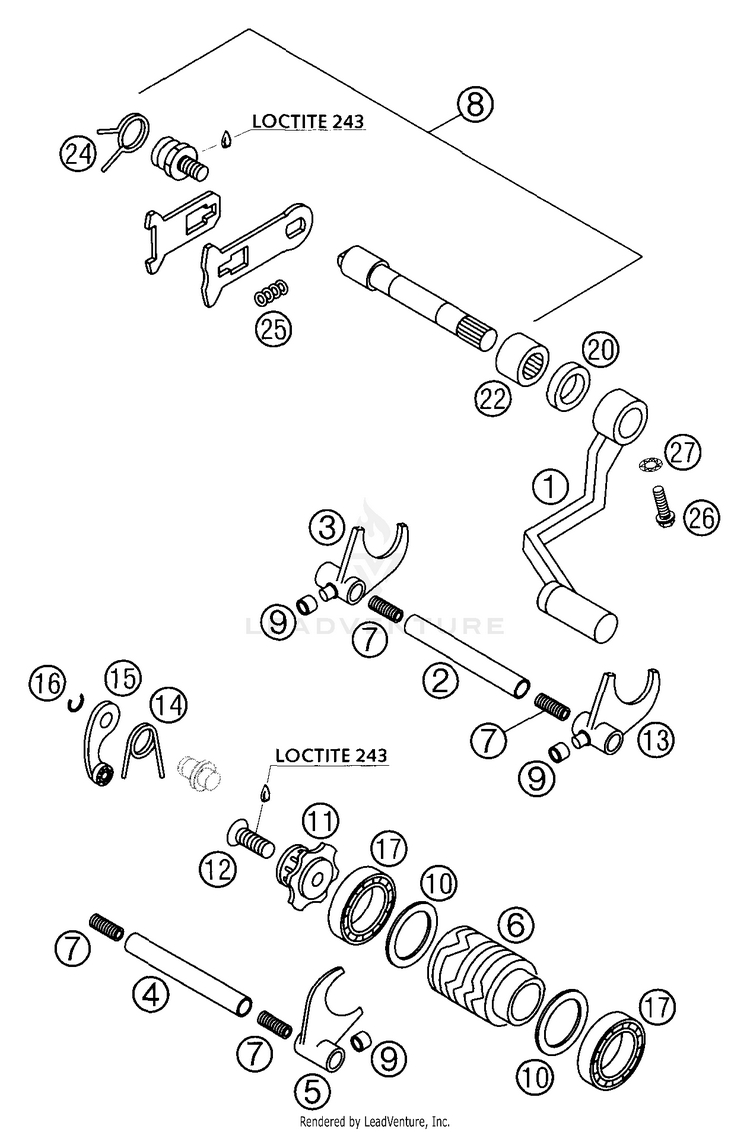

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146034031100SHIFT LEVER COL. 65 SX 2001$58.19$49.46Not Shipping
246034020100SHIFT RAIL 2001$9.69$8.72Not Shipping
346034002100SHIFT FORK COUNTERSHAFT R/S$63.09$53.63Not Shipping
446034019100SHIFT RAIL 10X72MM 2001$19.20$16.32Not Shipping
546034001100SHIFT FORK MAIN SHAFT 2001$61.69$52.44Not Shipping
646034012300SHIFT ROLLER 65 SX 2001$98.37$83.61Usually ships in 7-10 business days
746034019052SPRING SHIFT RAIL 2001$3.99$3.3910+ In-Stock
846034005044SHIFT SHAFT CPL.$107.89$91.71Not Shipping
950334018100SHIFTING ROLLER 6X8X5,2$4.99$4.2410+ In-Stock
1046034091100SPACER WASHER-SET 2001$3.14$2.83Not Shipping
1146034015100SHIFT DRUM LOCATING 60/65 2000$88.59$75.30Not Shipping
120991060303FLAT HEAD SCREW DIN7991-M 6X30$2.99$2.54Not Shipping
1346034002200SHIFT FORK COUNT. 2.3.GEAR$87.00$73.95Usually ships in 7-10 business days
1446034023100LOCKING LEVER SPRING 2001$2.99$2.5410+ In-Stock
1546034024100LOCKING LEVER CPL. 65 SX 2002$26.39$22.436 In-Stock
160799100000TAB WASHER DIN6799-RS10,0-$0.51Not Shipping
170625618050BALL BEARING 61805 C3$51.69$43.9410+ In-Stock
200760122050SHAFT SEAL RING 12X20X5 B$9.45$8.0310+ In-Stock
2246034027000NEEDLE BEARING 12X18X12 2002$9.45$8.0310+ In-Stock
2446034014000RETURN SPRING$6.15$5.236 In-Stock
2546034009000PRESSURE SPRING SLIDER PLATE$3.62$3.087 In-Stock
260025060206

(replaces part #
0015060203)

HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
270797060003TOOTH LOCK WASH. DIN6797-A 6,4$1.99$1.6910+ In-Stock
