2004 KTM 65 SX Front Fork Marzocchi Usd 35 OEM Parts Diagram

Submodel 65 SX Chassis & Engine - 2004

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Fork Marzocchi USD 35

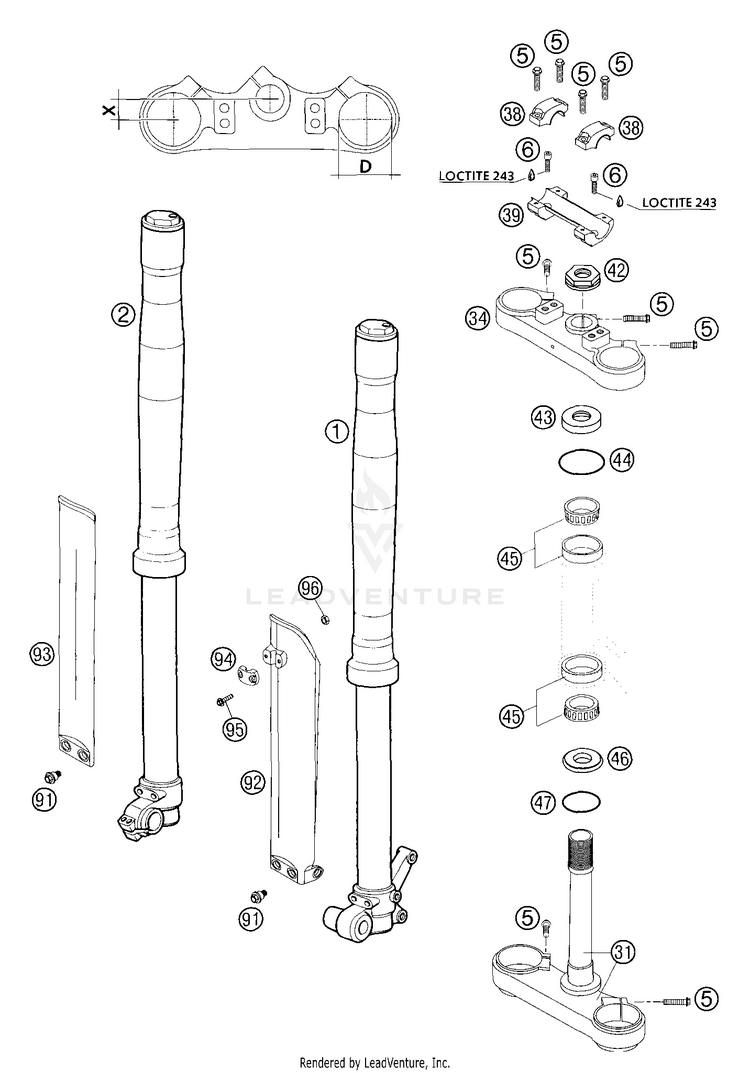

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17631210FGABELBEIN LINKS USD 35$504.51$428.83Usually ships in 7-10 business days
27631209FGABELBEIN RECHTS USD 35$504.51$428.83Usually ships in 7-10 business days
50025080306

(replaces part #
0015080303)

HH collar screw M8x30$3.62$3.0810+ In-Stock
60032100256S

(replaces part #
0912100250)

AH-COLLAR SCREW M10X25 ISA45$4.99$4.2410+ In-Stock
3177051116BOT.TRIPLE CLAMP + FORK TUBE$232.04$197.23Usually ships in 7-10 business days
347501478TOP TRIPLE CLAMP$132.29$112.451 In-Stock
3850301038000HANDLEBAR CLAMP D=22MM 2001$25.29$21.5010+ In-Stock
3959001039000HANDLEBAR SUPPORT 22MM 2T 2000$63.92$54.33Not Shipping
4259030029000HH NUT M20X1,5 WS=27 RIGHT$10.44$8.8710+ In-Stock
4349001086000COVERING CAP$7.91$6.7210+ In-Stock
440770021300O-RING 40,94X2,62 NBR70$3.99$3.3910+ In-Stock
4549001081000TAPERED ROLLER BEARING 32004X$49.60$42.1610+ In-Stock
4646001086000PROTECTION RING 20,1X39X5$10.11$8.5910+ In-Stock
470770360030O-RING 36,00X3,00 NBR$2.99$2.5410+ In-Stock
9159001092050SPECIAL SCREW M6X12,5 WS=8$2.99$2.5410+ In-Stock
9246101094000

(replaces part #
46101092000)

FORK PROTECTOR SET 65 SX$25.51$21.685 In-Stock
9346101094000

(replaces part #
46101093000)

FORK PROTECTOR SET 65 SX$25.51$21.685 In-Stock
9454601085000BRAKE HOSE CLAMP MARZOCCHI'95$4.83$4.119 In-Stock
950025050166

(replaces part #
0015050163)

HH collar screw M5x16 TX30$2.99$2.5410+ In-Stock
960985050003SELF LOCKING NUT DIN0985-M 5$2.99$2.5410+ In-Stock
