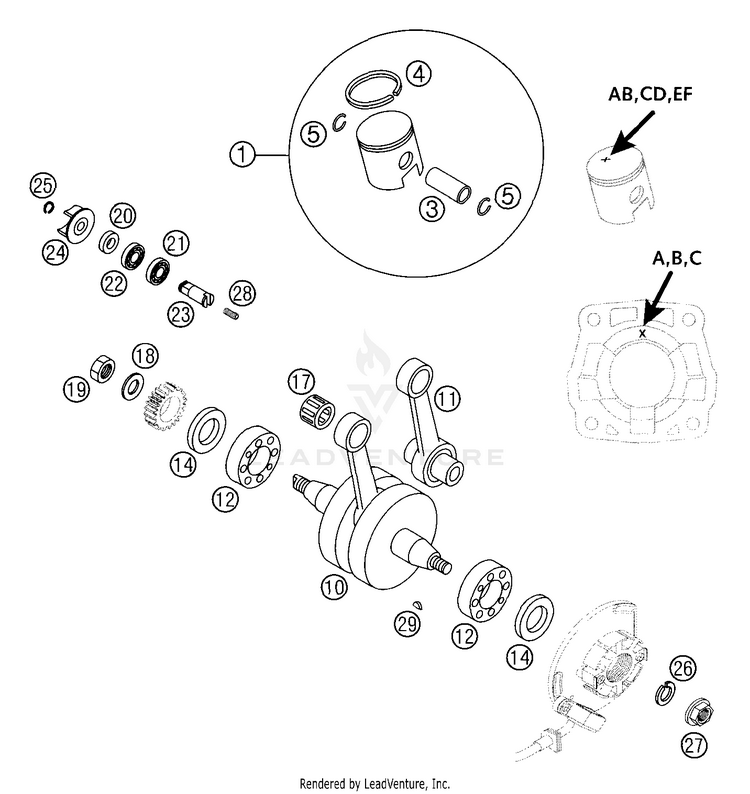

Crankshaft, Piston

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146030007500 CPISTON CPL. 45MM ''C/D'' 65'98$176.32$149.87Usually ships in 7-10 business days
146030007500 APISTON CPL. 45MM ''A/B'' 65'98$175.44$149.12Usually ships in 7-10 business days
146030007500 EPISTON CPL. 45MM ''E/F'' 65'98$149.03$126.68Not Shipping
346230033100

(replaces part #
46030033000)

Piston pin$16.60$14.119 In-Stock
446030030500PISTON RING 45MM 65CCM$55.98$47.5810+ In-Stock
546030074000CIRCLIP 12X1$2.99$2.5410+ In-Stock
1046030018200CRANKSHAFT CPL. STROKE 40,8$574.66$488.46Usually ships in 7-10 business days
1146030015100CONN.ROD REPAIR SET 65 SX 2003$276.66$235.16Usually ships in 7-10 business days
1246030082200GROOVED BALL BEAR.20X52X15 NTN$26.72$22.7110+ In-Stock
1447030076100SEAL SHAFT RING 20X35X6 BTSL$25.29$21.5010+ In-Stock
1746030034000NEEDLE BEAR.PISTONPIN 12X15X17$15.94$13.5510+ In-Stock
1846030078100LOCKING WASHER 14X20X1$3.29$2.80Not Shipping
1946030029100HH-NUT M14X1,25X5 '99$9.81$8.34Not Shipping
2046035056100SHAFT SEAL RING 10X18X4$10.35$8.80Not Shipping
2146035057000WATER PUMP BEARING 10X19X5$31.12$26.456 In-Stock
2246035058000WA.PU.BEAR. 10X19X5 DOUBLELIP$34.97$29.7210+ In-Stock
2345135054100

(replaces part #
45135054000)

WATER PUMP SHAFT 50 LC 2007$43.88$37.3010+ In-Stock
2446035055100WATER PUMP WHEEL 60/65 '99$12.97$11.0210+ In-Stock
250471090010CIRCLIP DIN0471- 9X1$2.99$2.5410+ In-Stock
2650230029012LOCKING RING VSK 12$2.99$2.5410+ In-Stock
2749030021100

(replaces part #
49030021000)

Collar nut, M12x1, right$2.99$2.5410+ In-Stock
2845135058000SPRING FOR WATER PUMP SHAFT 04$2.99$2.5410+ In-Stock
290888030050WOODRUFF KEY DIN6888-3X5X13$2.99$2.5410+ In-Stock
