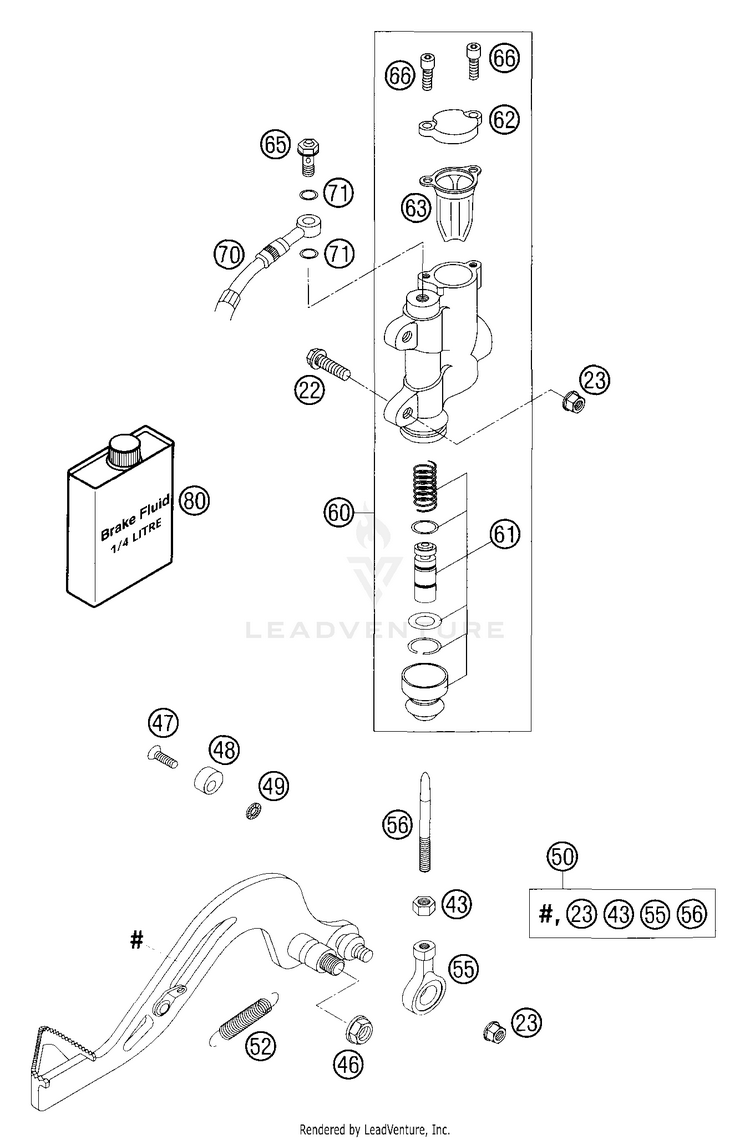

2004 KTM 65 SX Rear Brake Control OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
22	0025060206 (replaces part # 0015060203)	HH collar screw M6x20 TX30	$3.99	$3.39	10+ In-Stock
23	56509064100	SELF LOCKING NUT M6 10.9	$2.99	$2.54	10+ In-Stock
43	0934060003	hex nut DIN 934 M6	$1.99	$1.69	10+ In-Stock
46	54310086200	SELF LOCKING NUT M8 10.9	$3.99	$3.39	10+ In-Stock
47	0991060202 (replaces part # 0991060203)	FLAT HEAD DIN7991-M 6X20	$2.99	$2.54	10+ In-Stock
48	58303063000	BRAKE LEVER STOP '93	$7.03	$5.98	8 In-Stock
49	0797060003	TOOTH LOCK WASH. DIN6797-A 6,4	$1.99	$1.69	10+ In-Stock
50	46003060244	REAR BRAKELEVER CPL.60/65	$0.00	$0.00	Not Shipping
52	54603062200 (replaces part # 54603062000)	Return spring for brake lever	$7.69	$6.54	10+ In-Stock
55	54603069000	SWIVEL HEAD M6 FOOT BRAKE LEV.	$43.77	$37.20	10+ In-Stock
56	54603068000	PRESSURE ROD ALU 250 '90	$7.47	$6.35	10+ In-Stock
60	46113060000	REAR BRAKE CYL. 50+65 04	$178.96	$152.12	10+ In-Stock
61	47013061000	REP. SET PISTON REAR D=11 2003	$49.60	$42.16	10+ In-Stock
62	47013062000	CYLINDER COVER REAR 85 SX 03	$10.44	$8.87	10+ In-Stock
63	47013063000	GASKET CYLINDER COVER REAR 03	$12.64	$10.74	10+ In-Stock
65	46113325000	HOLLOW SCREW M6	$23.09	$19.63	1 In-Stock
66	0912040103	AH.SCREW DIN0912-M 4X10	$2.99	$2.54	10+ In-Stock
70	46113070000	BRAKE HOSE REAR 65 SX 04	$82.82	$70.40	5 In-Stock
71	0770060019	O-RING 6,00X1,00 FORMULA	$2.99	$2.54	10+ In-Stock
80	306054	BRAKE FLUID DOT 5.1 (1/4 LITRE)	-	$12.37	Not Shipping
