1977 Yamaha LB80 Electrical OEM Parts Diagram

Submodel LB80_3D - 1977

Shop Aftermarket Parts

ELECTRICAL

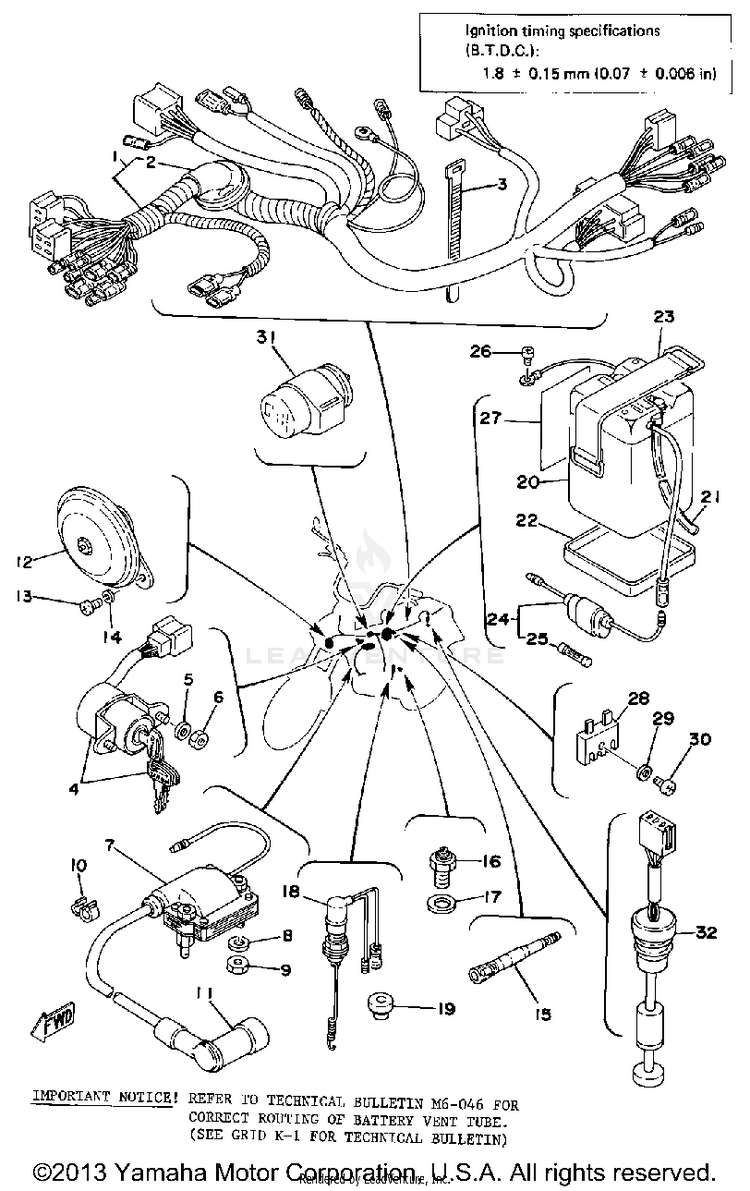

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-1M3-82310-40-00IGNITION COIL ASSEMBLY$51.88$40.47Usually ships in 7-10 business days
11T8-82590-60-00WIRE HARNESS ASSEMBLY$29.94$24.55Usually ships in 7-10 business days
21M3-82595-00-00GROMMET$1.22$1.10Usually ships in 7-10 business days
3437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
41T8-82508-60-00MAIN SWITCH ASSEMBLY$27.22$22.32Usually ships in 7-10 business days
592990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
695380-06800-00

(replaces part #
95303-06800-00)

NUT, CROWN$9.49$7.4010+ In-Stock
71M3-82310-30-00IGNITION COIL ASSEMBLY | U.R$63.14$49.25Usually ships in 7-10 business days
892990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
995380-06800-00

(replaces part #
95303-06800-00)

NUT, CROWN$9.49$7.4010+ In-Stock
1090468-15020-00CLIP$8.49$7.64Usually ships in 7-10 business days
1156J-82370-00-00PLUG CAP ASSY$70.99$55.372 In-Stock
122A7-83371-10-00HORN$50.99$41.80Not Shipping
1397885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
15517-81980-A0-00DIODE ASSY$25.99$21.31Usually ships in 7-10 business days
164GY-82540-10-00

(replaces part #
2H7-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
17296-82543-00-00

(replaces part #
341-82543-00-00)

GASKET$5.99$5.39Usually ships in 7-10 business days
181M3-82530-01-00STOP SWITCH ASSEMBLY$11.66$9.56Usually ships in 7-10 business days
1990480-12013-00GROMMET$9.49$7.403 In-Stock
206N4-2A200-00-00

(replaces part #
BTG-6N42A-20-00)

6N4-2A-2 GS BATTERY$17.49$13.73Not Shipping
2190445-084J0-00

(replaces part #
90445-08047-00)

PIPE$20.99$16.3710+ In-Stock
22583-24182-00-00DAMPER, LOCATING 2$10.99$8.573 In-Stock
2326L-82131-00-00

(replaces part #
122-82131-00-00)

BAND, BATTERY$8.49$6.627 In-Stock
2455K-82150-02-00

(replaces part #
55K-82150-01-00)

FUSE HOLDER ASSY$15.49$12.083 In-Stock
251A0-82151-00-00

(replaces part #
116-82151-00-00)

FUSE (12V-10A)$17.99$14.0310+ In-Stock
2698580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.405 In-Stock
2740A-82141-G0-00

(replaces part #
118-82141-09-00)

LABEL, BATTERY$0.85$0.76Not Shipping
28353-81970-M2-00

(replaces part #
353-81970-63-00)

RECTIFIER ASSY$21.99$17.152 In-Stock
2992990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
3098580-05020-00SCREW, PAN HEAD$1.55$1.356 In-Stock
31542-83350-60-00FLASHER RELAY ASSEMBLY$75.99$59.27Usually ships in 7-10 business days
321E7-85720-02-00OIL LVL GAUGE ASSEMBLY$15.04$12.33Usually ships in 7-10 business days
