1977 Yamaha LB80 Tail Lamp OEM Parts Diagram

Submodel LB80_3D - 1977

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

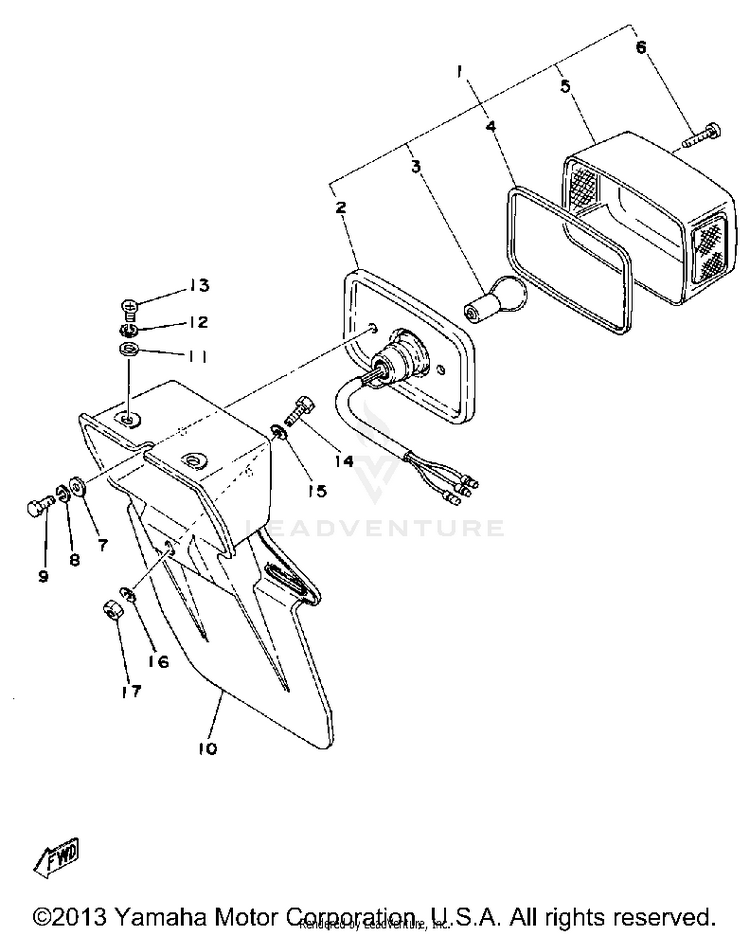

TAIL LAMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11M1-84510-60-00TAILLIGHT UNIT ASSEMBLY$179.99$140.39Not Shipping
21M1-84511-60-00BASE, TAILLIGHT$51.99$40.55Not Shipping
31M1-84514-60-XX

(replaces part #
1M1-84514-60-00)

BULB 6VP21/5W(17904)$4.80$4.13Not Shipping
41M1-84523-60-00GASKET, LENS$14.49$11.303 In-Stock
51M1-84521-60-00LENS, TAILLIGHT$43.99$34.315 In-Stock
65BF-8433E-00-00

(replaces part #
1M1-84524-60-00)

SCREW, ADJUSTING$8.49$6.6210+ In-Stock
790201-06095-00

(replaces part #
90201-06063-00)

WASHER, PLATE$9.49$7.407 In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
997017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
101T8-28189-00-00PLATE, NO SUPPORT$14.62$11.99Usually ships in 7-10 business days
1192990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1398507-06016-00

(replaces part #
98506-06016-00)

SCREW,PAN HEAD$3.48$2.9910+ In-Stock
1497017-06020-00

(replaces part #
97001-06018-00)

BOLT$4.06$3.4910+ In-Stock
1590201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1795380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
